| UB15SKG035F-JF | ||
|---|---|---|
|
|
||
|
||

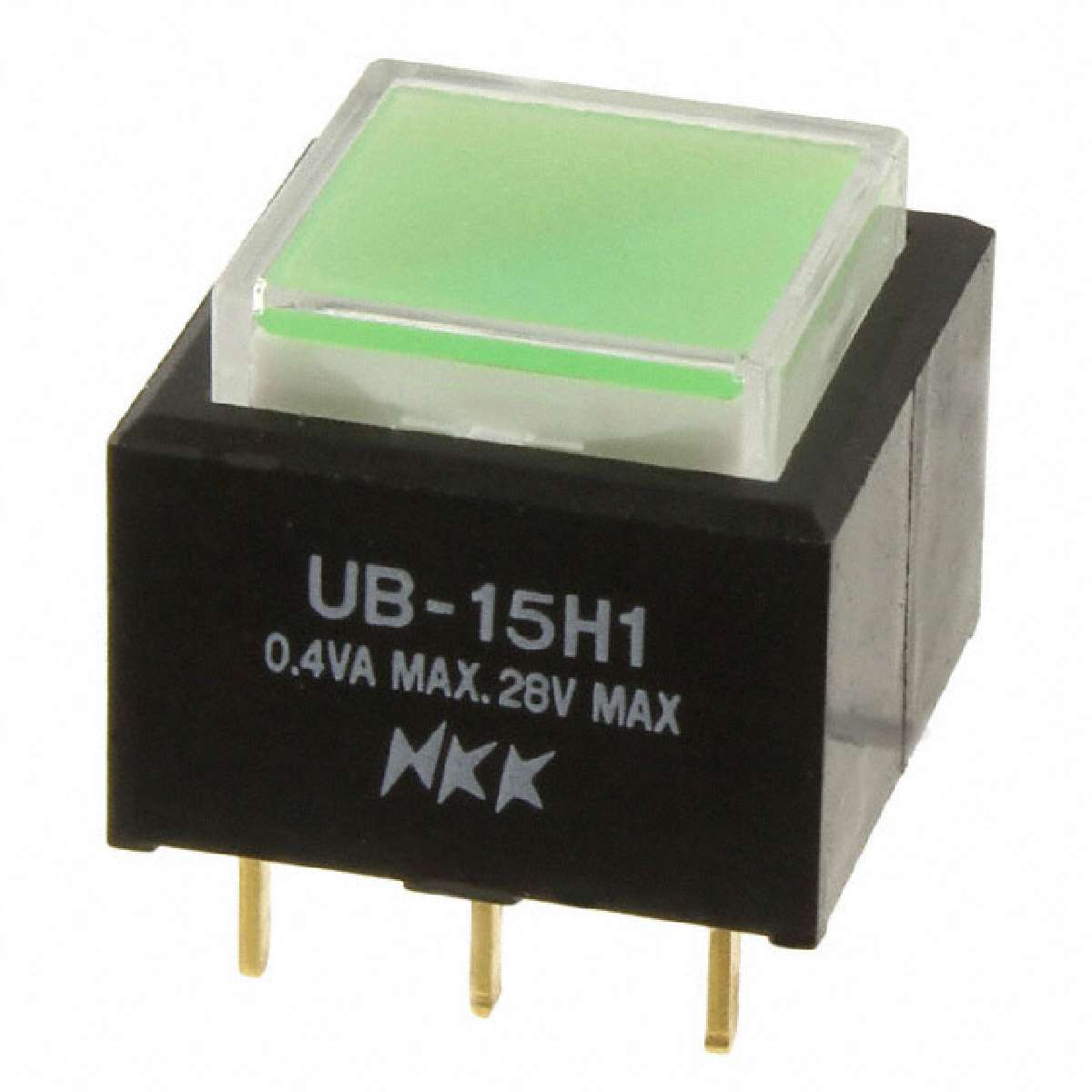

| Product description : UB Series SPDT On-Momentary Square Green LED Illuminated Pushbutton Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Illumination Voltage (Nominal) | 2.1 VDC |
|---|---|
| Actuator Type | Square, Button |
| Type | Standard, Illuminated |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Illumination Type, Color | LED, Green |
| Category | Switches |
| Color - Actuator/Cap | Clear (Green Filter/Diffuser) |
| Mechanical Life | 1,000,000 Cycles |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| ECCN | EAR99 |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Voltage Rating - AC | 28V |
| Voltage Rating - DC | 28V |
| Part Status | Active |
| Electrical Life | 200,000 Cycles |
| Manufacturer | NKK Switches |
| Series | UB |
| Family | Pushbutton Switches |
| Operating Temperature | -25°C ~ 50°C |
| Current Rating | 0.4VA (AC/DC) |
