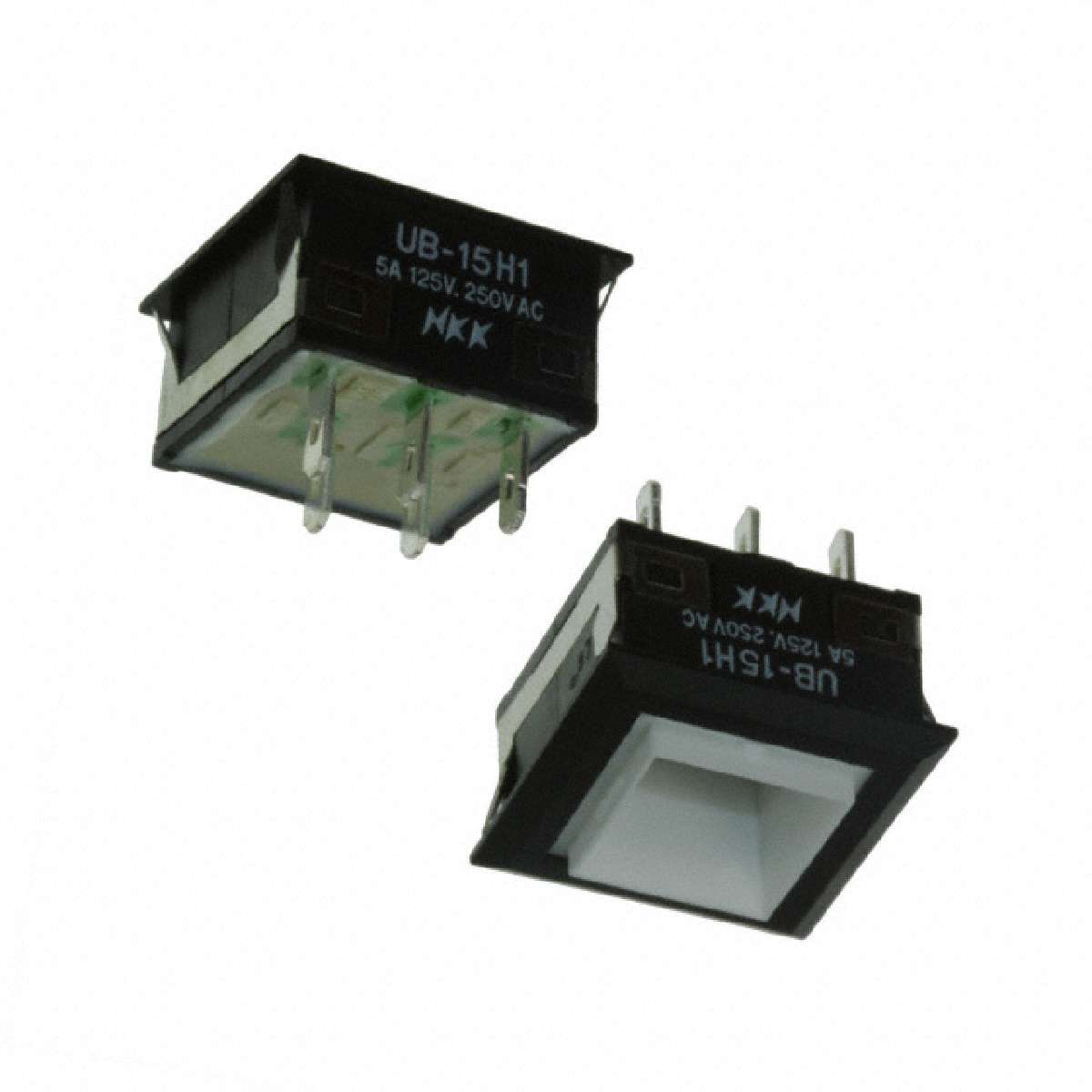

| UB15KKW015D | ||
|---|---|---|
|
|
||
|
||
| Product description : Switch: push-button; Pos: 2; SPDT; 5A/125VAC; ON-(ON); 200MΩ; UB | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Housing Material: | Polyamide, Glass Fiber Reinforced |
|---|---|
| Switch Function: | ON - (ON) |
| Manufacturer: | NKK Switches |
| Voltage Rating AC: | 250 V |
| Mounting Type: | Snap In |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Product Category: | Illuminated Pushbutton Switches |
| Current Rating: | 5 A |
| Illumination: | LED |
| Life: | 1000000 Cycles |
| Terminal Seal: | Epoxy |
| Actuator: | Without Cap |
| Features: | Button/cap ordered separately |
| Series: | UB15 |
| Contact Form: | SPDT |
| Brand: | NKK Switches |
| Termination Style: | Solder Lug |
| Flammability Rating: | UL 94 V-0 |
| Contact Plating: | Silver |
| Illumination Color: | Amber, Bright LED |
| Mounting Style: | Panel |
