| UB15KKW015C-CC | ||
|---|---|---|
|
|
||
|
||

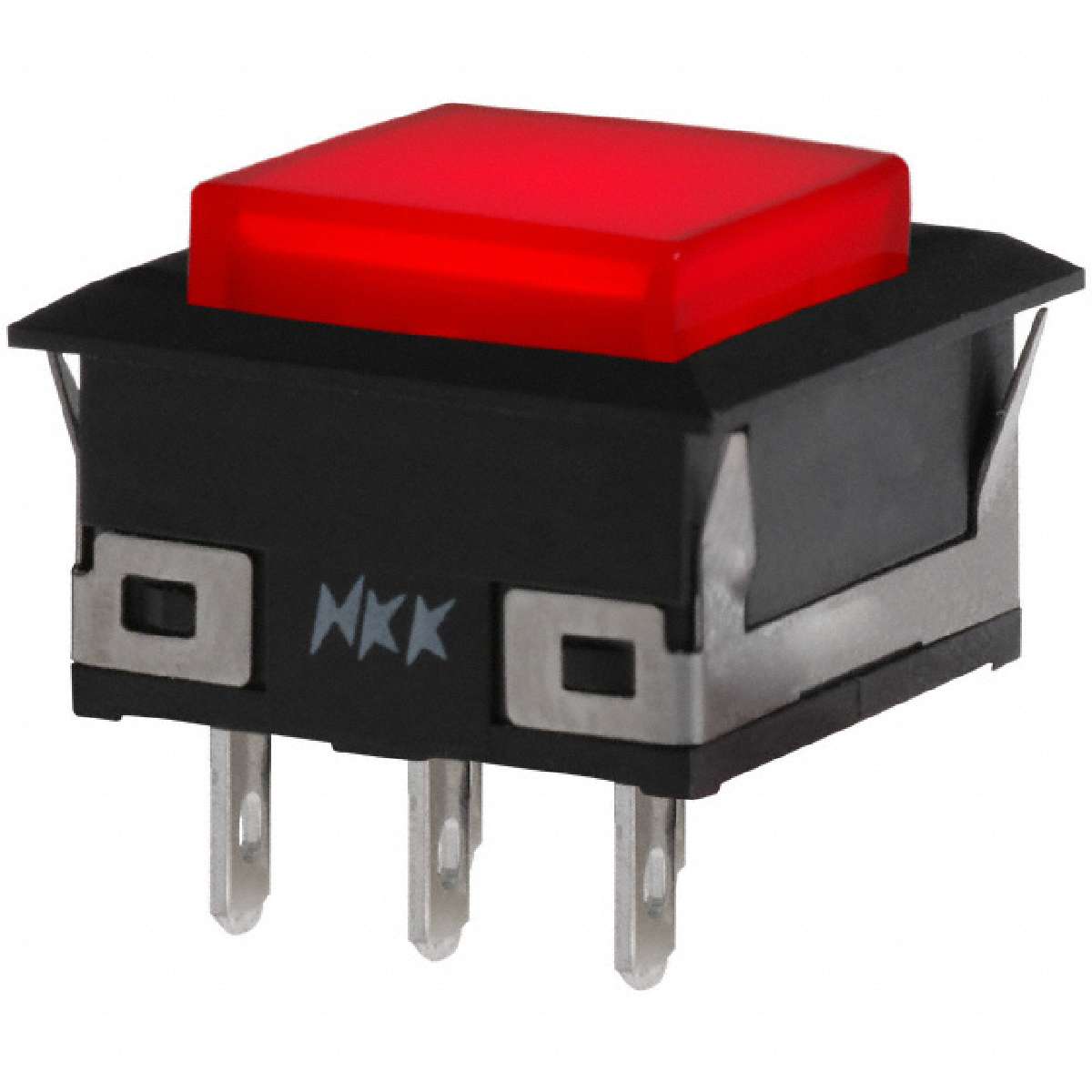

| Product description : UB Series SPDT On-Momentary Square Red LED Illuminated Pushbutton Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Illumination Voltage (Nominal) | 1.85 VDC |
|---|---|
| Actuator Type | Square, Button |
| Type | Standard, Illuminated |
| Termination Style | Solder Lug |
| Features | Epoxy Sealed Terminals |
| Illumination Type, Color | LED, Red |
| Category | Switches |
| Color - Actuator/Cap | Red |
| Mechanical Life | 1,000,000 Cycles |
| Panel Cutout Dimensions | Square - 16.20mm² |
| Operating Temperature | -25°C ~ 50°C |
| Current Rating | 5A (AC/DC) |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Part Status | Active |
| Electrical Life | 10,000 Cycles |
| Manufacturer | NKK Switches |
| Series | UB |
| Family | Pushbutton Switches |
| Mounting Type | Panel Mount, Snap-In |
| Packaging | Bulk |
| ECCN | EAR99 |
