| TY-403P | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

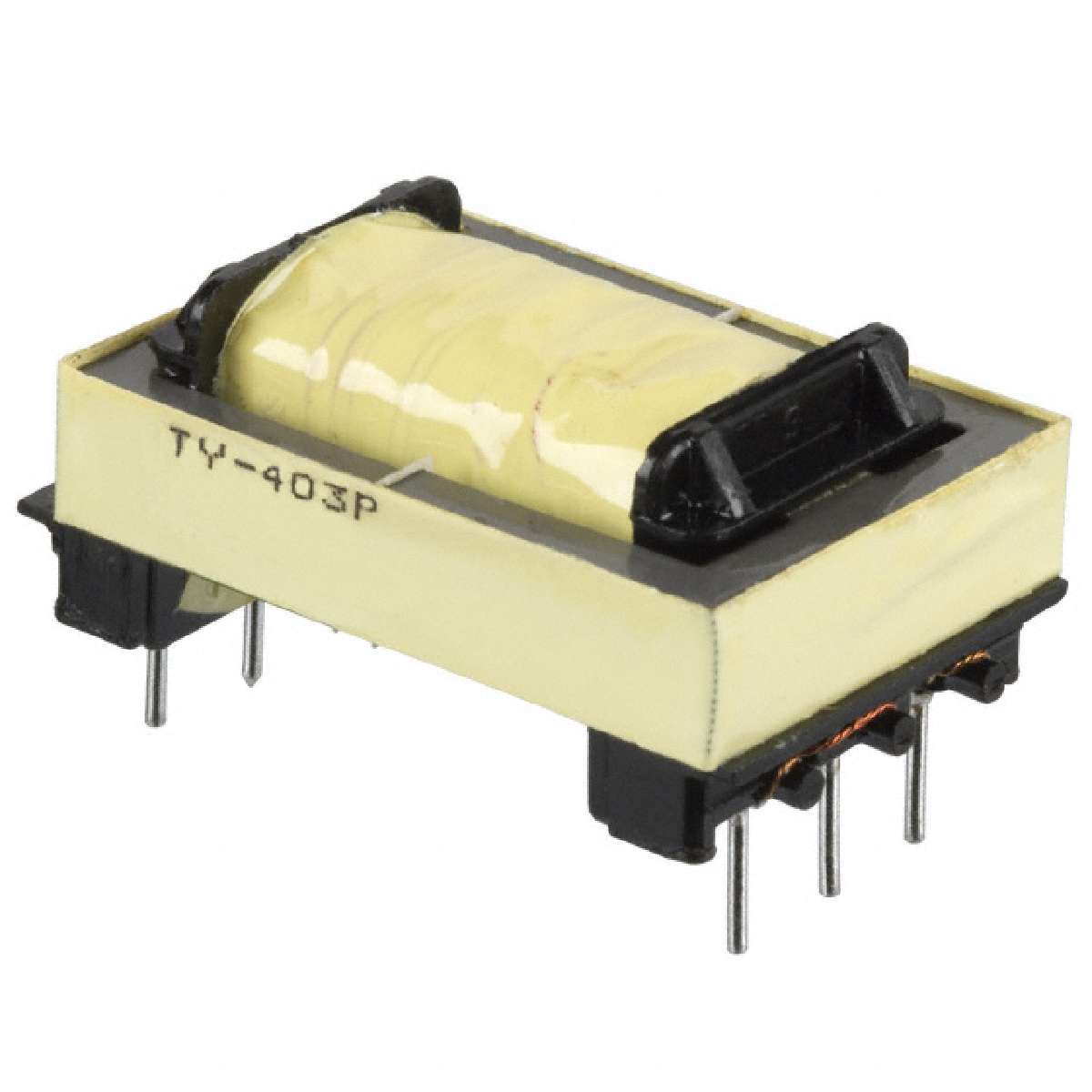

AUDIO XFMR FCC68 XFMR 600:600CT* 90mADC/TY-403P
|
||
| 标准包装：126 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Size / Dimension | 31.75mm L x 20.70mm W |
|---|---|
| Transformer Type | Data/Voice Coupling |
| Impedance | 600 Primary, 600 Secondary |
| Height - Seated (Max) | 13.46mm |
| Family | Audio Transformers |
| Termination Style | PC Pin |
| Current | 90mA DC |
| Part Status | Active |
| Manufacturer | Triad Magnetics |
| Category | Transformers |
| Series | TY |
| Mounting Type | Through Hole |
| Insertion Loss | 1.75dB Typ. |
| ECCN | EAR99 |
