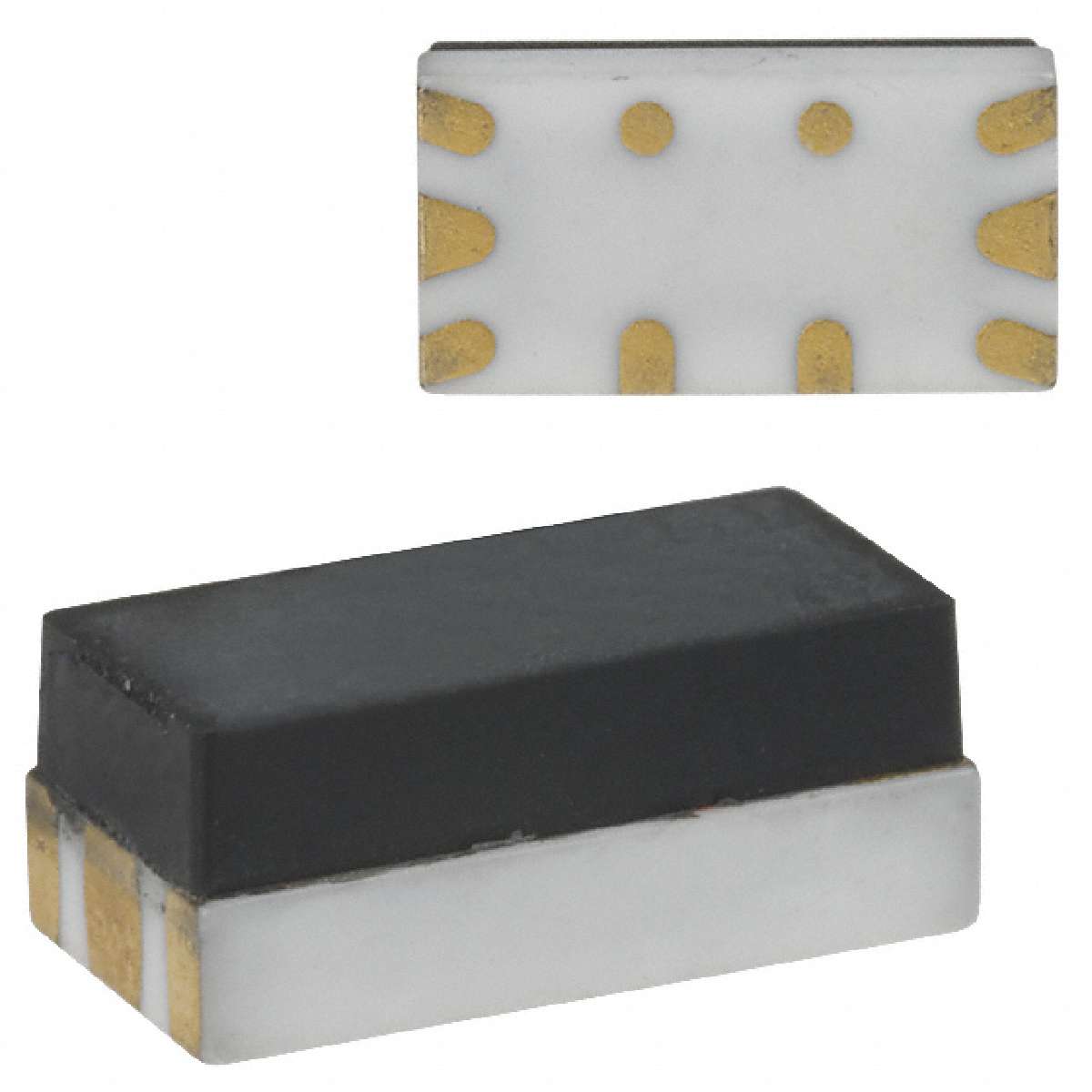

CRR05-1B | ||
---|---|---|
|
||
|
||
产品描述:
Relay: reed; SPST-NC; Ucoil: 5VDC; 0.5A; max.170VDC; max.170VAC; 10W
|
||
标准包装:1 | ||
数据手册: -- |
Contact Form | SPST-NC (1 Form B) |
---|---|
Turn Off Voltage (Min) | 0.75 VDC |
Operate Time | 0.6ms |
Coil Type | Non Latching |
Category | Relays |
Manufacturer | Standex-Meder Electronics |
Switching Voltage | 170VAC, 170VDC - Max |
Series | CRR |
Coil Voltage | 5VDC |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 125°C |
Coil Power | 167 mW |
Termination Style | SMD (SMT) Tab |
Turn On Voltage (Max) | 3.75 VDC |
Part Status | Active |
Coil Current | 33.3mA |
Release Time | 0.05ms |
Relay Type | Reed |
Coil Resistance | 150 Ohms |
Family | Signal Relays, Up to 2 Amps |
Contact Rating (Current) | 500mA |
Packaging | Digi-Reel® |
