| TL53BF160Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

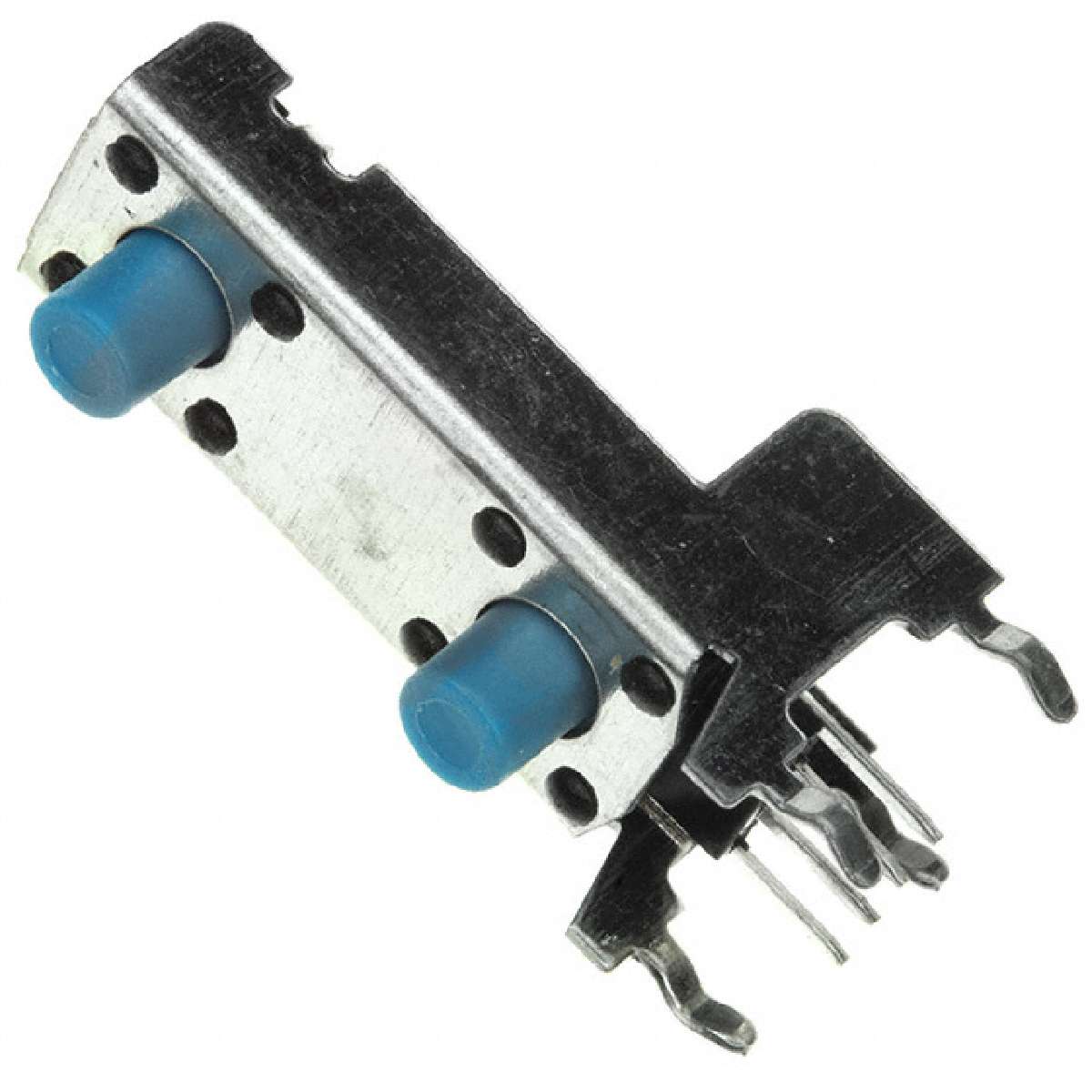

TL53 Series SPST 1.6 N Round Button Right Angle Through Hole Dual Tactile Switch
|
||
| 标准包装：200 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Mounting Direction: | Right Angle |
|---|---|
| Operating Force: | 1.6 N |
| Travel: | 0.25 mm |
| Manufacturer: | E-Switch |
| Operating Temperature Range: | - 20 C to + 70 C |
| Voltage Rating DC: | 12 VDC |
| Factory Pack Quantity: | 200 |
| RoHS: | Details |
| Product Category: | Tactile Switches |
| Contact Plating: | Silver |
| ECCN | EAR99 |
| Packaging: | Ammo Pack |
| Switch Function: | OFF - (ON) |
| Actuator: | Round |
| Series: | TL53 |
| Stem Height: | 5.85 mm |
| Contact Form: | SPST |
| Brand: | E-Switch |
| Termination Style: | Solder Pin |
| Current Rating: | 50 mA |
| Mounting Style: | Through Hole |
| 数据手册： |
|---|
