| TL3300DF160Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

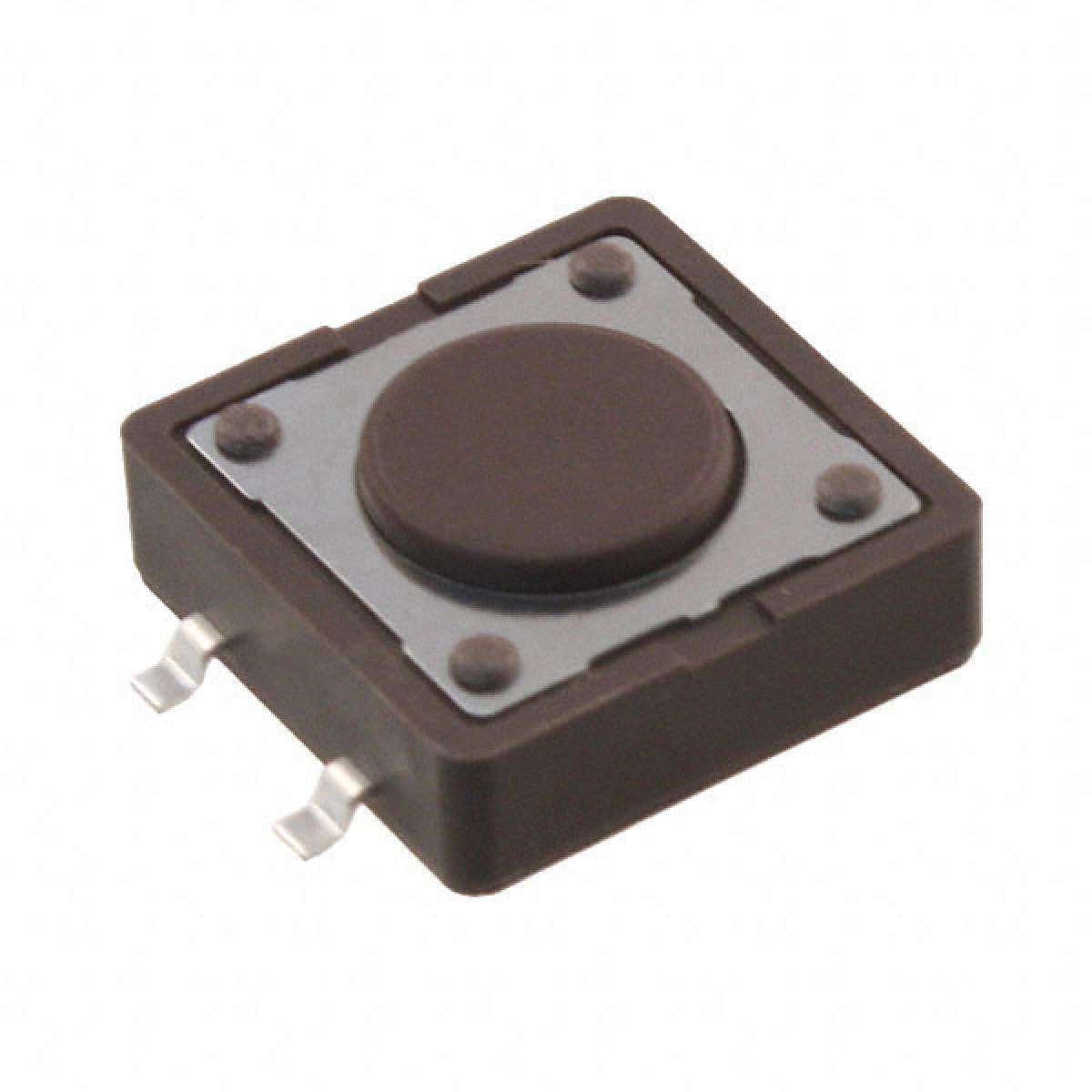

TL3300 Series 12 x 12 mm SPST 160 g Force 4.3 mm Top Actuated SMT Tactile Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Termination Style | Gull Wing |
| Manufacturer | E-Switch |
| Illumination | Non-Illuminated |
| Series | TL3300 |
| Mechanical Life | 200,000 Cycles |
| Outline | 12.00mm x 12.00mm |
| Operating Temperature | -25°C ~ 70°C |
| ECCN | EAR99 |
| Actuator Type | Standard |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 4.30mm |
| Part Status | Active |
| Category | Switches |
| Switch Travel | 0.35mm |
| Operating Force | 160gf |
| Family | Tactile Switches |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 2030 | Update On 2025-09-16 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
