| TL1270F160GYQAT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

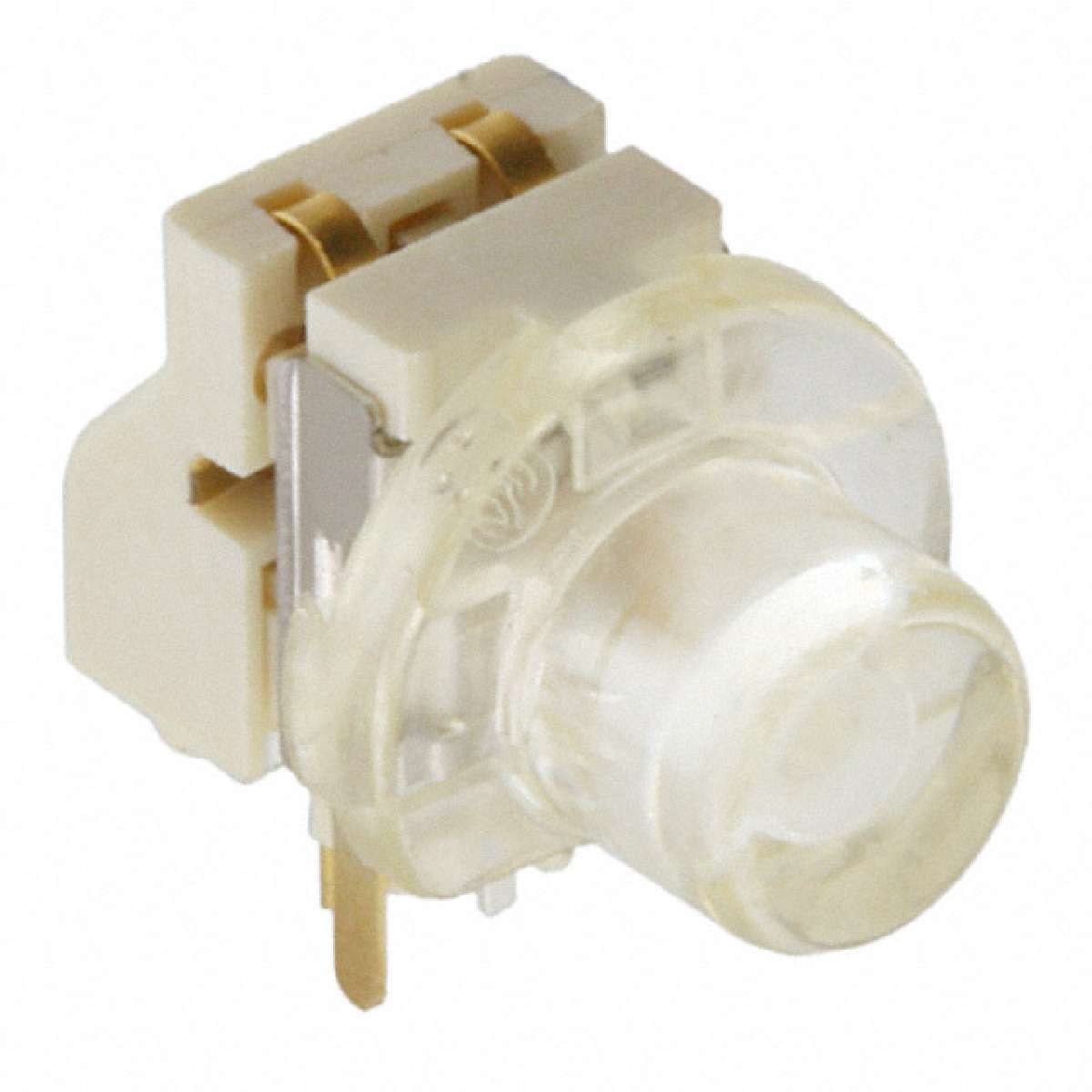

TL1270 Series Green/Yellow SPST 0.05 A 12 V Side Actuated PC Pin Tactile Switch
|
||
| 标准包装：300 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Illumination Voltage (Nominal) | 2.3 VDC |
|---|---|
| Actuator Type | Round Button |
| Actuator Orientation | Side Actuated |
| Actuator Height off PCB, from Pins | 5.62mm |
| Part Status | Active |
| Manufacturer | E-Switch |
| Illumination | Illuminated |
| Series | TL1270 |
| Mechanical Life | 100,000 Cycles |
| Outline | 6.20mm x 4.50mm |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Termination Style | PC Pin |
| Illumination Type, Color | LED, Green/Yellow |
| Category | Switches |
| Switch Travel | 0.20mm |
| Operating Force | 160gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole, Right Angle |
| Packaging | Tape & Reel (TR) |
