TL1107BF180WQ | ||
---|---|---|
|
||
|
||
产品描述:

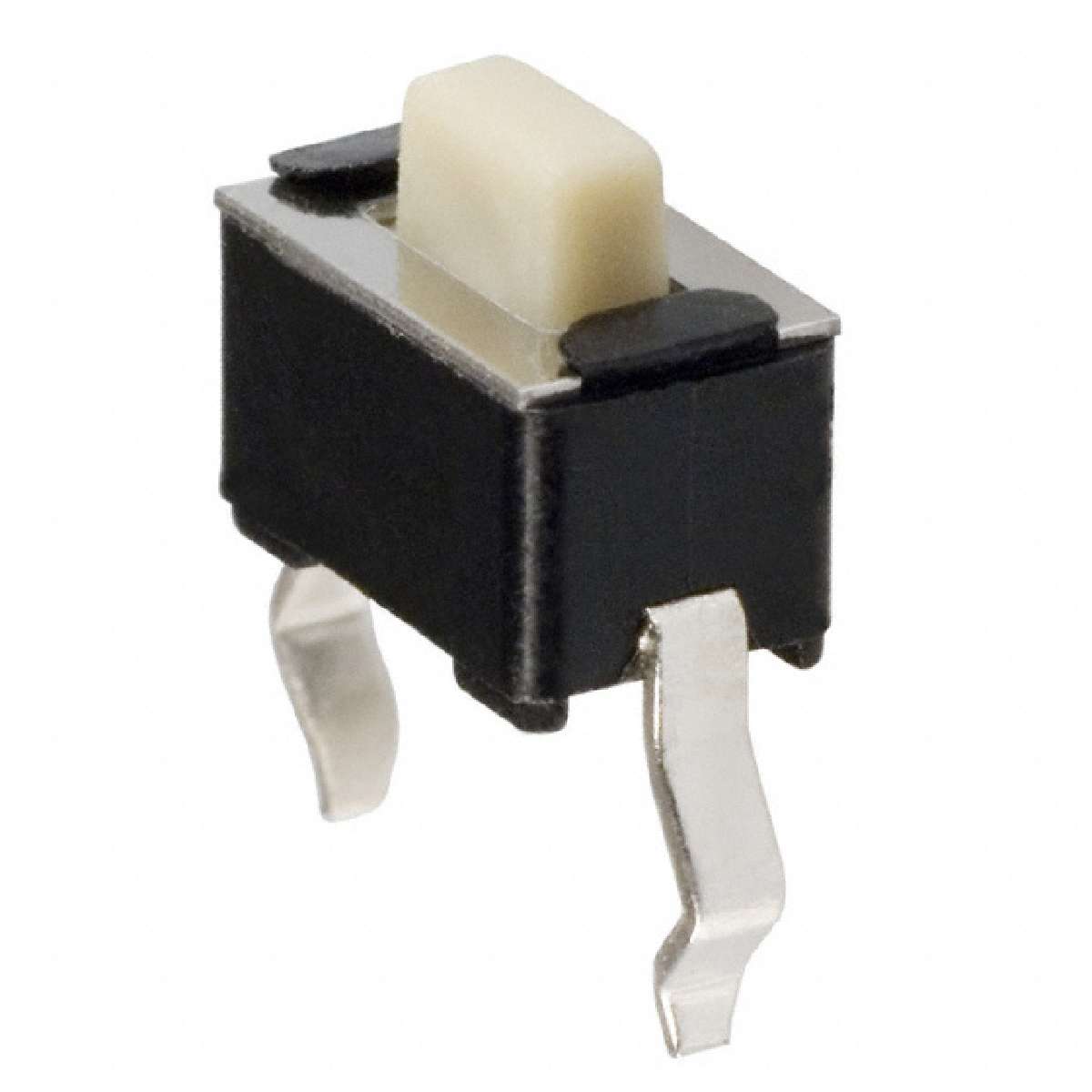

TL1107 Series SPST 1.8 N Rectangular Button Vertical Through Hole Tactile Switch
|
||
标准包装:1000 | ||
数据手册: |
Width: | 3.5 mm |
---|---|
Switch Function: | OFF - (ON) |
Travel: | 0.025 mm |
Manufacturer: | E-Switch |
Operating Temperature Range: | - 20 C to + 70 C |
Voltage Rating DC: | 12 VDC |
Factory Pack Quantity: | 1000 |
RoHS: | Details |
Product Category: | Tactile Switches |
Contact Plating: | Silver |
Height: | 5 mm |
ECCN | EAR99 |
Operating Force: | 1.8 N |
Length: | 6 mm |
Actuator: | Dome |
Series: | TL1107 |
Stem Height: | 5 mm |
Contact Form: | SPST |
Brand: | E-Switch |
Termination Style: | Solder Pin |
Current Rating: | 50 mA |
Ground Terminal: | No |
Mounting Style: | Through Hole |
数据手册: |
---|
