| TL1100EF160Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

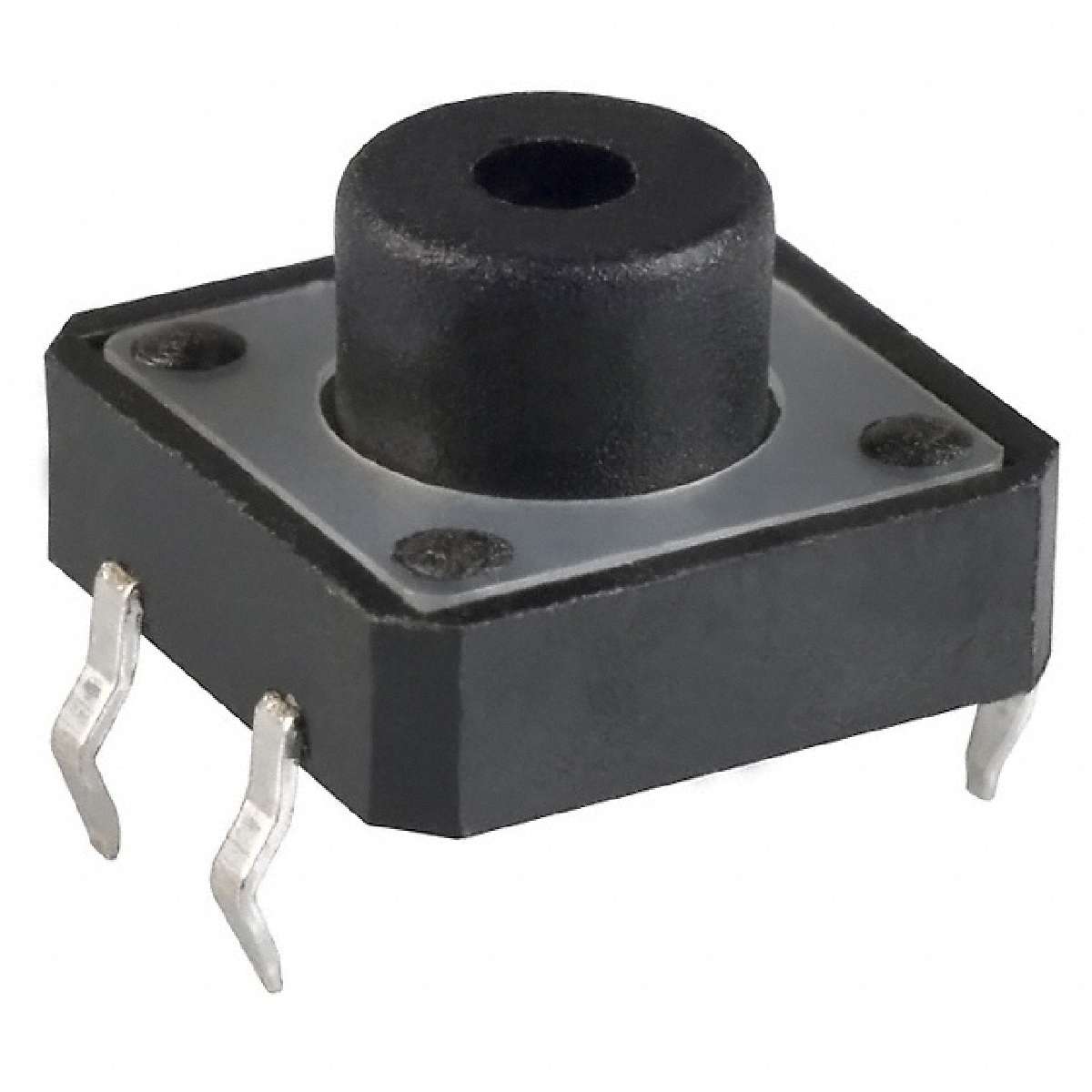

TL1100 Series SPST 2.6 N Round Button PC Through Hole Tactile Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Switches |
| Switch Travel | 0.30mm |
| Operating Force | 160gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| ECCN | EAR99 |
| Actuator Type | Standard |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 7.50mm |
| Features | Tactile Feedback |
| Manufacturer | E-Switch |
| Illumination | Non-Illuminated |
| Series | TL1100 |
| Mechanical Life | 100,000 Cycles |
| Outline | 12.00mm x 12.00mm |
| Operating Temperature | -20°C ~ 70°C |
| Actuator Material | Polyester |
