| TL.10.1HH11 | ||
|---|---|---|
|
|
||
|
||

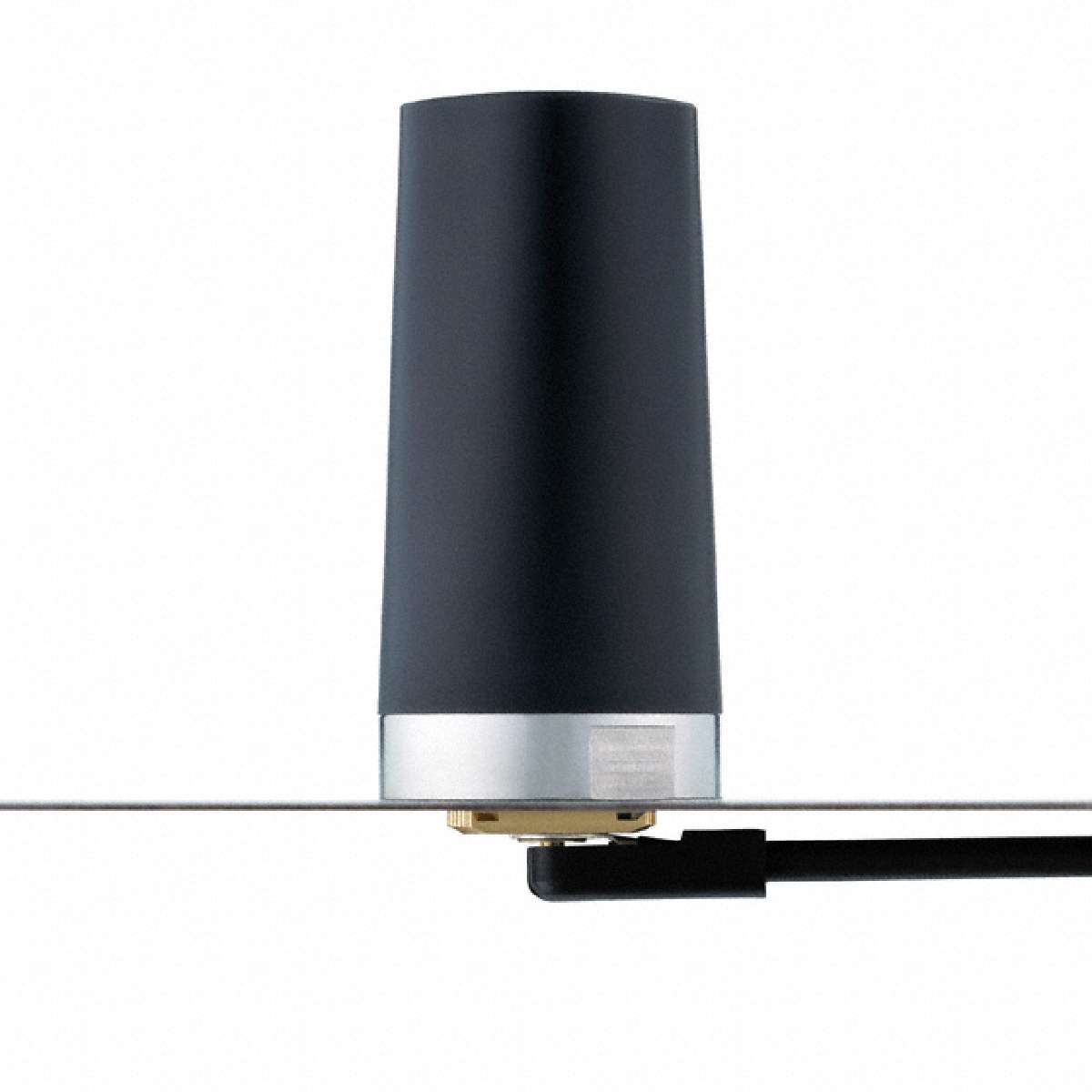

| Product description : TERMINAL ROBUST ANTENNA | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | Connector, NMO Male |
|---|---|
| Number of Bands | 8 |
| Ingress Protection | IP67, IP69K |
| Part Status | Active |
| Category | RF/IF and RFID |
| Series | Shockwave |
| Mounting Type | Base Mount |
| Height (Max) | 3.343" (84.90mm) |
| Packaging | Bulk |
| Gain | -1.7dBi, -0.9dBi, 0.8dBi, 1.3dBi, 1.3dBi, 1.7dBi, 3.5dBi |
| Antenna Type | Dome |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz |
| Manufacturer | Taoglas Limited |
| Family | RF Antennas |
| Applications | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
| Frequency Range | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz |
