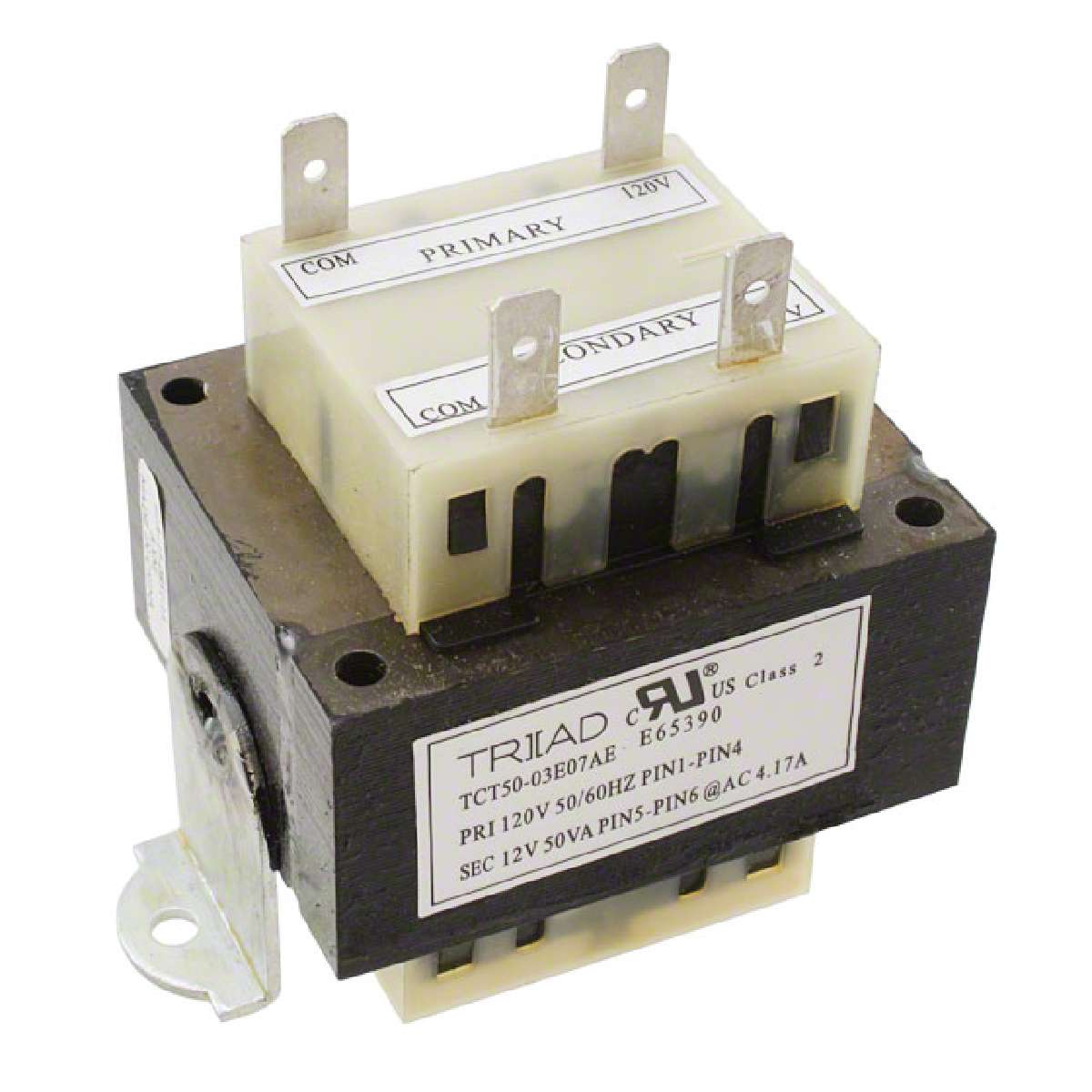

| TCT50-03E07AE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
CLASS 2 TRANSFORMER - INPUT:120VAC @ 50/60Hz,
|
||
| 标准包装：11 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 1500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | 12V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 92.46mm L x 56.67mm W |
| Voltage - Primary | 120V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Single |
| Family | Power Transformers |
| ECCN | EAR99 |
| Primary Winding(s) | Single |
| Power - Max | 50 VA |
| Current - Output (Max) | 4.17A |
| Termination Style | Solder, Quick Connect |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 57.40mm |
| Series | Class 2 |
| Mounting Type | Chassis Mount |
