| TCDT1101 | ||
|---|---|---|
|
|
||
|
||

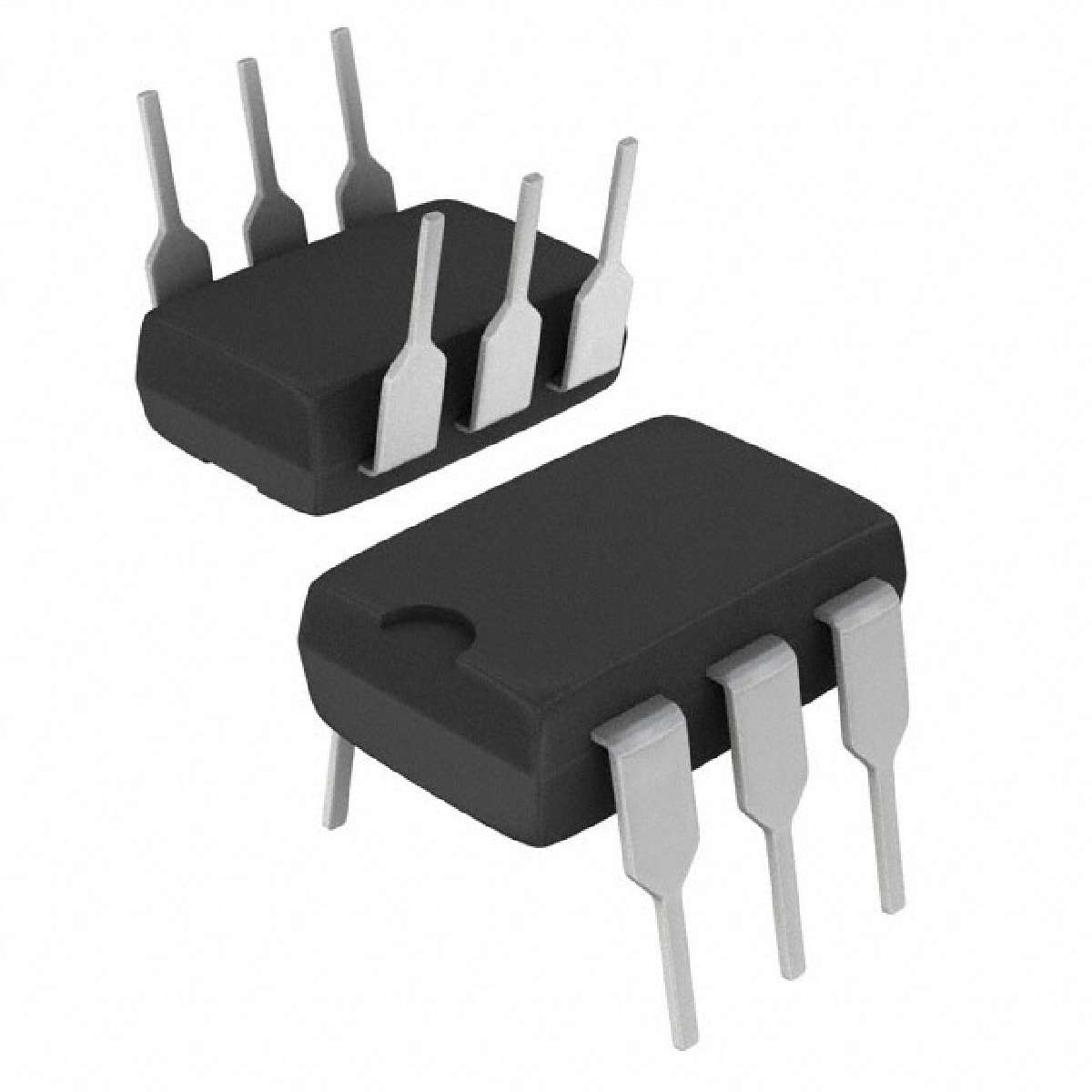

| Product description : TCDT1101 Series Single Channel 32V 5000 Vrms Phototransistor Optocoupler - DIP-6 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Tube |
|---|---|
| Maximum Collector Emitter Voltage: | 32 V |
| Isolation Voltage: | 5000 Vrms |
| Pd - Power Dissipation: | 250 mW |
| Package / Case: | PDIP-6 |
| Configuration: | 1 Channel |
| Maximum Collector Current: | 50 mA |
| Fall Time: | 6.7 us |
| If - Forward Current: | 60 mA |
| Output Type: | NPN Phototransistor |
| Factory Pack Quantity: | 50 |
| RoHS: | Details |
| Rise Time: | 7 us |
| ECCN | EAR99 |
| Width: | 6.4 mm |
| Maximum Collector Emitter Saturation Voltage: | 0.3 V |
| Minimum Operating Temperature: | - 55 C |
| Current Transfer Ratio: | 80 % |
| Height: | 4.2 mm |
| Vf - Forward Voltage: | 1.6 V |
| Number of Channels: | 1 Channel |
| Length: | 8.8 mm |
| Manufacturer: | Vishay |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Vishay Semiconductors |
| Product Category: | Transistor Output Optocouplers |
| Maximum Operating Temperature: | + 100 C |
