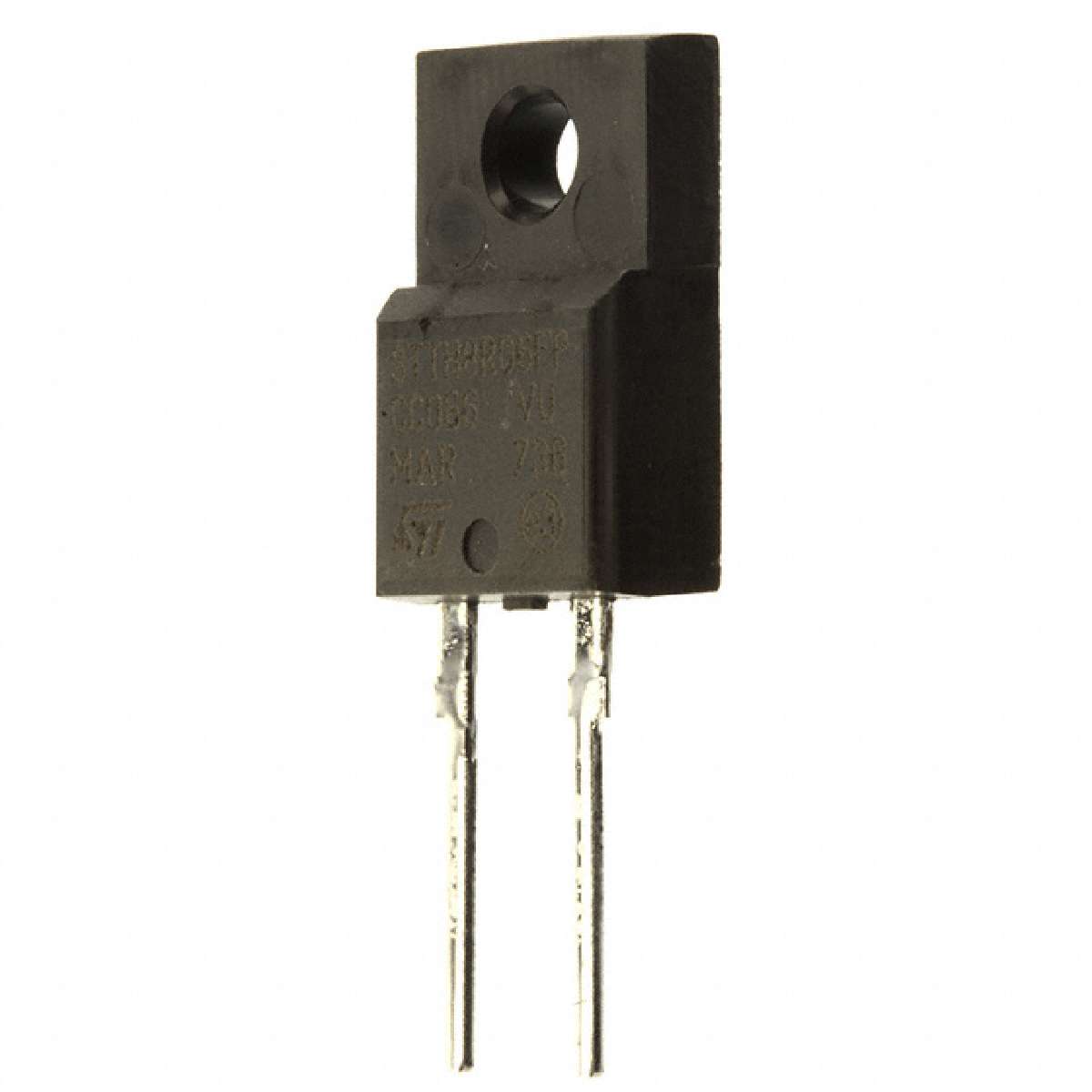

| STTH8S06FP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Turbo 2 600 V 8 A 18 ns Flange Mount Ultrafast High Voltage Rectifier - TO-220FP
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current - Average Rectified (Io) | 8A |
|---|---|
| Package / Case | TO-220-2 Full Pack |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | STMicroelectronics |
| Current - Reverse Leakage @ Vr | 20µA @ 600V |
| Mounting Type | Through Hole |
| Voltage - Forward (Vf) (Max) @ If | 3.4V @ 8A |
| ECCN | EAR99 |
| Operating Temperature - Junction | 175°C (Max) |
| Supplier Device Package | TO-220FPAC |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 18ns |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Packaging | Tube |
登录之后就可发表评论
Availability2Request Stock Notification
Consignment Stock
The stock show from Manufacture or Manufacture Authorized Distributor Online stock QTY.
| stock | 6791 | Update On 2025-08-15 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
