STK5F1U3E2D-E specifications -Ameya360 electronic components purchase network

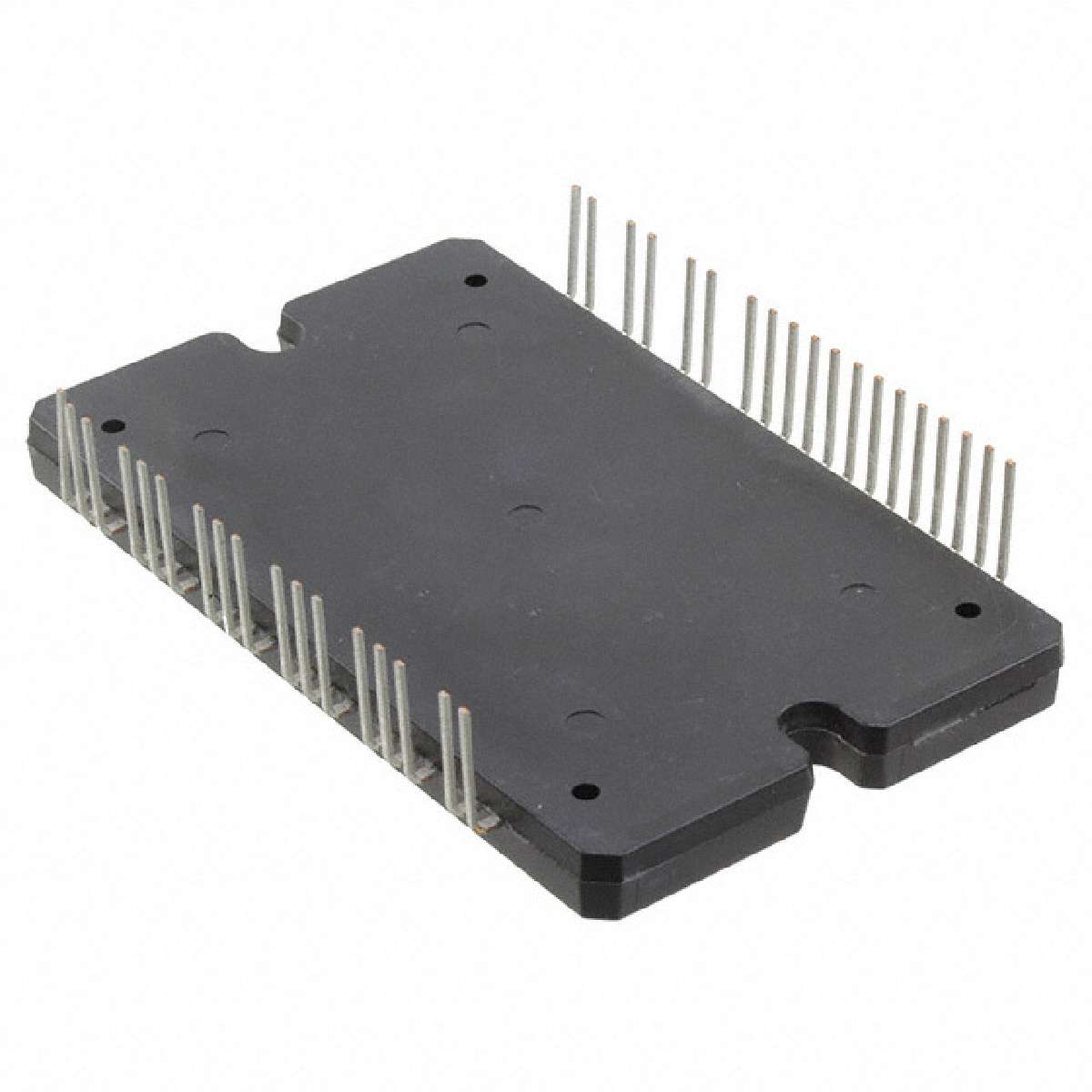

STK5F1U3E2D-E

ACTIVE 44-DIP
Product description : STK5F1U3E2D-E, 全桥电机驱动器, ±76A, 适用于3 相电机驱动器, 20kHz, 62.5W, 0 → 400 V, 44针 PDIP封装
SPQ：1
Datasheet : STK5F1U3E2D-E.pdf

Load Type	Inductive
Current - Peak Output	76A
Package / Case	44-DIP Module, 37 Leads
Supplier Device Package	44-DIP
Features	Bootstrap Circuit, Status Flag
Interface	Logic
Manufacturer	ON Semiconductor
Family	PMIC - Full, Half-Bridge Drivers
Mounting Type	Through Hole
Technology	IGBT
Voltage - Supply	12.5 V ~ 17.5 V
Output Configuration	Half Bridge (3)
Current - Output / Channel	50A
Fault Protection	Current Limiting, UVLO
Part Status	Active
Category	Integrated Circuits (ICs)
Voltage - Load	450V (Max)
Applications	AC Motors
Operating Temperature	-20°C ~ 150°C (TJ)
Packaging	Tube

Datasheet： STK5F1U3E2D-E.pdf
