STK544UC62K-E specifications -Ameya360 electronic components purchase network

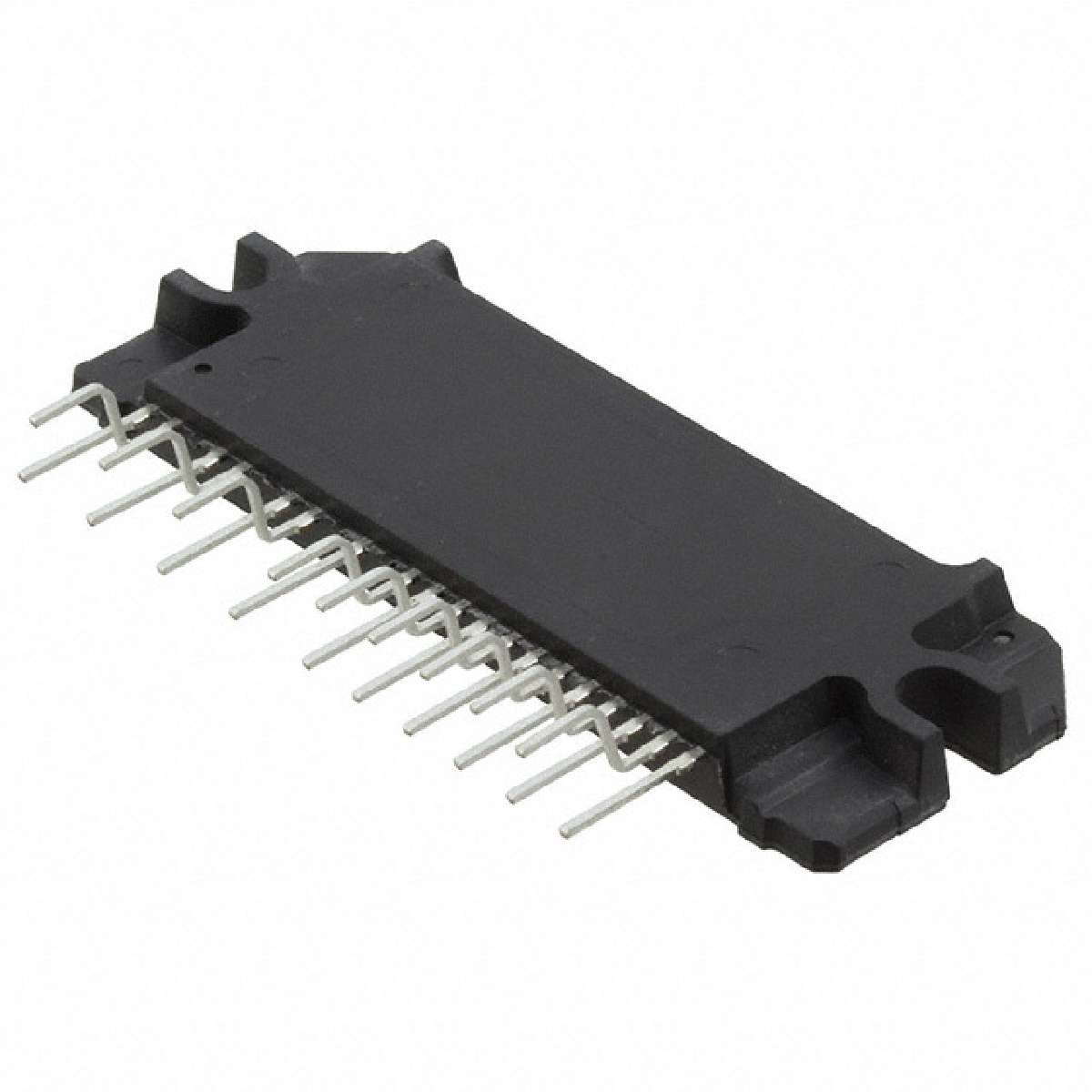

STK544UC62K-E

ACTIVE 23-SIP-1 EAR99
Product description : STK544xx Series 450 V 10 A Inverter Power H-IC for 3-Phase Motor Drive - SIP-23
SPQ：1
Datasheet : STK544UC62K-E.pdf

Load Type	Inductive
Current - Peak Output	20A
Package / Case	23-SIP, 19 Leads, Formed Leads
Supplier Device Package	23-SIP-1
Features	Bootstrap Circuit
Interface	Logic
Manufacturer	ON Semiconductor
Family	PMIC - Full, Half-Bridge Drivers
Mounting Type	Through Hole
Technology	IGBT
ECCN	EAR99
Voltage - Supply	12.5 V ~ 17.5 V
Output Configuration	Half Bridge (3)
Current - Output / Channel	10A
Fault Protection	Shoot-Through, UVLO
Part Status	Active
Category	Integrated Circuits (ICs)
Voltage - Load	450V (Max)
Applications	AC Motors
Operating Temperature	-40°C ~ 150°C (TJ)
Packaging	Tube

Datasheet： STK544UC62K-E.pdf
