| SSL-LXA228SGC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

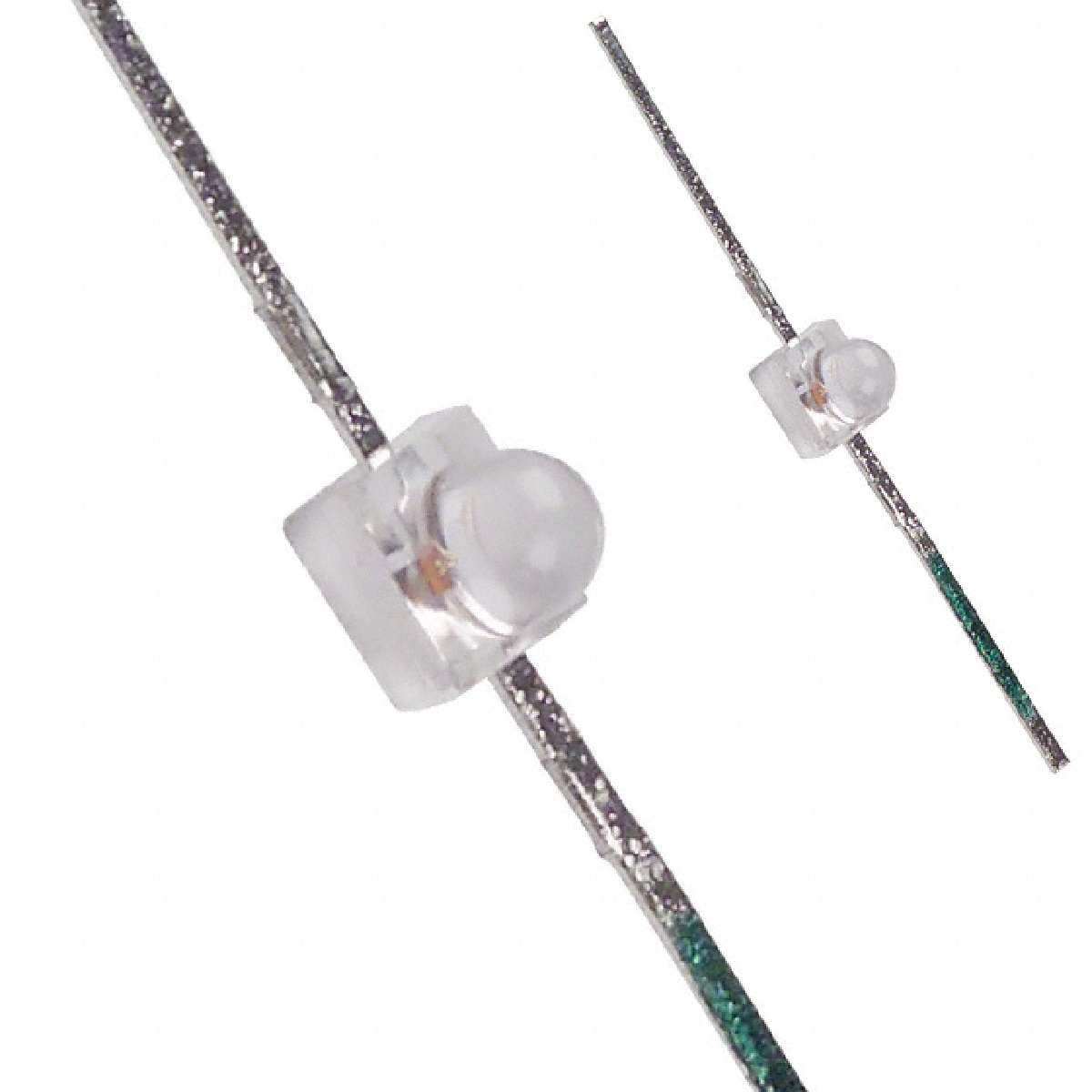

Super Green 2.5 mm 25° Water Clear 50 mcd 2.2 V Axial Lead Through Hole LED
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Water Clear |
|---|---|
| Packaging: | Bulk |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 565 nm |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lumex |
| RoHS: | Details |
| Product Category: | Standard LEDs - SMD |
| Lens Shape: | Dome |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 2.2 V |
| ECCN | EAR99 |
| Viewing Angle: | 25 deg |
| Power Rating: | 100 mW |
| Manufacturer: | Lumex |
| Luminous Intensity: | 50 mcd |
| Factory Pack Quantity: | 1000 |
| Wavelength/Color Temperature: | 565 nm |
| LED Size: | 2.5 mm x 2 mm |
| Illumination Color: | Green |
| Lens Dimensions: | 1.9 mm |
| Wavelength: | 565 nm |
| Maximum Operating Temperature: | + 85 C |
