| SSL-LX3054SRD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

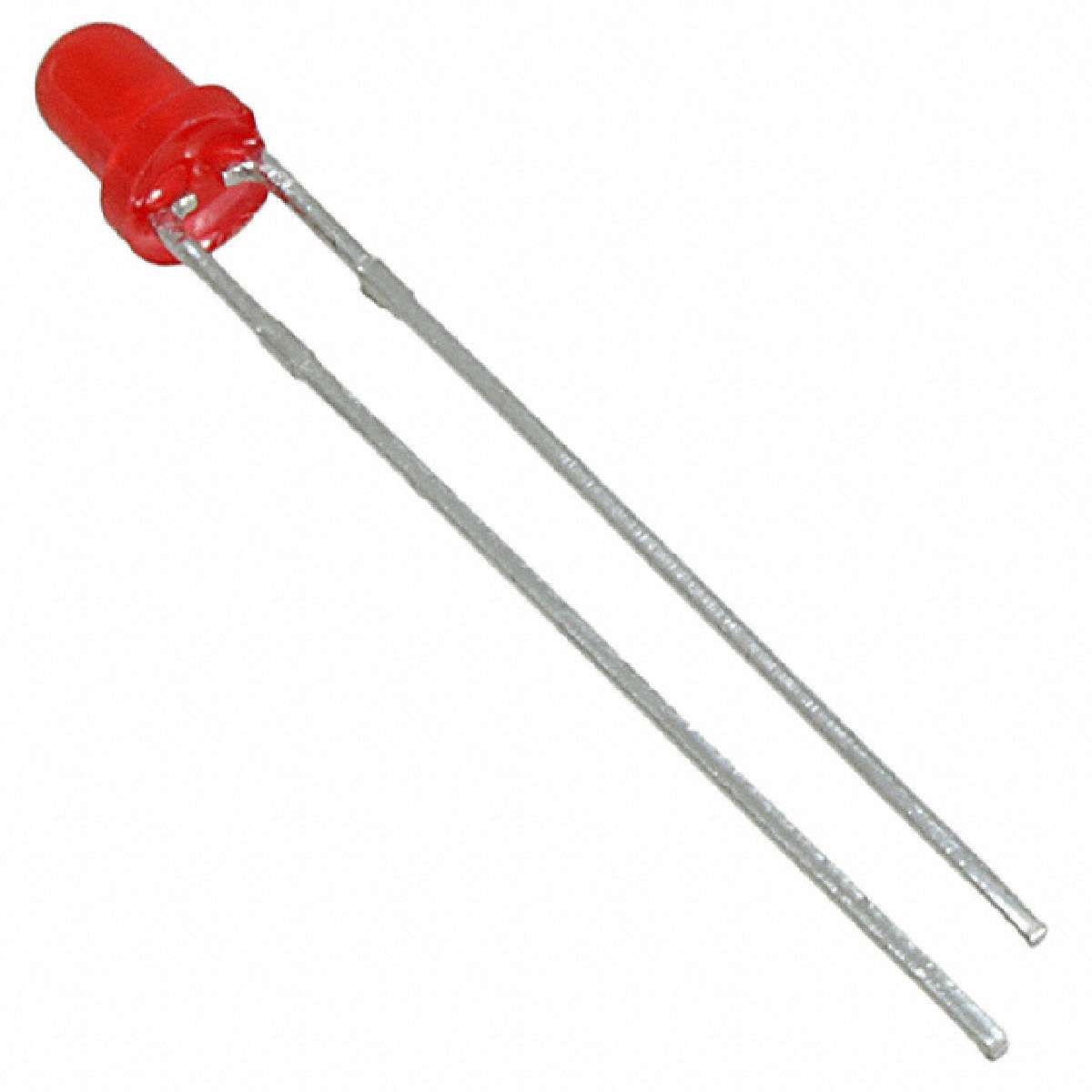

LED; 3mm; red; 320mcd; 60°; Front: convex; Pitch: 2.54mm; 75mW
|
||
| 标准包装：2 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Diffused |
|---|---|
| Packaging: | Bulk |
| Manufacturer: | Lumex |
| Luminous Intensity: | 320 mcd |
| Factory Pack Quantity: | 1000 |
| Wavelength/Color Temperature: | 660 nm |
| Package / Case: | T-1 |
| Product Category: | Standard LEDs - Through Hole |
| Lens Shape: | Dome |
| Mounting Style: | Through Hole |
| Maximum Operating Temperature: | + 85 C |
| Viewing Angle: | 60 deg |
| If - Forward Current: | 30 mA |
| Operating Supply Voltage: | 1.7 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lumex |
| RoHS: | Details |
| LED Size: | T-1 (3 mm) |
| Illumination Color: | Red |
| Lens Dimensions: | 3 mm |
| Wavelength: | 660 nm |
| ECCN | EAR99 |
