| SSL-LX3054GD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

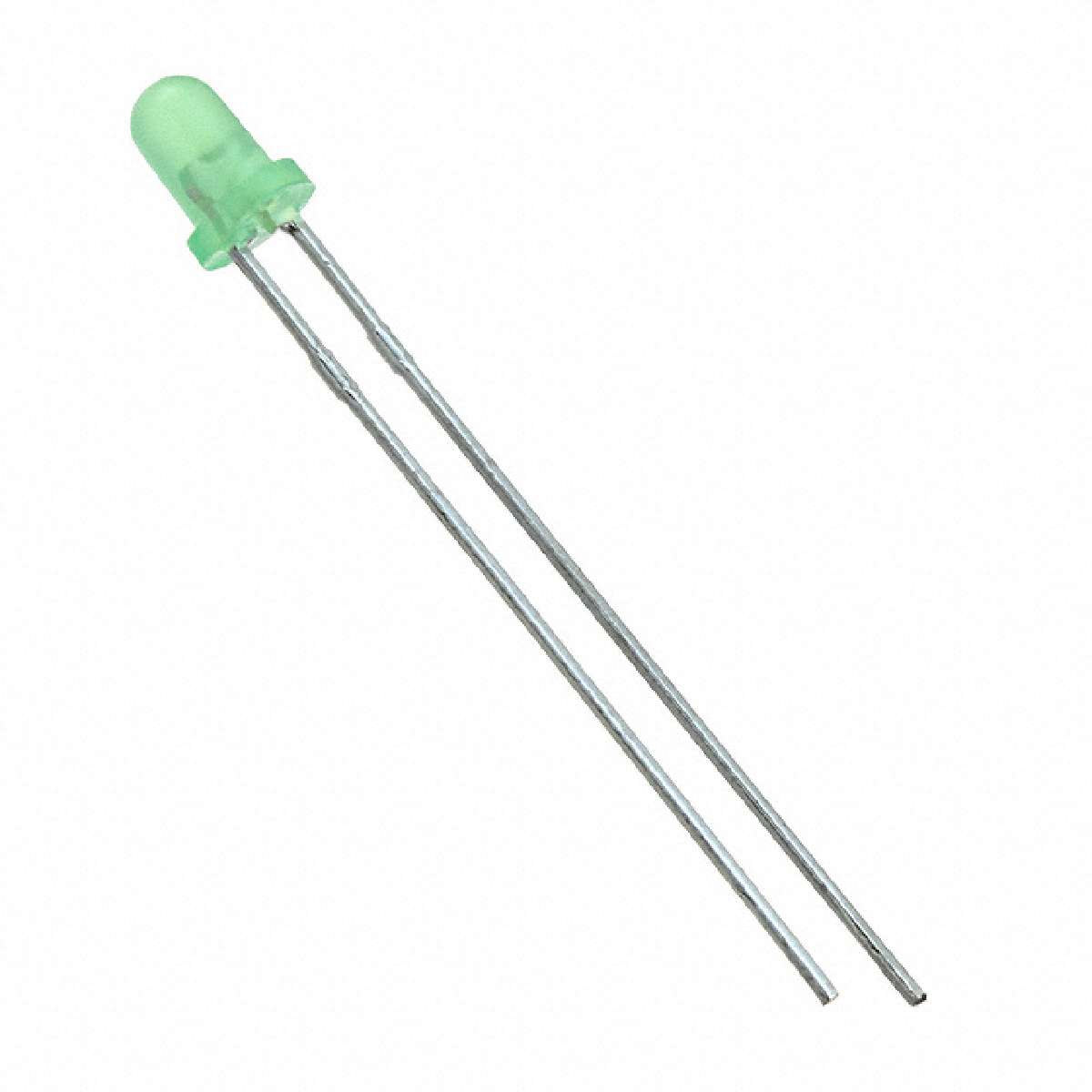

Green 3 mm 60° Diffused 12 mcd 2.2 V Through Hole LED - T-1
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial |
|---|---|
| Supplier Device Package | T-1 |
| Part Status | Active |
| Manufacturer | Lumex Opto/Components Inc. |
| Lens Color | Green |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Through Hole |
| Millicandela Rating | 12mcd |
| ECCN | EAR99 |
| Viewing Angle | 60° |
| Color | Green |
| Category | Optoelectronics |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 3.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Wavelength - Peak | 565nm |
| Height (Max) | 5.25mm |
| Lens Transparency | Diffused |
| Packaging | Bulk |
