| SSL-LX3044LID | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

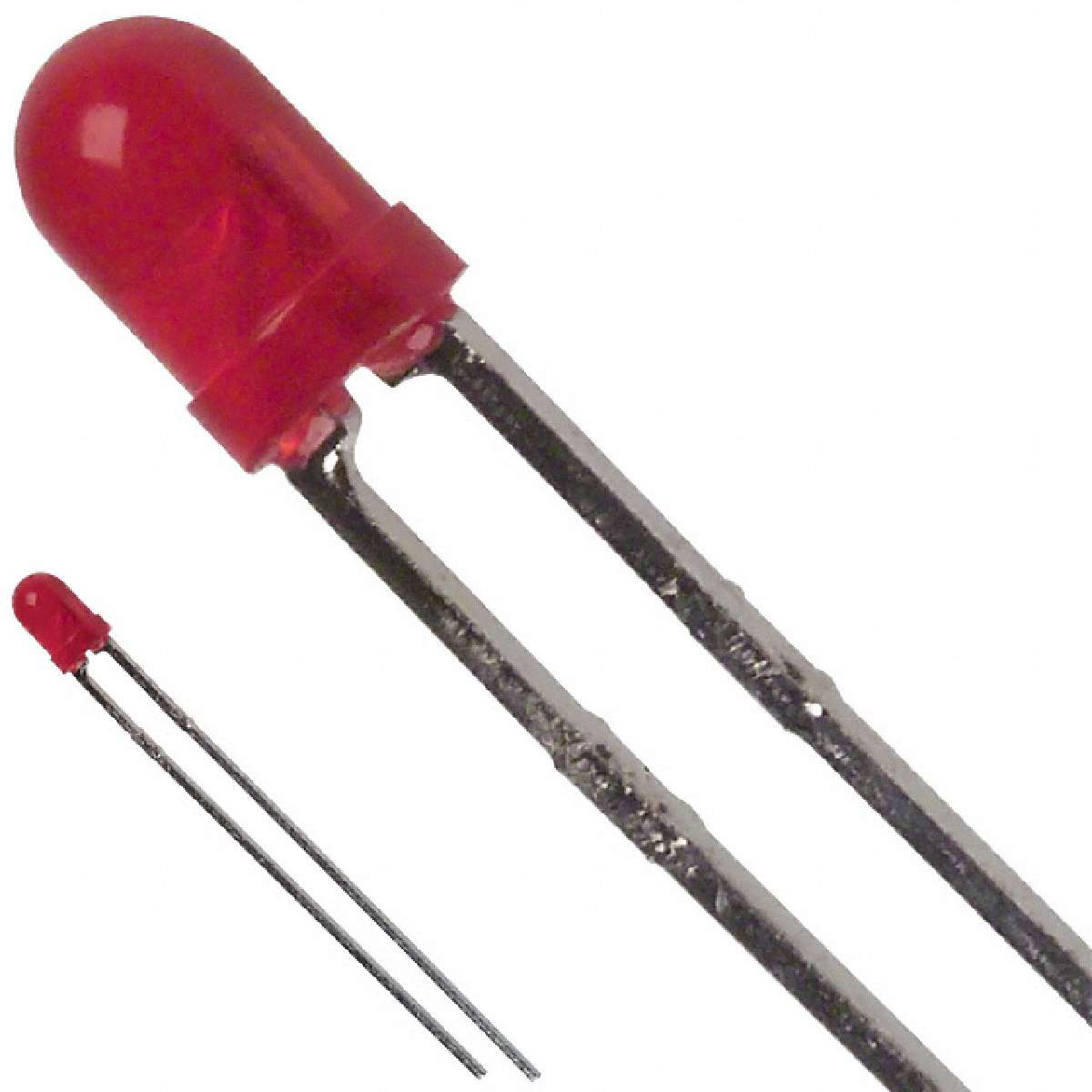

Red 3 mm 60° Diffused 30 mcd 2 V Through Hole LED - T-1
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Tinted, Diffused |
|---|---|
| Viewing Angle: | 60 deg |
| Luminous Intensity: | 30 mcd |
| Wavelength/Color Temperature: | 635 nm |
| LED Size: | T-1 (3 mm) |
| Illumination Color: | Red |
| Lens Shape: | Dome |
| Mounting Style: | Through Hole |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 635 nm |
| Operating Supply Voltage: | 2 V |
| Brand: | Lumex |
| Product Category: | Standard LEDs - Through Hole |
| Maximum Operating Temperature: | + 85 C |
| Packaging: | Bulk |
| Power Rating: | 105 mW |
| Minimum Operating Temperature: | - 40 C |
| Number of LEDs: | 1 |
| Package / Case: | T-1 |
| Height: | 4.6 mm |
| Lens Dimensions: | 3 mm |
| Vf - Forward Voltage: | 2 V |
| Manufacturer: | Lumex |
| Vr - Reverse Voltage: | 5 V |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Wavelength: | 635 nm |
| ECCN | EAR99 |
