| SSL-LX2573GD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

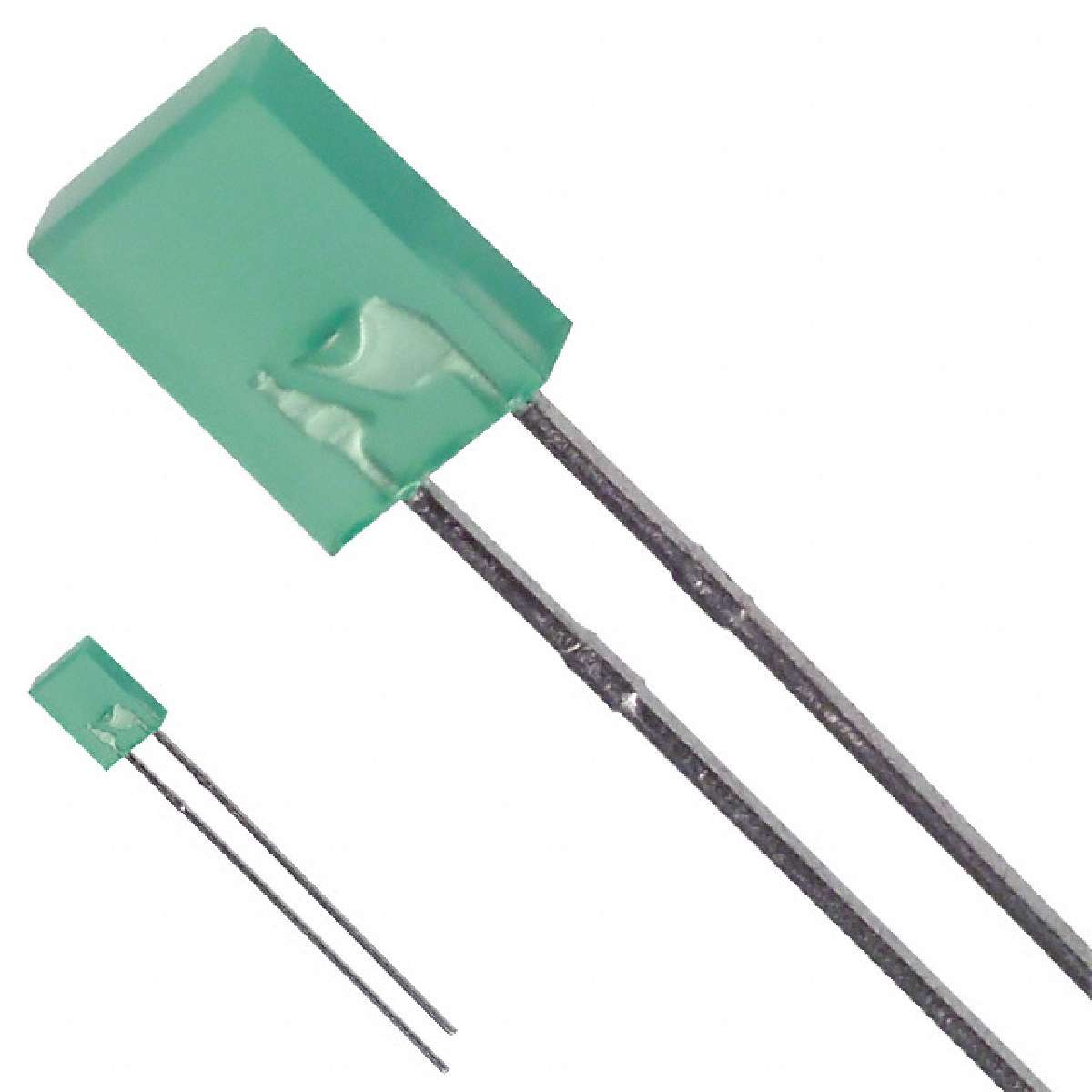

Green 2 x 5 mm 110° Diffused 10 mcd 2.2 V Rectangular Through Hole LED
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Tinted, Diffused |
|---|---|
| Viewing Angle: | 110 deg |
| Length: | 2 mm |
| Manufacturer: | Lumex |
| Luminous Intensity: | 10 mcd |
| Factory Pack Quantity: | 1000 |
| Wavelength/Color Temperature: | 565 nm |
| LED Size: | 2.5 mm x 5 mm |
| Height: | 7 mm |
| Lens Shape: | Rectangular |
| Mounting Style: | Through Hole |
| Maximum Operating Temperature: | + 85 C |
| Width: | 5 mm |
| Packaging: | Bulk |
| If - Forward Current: | 25 mA |
| Operating Supply Voltage: | 2.2 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lumex |
| RoHS: | Details |
| Product Category: | Standard LEDs - Through Hole |
| Illumination Color: | Green |
| Lens Dimensions: | 2.5 mm x 5 mm |
| Wavelength: | 565 nm |
| ECCN | EAR99 |
