| SSL-LX20R6ID | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

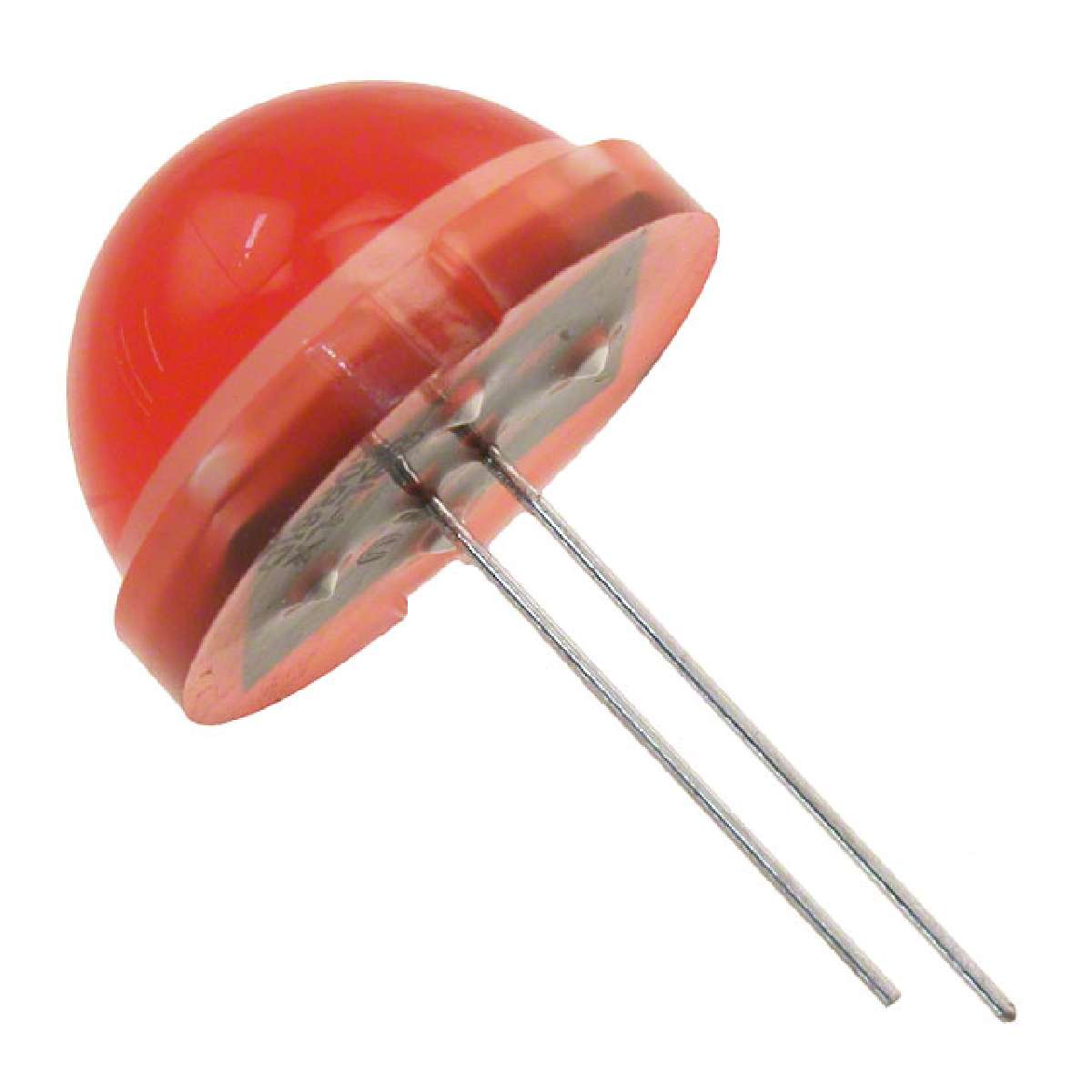

Red 22 mm 120° Diffused 35 mcd 6 V 6 Chip Jumbo Through Hole LED Lamp
|
||
| 标准包装：984 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Diffused |
|---|---|
| Packaging: | Tube |
| Manufacturer: | Lumex |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lumex |
| RoHS: | Details |
| Product Category: | Standard LEDs - Through Hole |
| Lens Shape: | Dome |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 6 V |
| ECCN | EAR99 |
| Viewing Angle: | 120 deg |
| If - Forward Current: | 20 mA |
| Luminous Intensity: | 35 mcd |
| Factory Pack Quantity: | 41 |
| Wavelength/Color Temperature: | 635 nm |
| LED Size: | 20 mm |
| Illumination Color: | Red |
| Lens Dimensions: | 20 mm |
| Wavelength: | 635 nm |
| Maximum Operating Temperature: | + 85 C |
