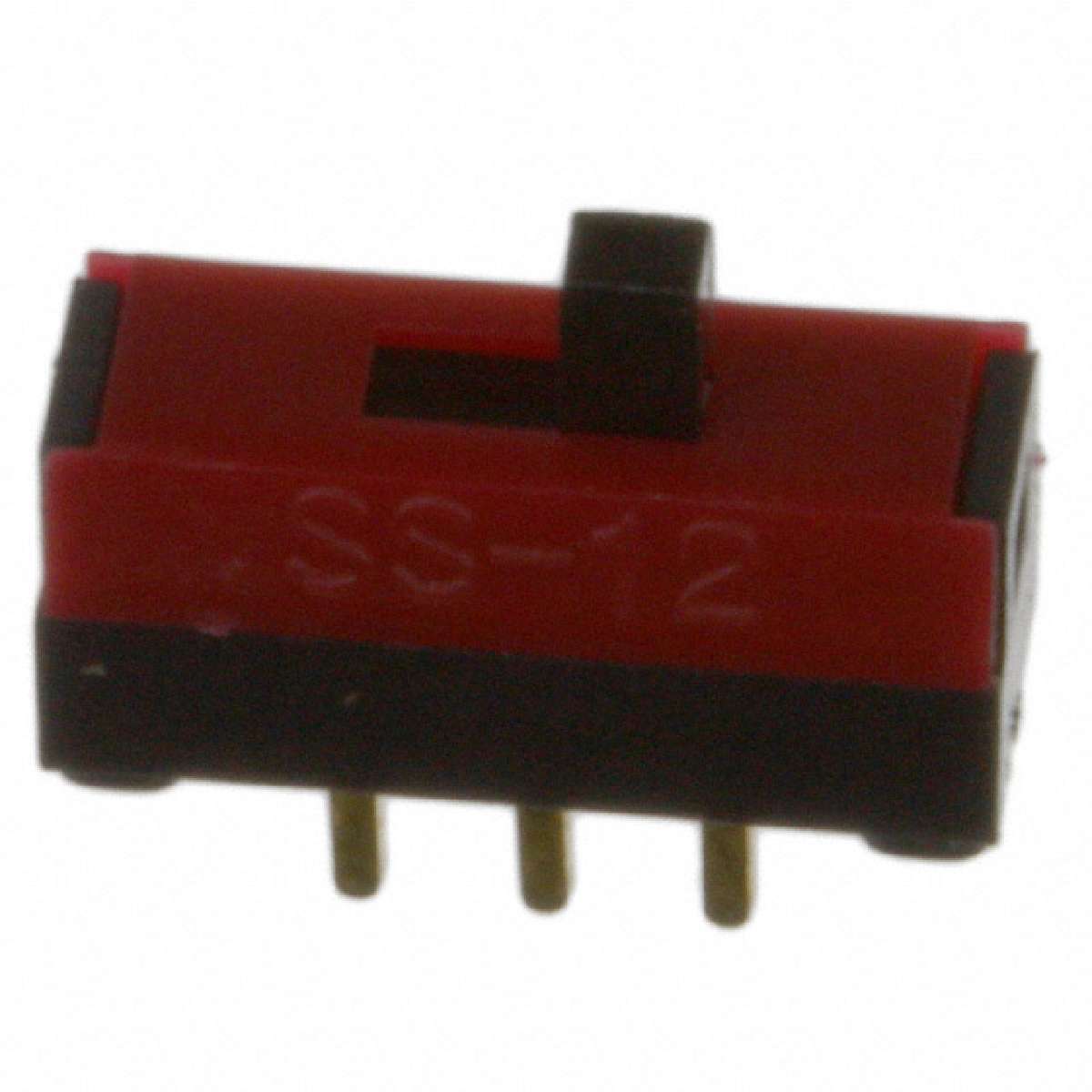

| SS12SBP4 | ||
|---|---|---|
|
|
||
|
||
| Product description : SS Series Ultra Mini SPDT On-None-On Top Actuated Thru Hole Slide Switch | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Mounting Angle: | Straight |
|---|---|
| Switch Function: | ON - ON |
| Actuator: | Top |
| Voltage Rating AC: | 28 V |
| Operating Temperature Range: | - 15 C to + 60 C |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder |
| Product Category: | Slide Switches |
| Contact Plating: | Gold |
| Type: | Ultra-Miniature Slide Switches |
| Mounting Style: | Through Hole |
| Packaging: | Bulk |
| Travel: | 2 mm |
| Manufacturer: | NKK Switches |
| Series: | SS Series |
| Contact Form: | SPDT |
| Part # Aliases: | SS-12SBP4 |
| RoHS: | Details |
| Contact Material: | Brass |
| Flammability Rating: | UL 94 V-0 |
| Illumination: | Non-Illuminated |
| Contact Current Rating: | 0.4 VA at 28 VAC/DC |
| ECCN | EAR99 |
