| SS12SBH4 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

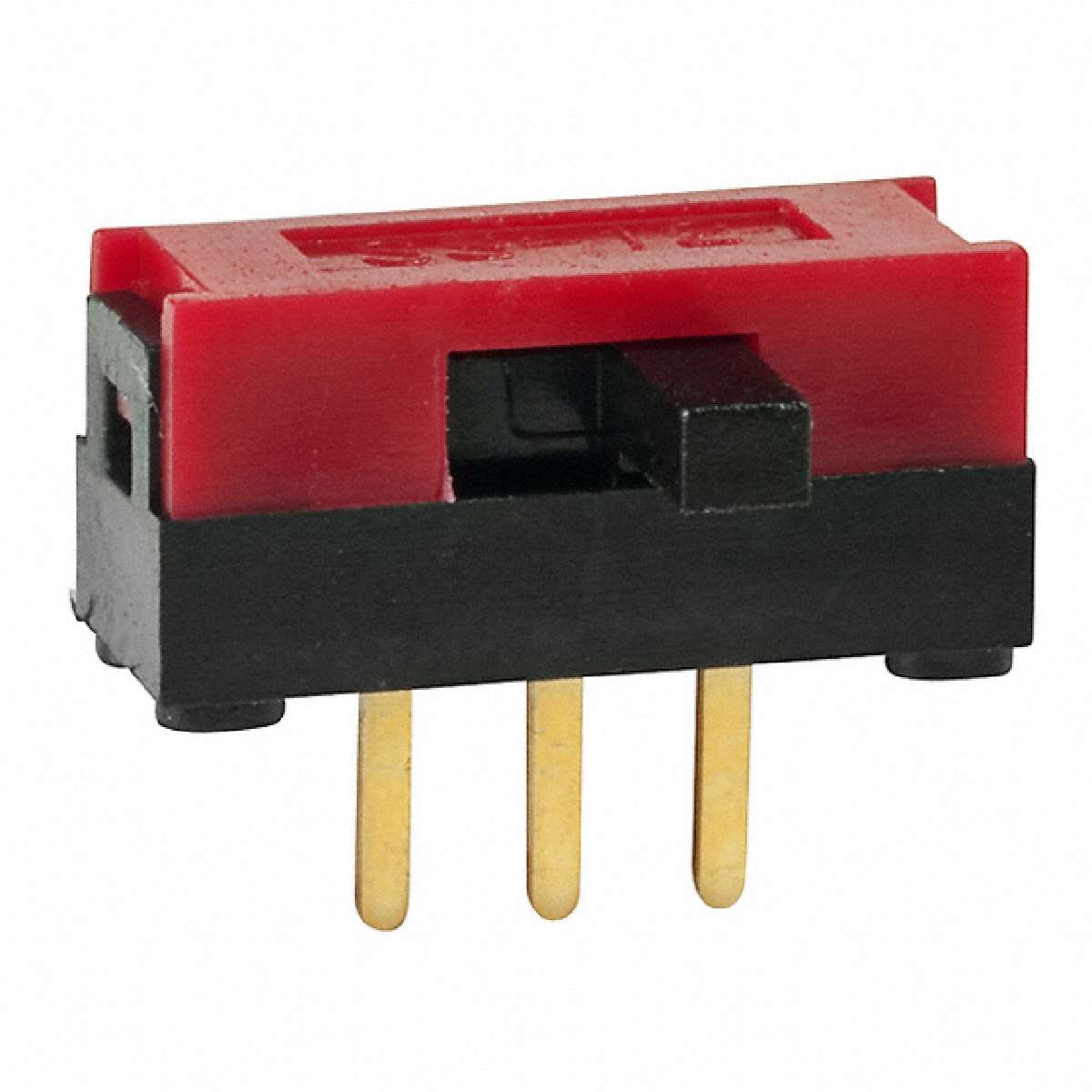

SS Series Ultra Mini SPDT On-None-On Side Actuated Through Hole Slide Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Mounting Angle: | Straight |
|---|---|
| Travel: | 2 mm |
| Manufacturer: | NKK Switches |
| Operating Temperature Range: | - 15 C to + 60 C |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder |
| Product Category: | Slide Switches |
| Contact Plating: | Gold |
| Type: | Ultra-Miniature Slide Switches |
| Mounting Style: | Through Hole |
| Switch Function: | ON - ON |
| Actuator: | Side |
| Voltage Rating AC: | 28 V |
| Contact Form: | SPDT |
| Part # Aliases: | SS-12SBH4 |
| RoHS: | Details |
| Contact Material: | Brass |
| Flammability Rating: | UL 94 V-0 |
| Illumination: | Non-Illuminated |
| Contact Current Rating: | 0.4 VA at 28 VAC/DC |
| ECCN | EAR99 |
