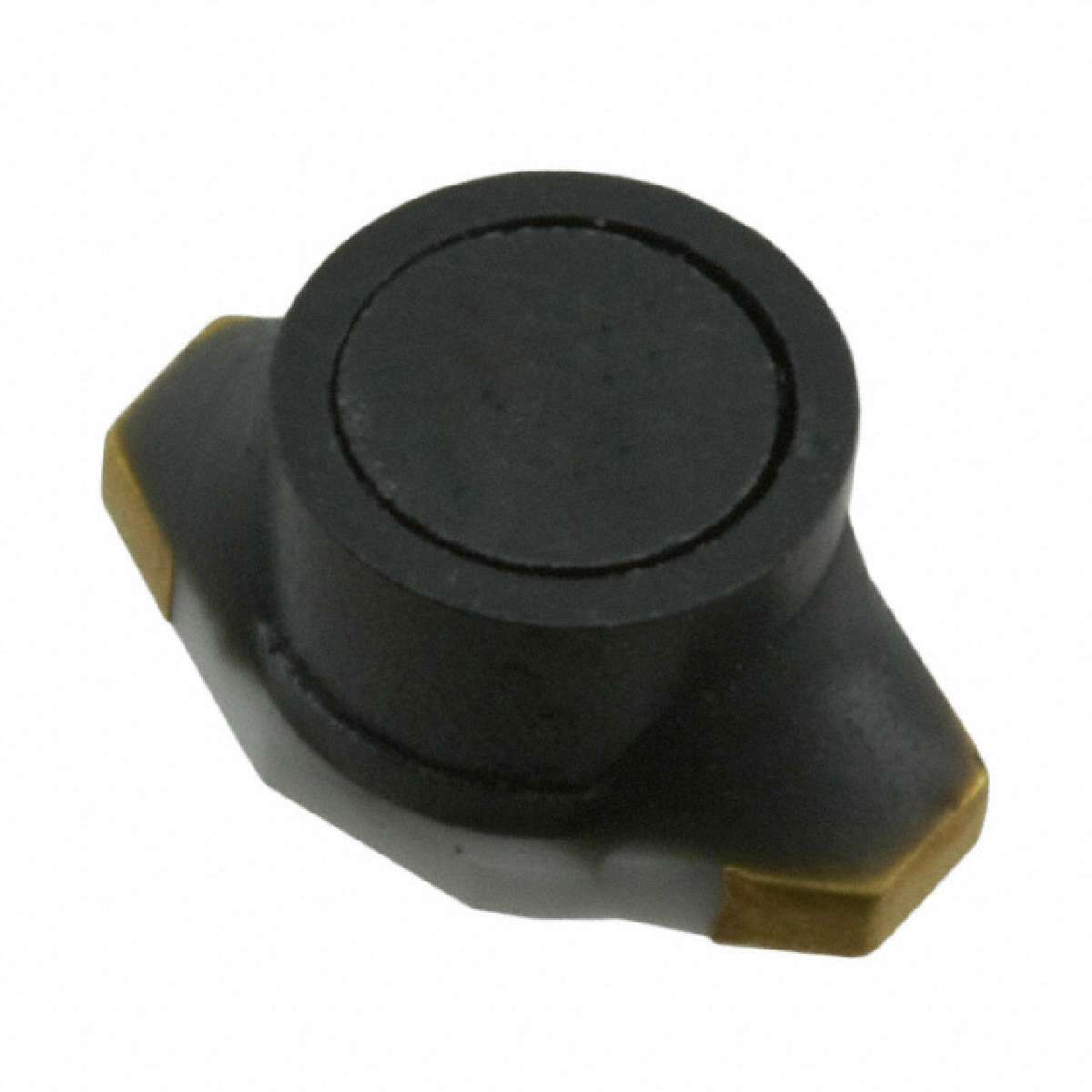

| SRR6603-100ML | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FIXED IND 10UH 1A 75 MOHM SMD
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±20% |
| Frequency - Self Resonant | 38MHz |
| Current - Saturation | 370mA |
| Part Status | Active |
| Manufacturer | Bourns Inc. |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 75 mOhm Max |
| Current Rating | 1A |
| Inductance | 10µH |
| Type | Wirewound |
| Q @ Freq | 40 @ 200kHz |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Series | SRR6603 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
