| SMP3003-DL-1E | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MOSFET PCH 4V DRIVE SERIES
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论

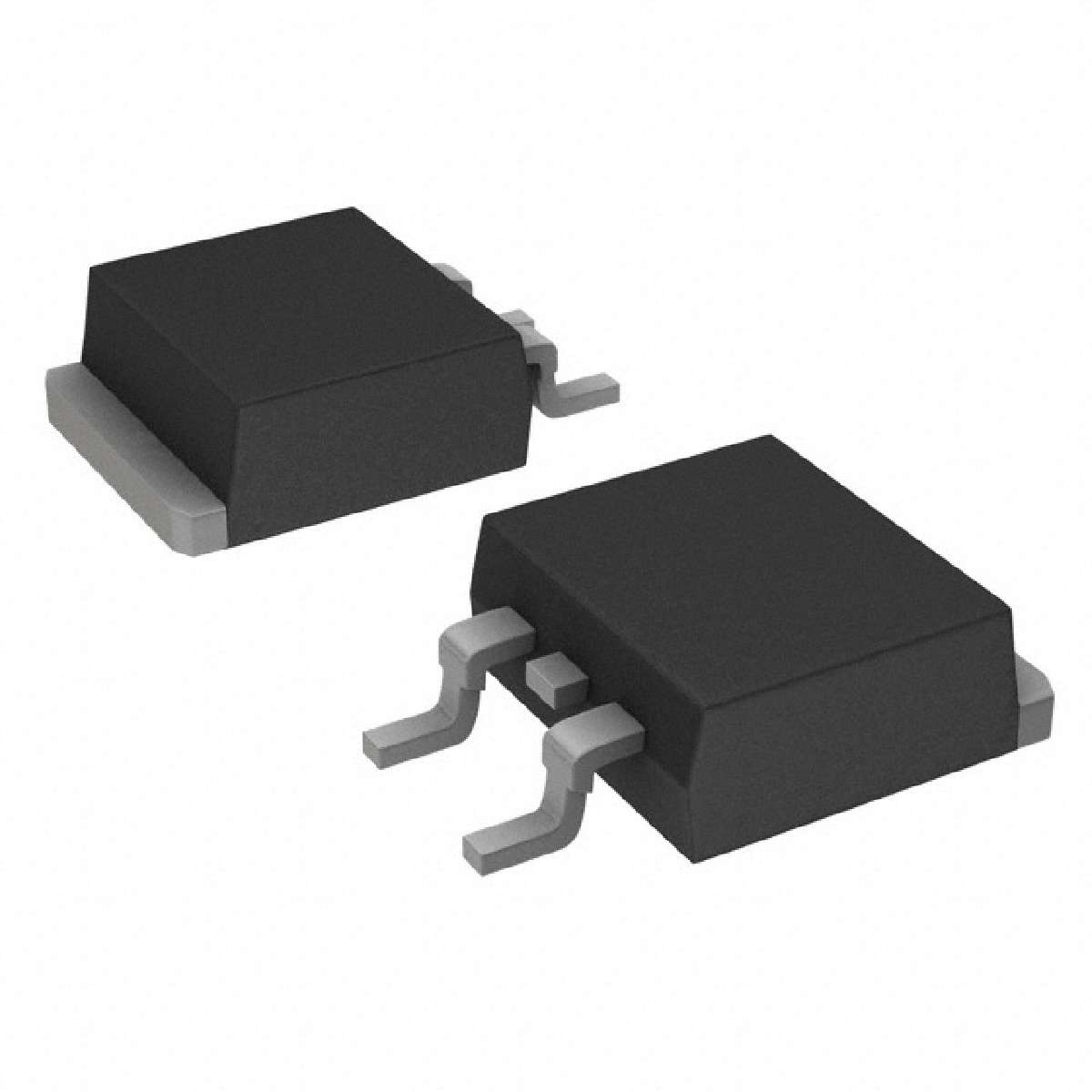

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
|---|---|
| FET Feature | Logic Level Gate, 4V Drive |
| Drain to Source Voltage (Vdss) | 75V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Part Status | Active |
| Manufacturer | ON Semiconductor |
| Family | Transistors - FETs, MOSFETs - Single |
| Operating Temperature | 150°C (TJ) |
| Packaging | Tape & Reel (TR) |
| Rds On (Max) @ Id, Vgs | 8 mOhm @ 50A, 10V |
| Power - Max | 90W |
| Supplier Device Package | TO-263 (D2Pak) |
| Gate Charge (Qg) @ Vgs | 280nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET P-Channel, Metal Oxide |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 13400pF @ 20V |
| ECCN | EAR99 |
