SMLP36RGB2W3
SMLP36RGB2W3
  • 3 (168 Hours)
  • EOL
  • 1510(0604)
  • EAR99

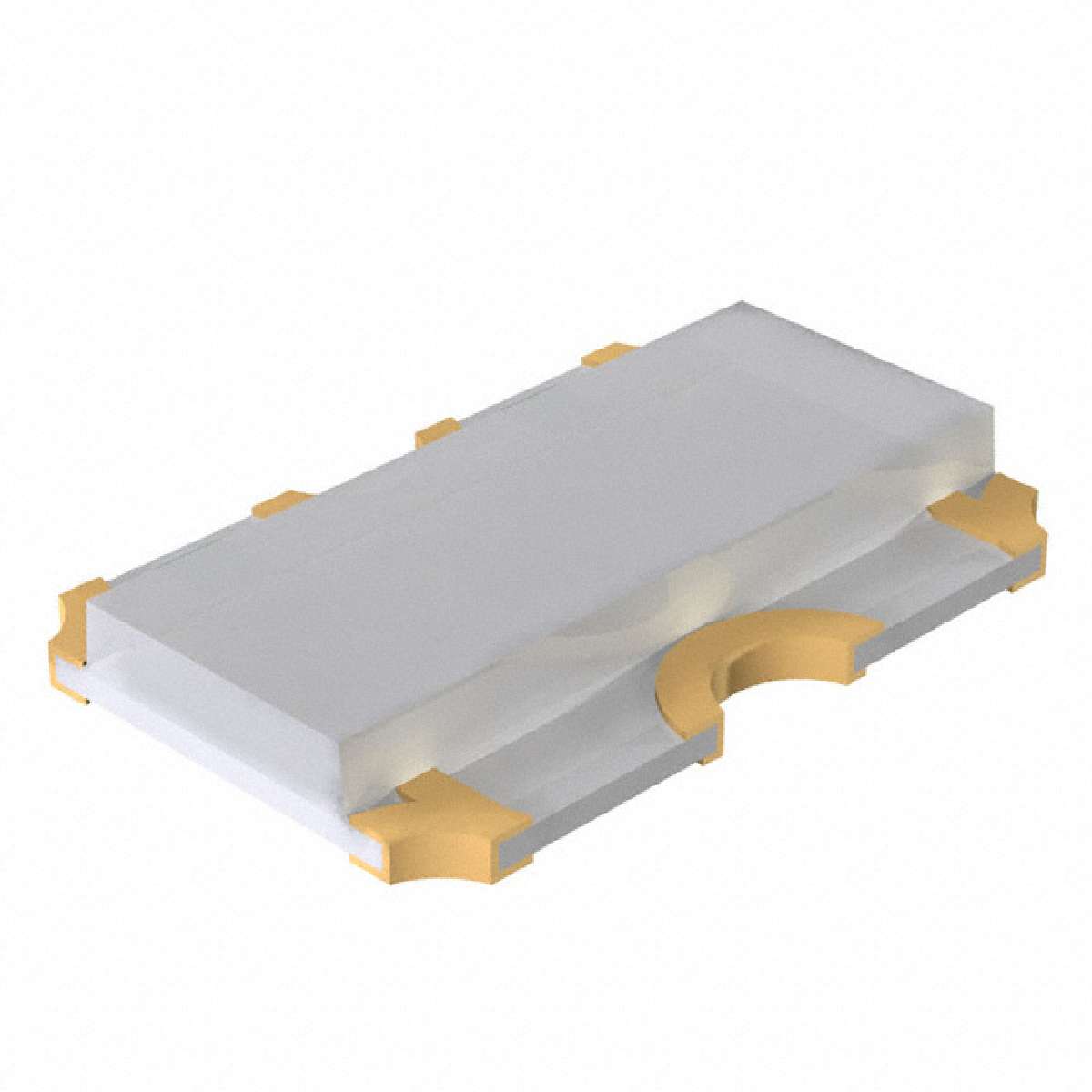

Product description : PicoLed RGB
SPQ:5000
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Orientation: Top View
Packaging: Reel
Manufacturer: ROHM Semiconductor
Luminous Intensity: 35 mcd, 110 mcd, 35 mcd
Minimum Operating Temperature: - 40 C
Brand: ROHM Semiconductor
Tradename: PICOLED
Package / Case: 0604
Product Category: Standard LEDs - SMD
Mounting Style: SMD/SMT
Vf - Forward Voltage: 2.1 V, 3.1 V, 3 V
ECCN EAR99
Configuration Independent
Lens Style Rectangle with Flat Top
Package / Case 0604 (1510 Metric)
Manufacturer Rohm Semiconductor
Voltage - Forward (Vf) (Typ) 2.1V Red, 3.1V Green, 3V Blue
Current - Test 5mA Red, 5mA Green, 5mA Blue
Size / Dimension 1.50mm L x 1.00mm W
Series PicoLED™
Packaging Tape & Reel (TR)
Base Part Number SML-P36
Lens Color/Style: Colorless, Diffused
If - Forward Current: 5 mA
Peak Wavelength: 629 nm
Series: SML-P36RGB2W
Factory Pack Quantity: 5000
Wavelength/Color Temperature: 624 nm, 527 nm, 470 nm
RoHS:  Details
LED Size: 1.5 mm x 1 mm
Illumination Color: RGB
Wavelength: 629 nm
Maximum Operating Temperature: + 85 C
Wavelength - Dominant 624nm Red, 527nm Green, 470nm Blue
Lens Transparency Diffused
Millicandela Rating 35mcd Red, 110mcd Green, 35mcd Blue
Supplier Device Package 1510(0604)
Lead Free Status / RoHS Status 1
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Mounting Type Surface Mount
Height (Max) 0.25mm
Part Status Not For New Designs
Lens Color White
Datasheet:
