SML022BUTT86 | ||
---|---|---|
|
||
|
||
产品描述:

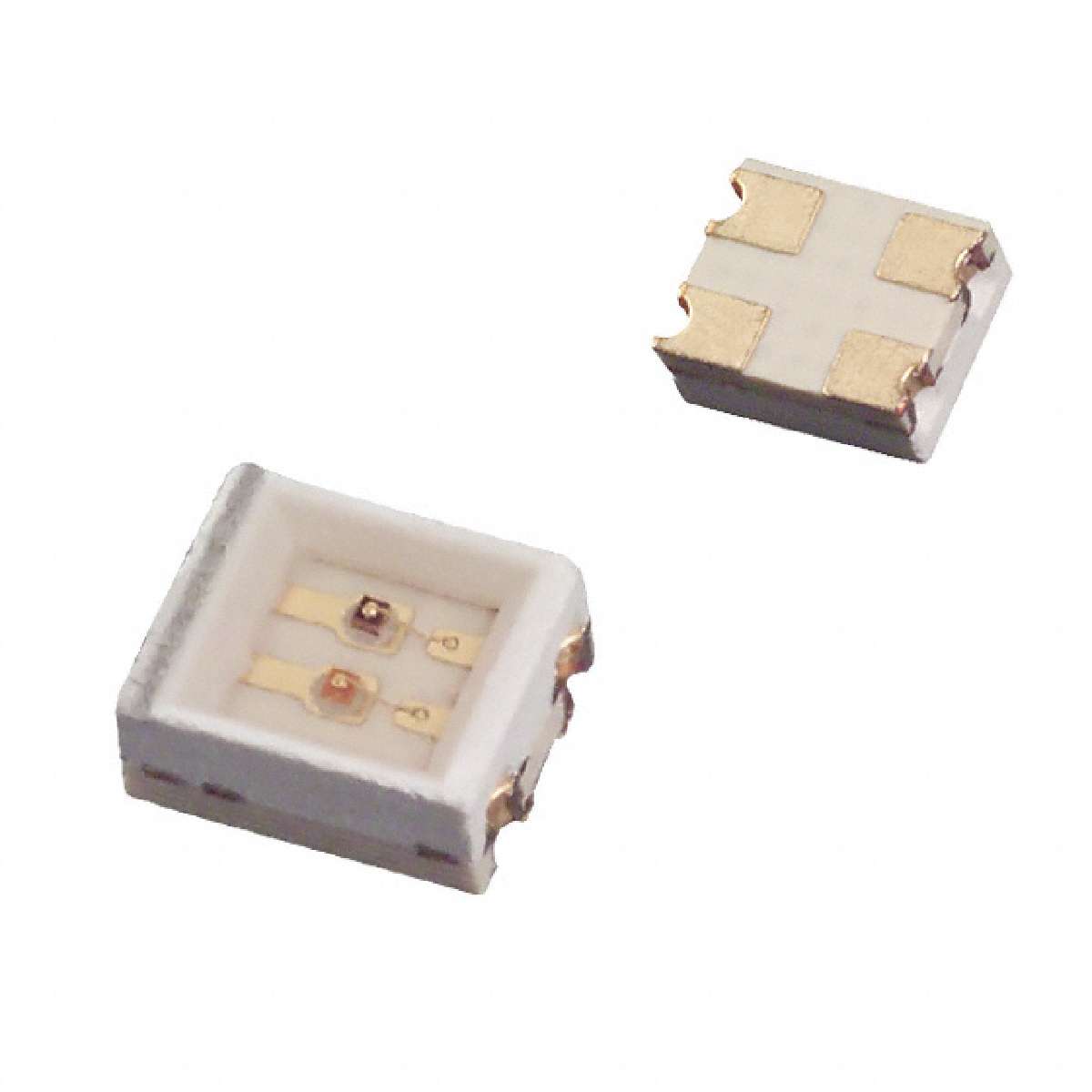

SML-022 Series Blue/Red 1210 Clear 140/220 mcd 3.2/2 V Chip LED with Reflector
|
||
标准包装:2500 | ||
数据手册: -- |
Supplier Device Package | 1210(3025) |
---|---|
Color | Blue, Red |
Part Status | Not For New Designs |
Manufacturer | Rohm Semiconductor |
Lens Color | Colorless |
Voltage - Forward (Vf) (Typ) | 3.2V Blue, 2V Red |
Series | SML-02 |
Height (Max) | 1.50mm |
Lens Transparency | Clear |
Packaging | Cut Tape (CT) |
Configuration | Independent |
Lead Free Status / RoHS Status | 1 |
Base Part Number | SML-02 |
Package / Case | 1210 (3225 Metric) |
Size / Dimension | 3.00mm L x 2.50mm W |
Category | Optoelectronics |
Lens Style/Size | Rectangle with Flat Top, 2.30mm x 2.10mm |
Wavelength - Dominant | 470nm Blue, 624nm Red |
Current - Test | 20mA Blue, 20mA Red |
Family | LED Indication - Discrete |
Mounting Type | Surface Mount |
Millicandela Rating | 140mcd Blue, 220mcd Red |
ECCN | EAR99 |
Lens Style | Rectangle with Flat Top |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
