| SML-P12DTT86 | ||
|---|---|---|
|
||
|
||
| 产品描述：

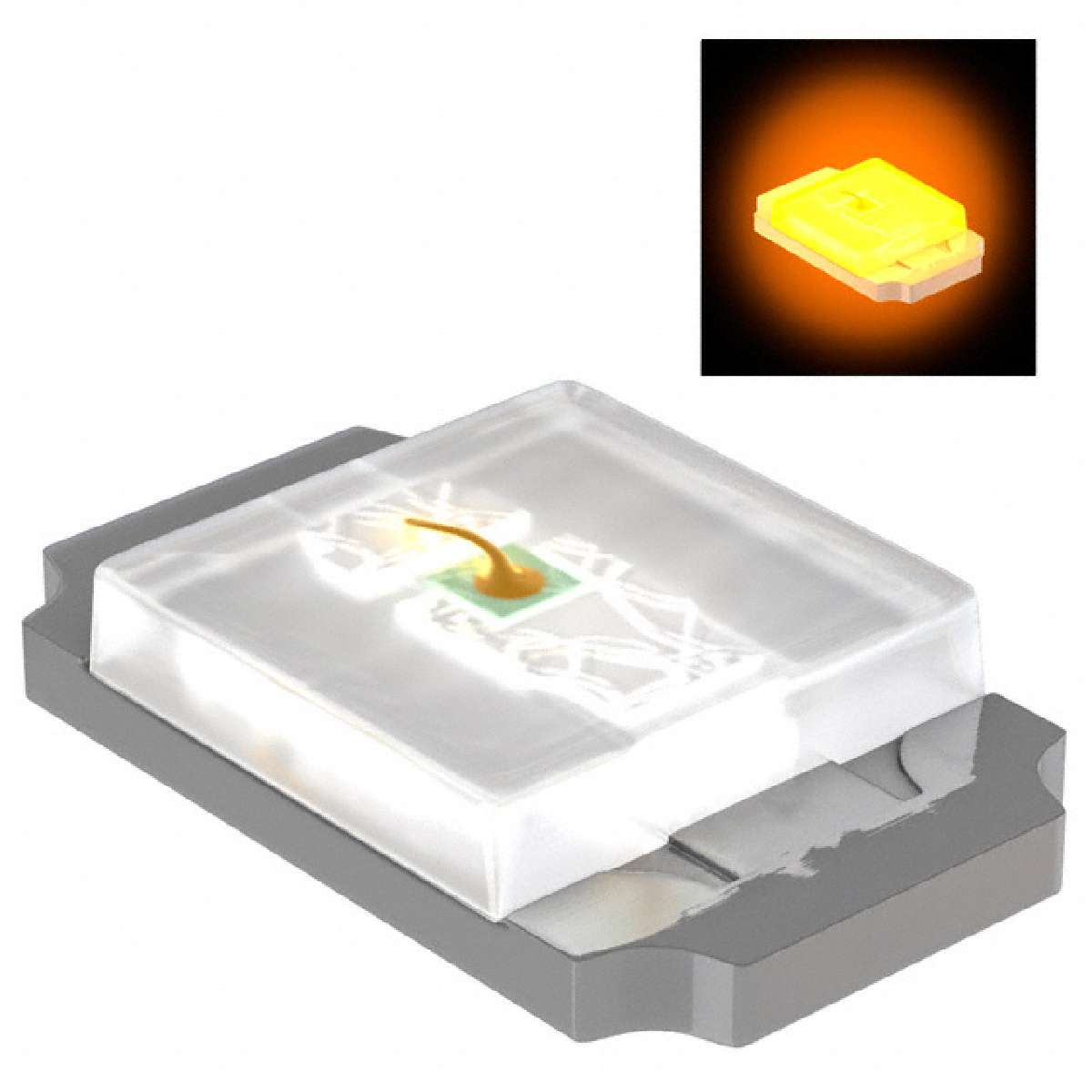

SML-P1 Series Orange 0402 Clear 100 mcd 2.1 V Surface Mount PICOLED™ LED
|
||
| 标准包装：10000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Supplier Device Package | 1006 (0402) |
|---|---|
| Color | Orange |
| Part Status | Not For New Designs |
| Manufacturer | Rohm Semiconductor |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Series | PicoLED™ |
| Height (Max) | 0.25mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
| Configuration | Standard |
| Lead Free Status / RoHS Status | 1 |
| Base Part Number | SML-P12 |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 1.00mm L x 0.60mm W |
| Category | Optoelectronics |
| Lens Style/Size | Square with Flat Top, 0.60mm |
| Wavelength - Dominant | 605nm |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| ECCN | EAR99 |
| Lens Style | Square with Flat Top |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.34984
￥2.9056490391922836
See more prices
| 348+ | $0.34984 |
|---|---|
| 500+ | $0.33728 |
| 1000+ | $0.32628 |
| 2500+ | $0.31651 |
| 5000+ | $0.30814 |
| 10000+ | $0.30055 |
| stock | 17500 | Update On 2024-11-15 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 10000/348 | |
| Location | -- | |
| DateCode | 2201 |
