| SML-LXL1206SYC-TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

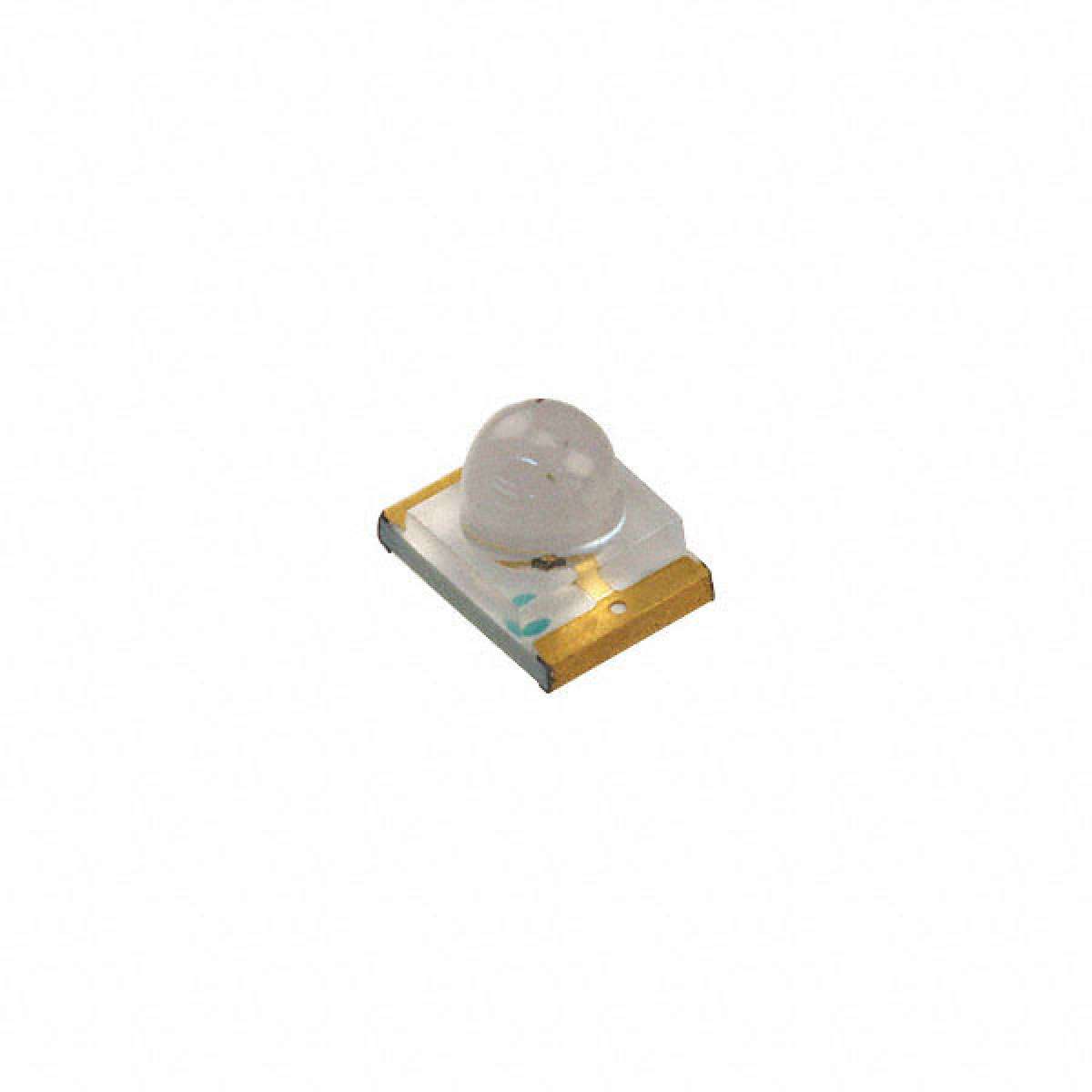

Super Yellow 3 x 1.6 mm 20° Water Clear 75 mcd 2 V PCB Surface Mount LED
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 1206 (3216 Metric) |
|---|---|
| Supplier Device Package | 1206 |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Category | Optoelectronics |
| Lens Style/Size | Round with Flat Top, 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Wavelength - Peak | 590nm |
| Height (Max) | 1.50mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
| Viewing Angle | 20° |
| Color | Yellow |
| Part Status | Active |
| Manufacturer | Lumex Opto/Components Inc. |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 75mcd |
| ECCN | EAR99 |
