| SMD1150PL-TP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

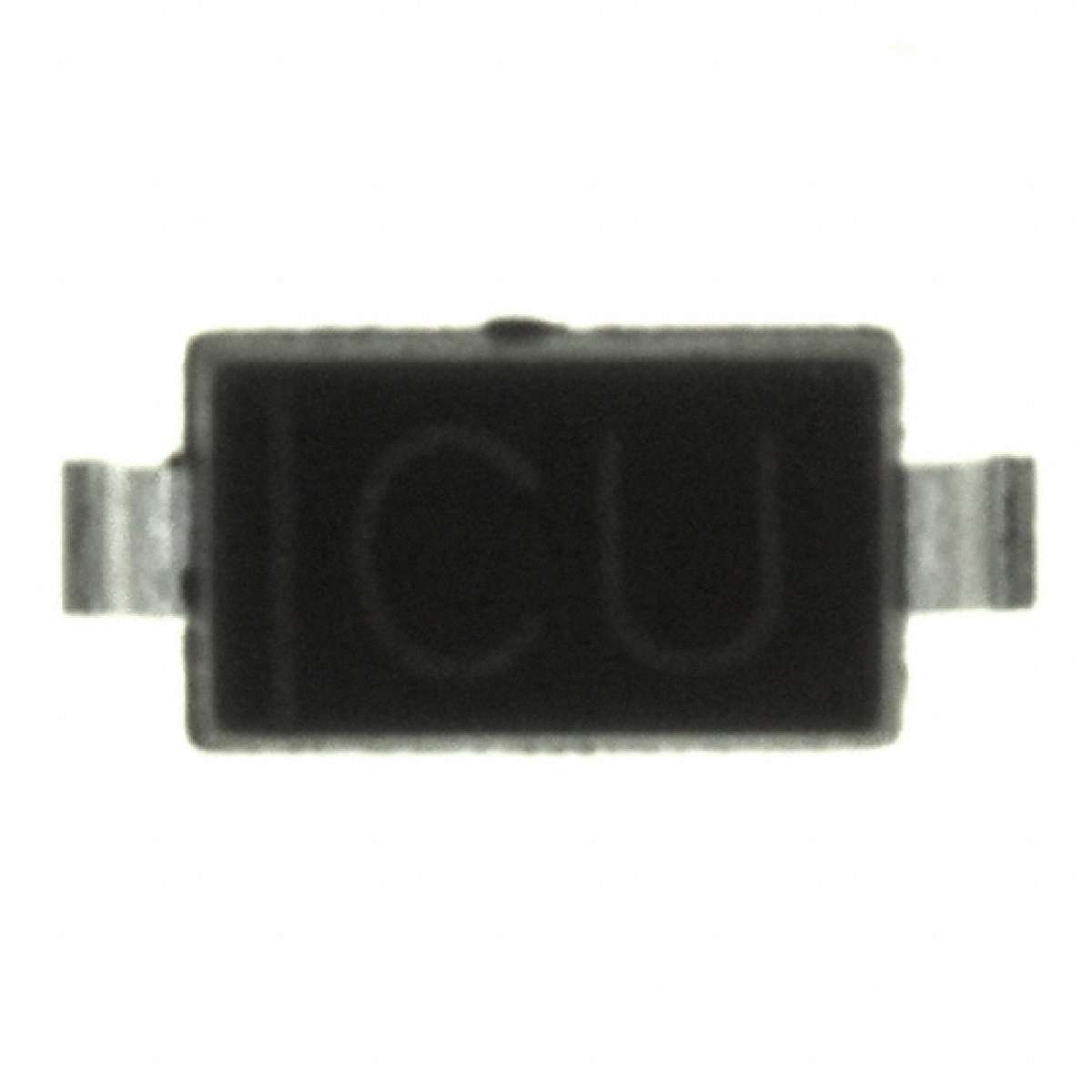

SMD1150PL Series 150 V 1 A Surface Mount Schottky Rectifier - SOD-123FL
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -55°C ~ 125°C |
|---|---|
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Supplier Device Package | SOD-123FL |
| Diode Type | Schottky |
| Category | Discrete Semiconductor Products |
| Current - Reverse Leakage @ Vr | 500µA @ 150V |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 850mV @ 1A |
| ECCN | EAR99 |
| Current - Average Rectified (Io) | 1A |
| Package / Case | SOD-123F |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | Micro Commercial Co |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 150V |
| Packaging | Digi-Reel® |
