| SM1204BC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

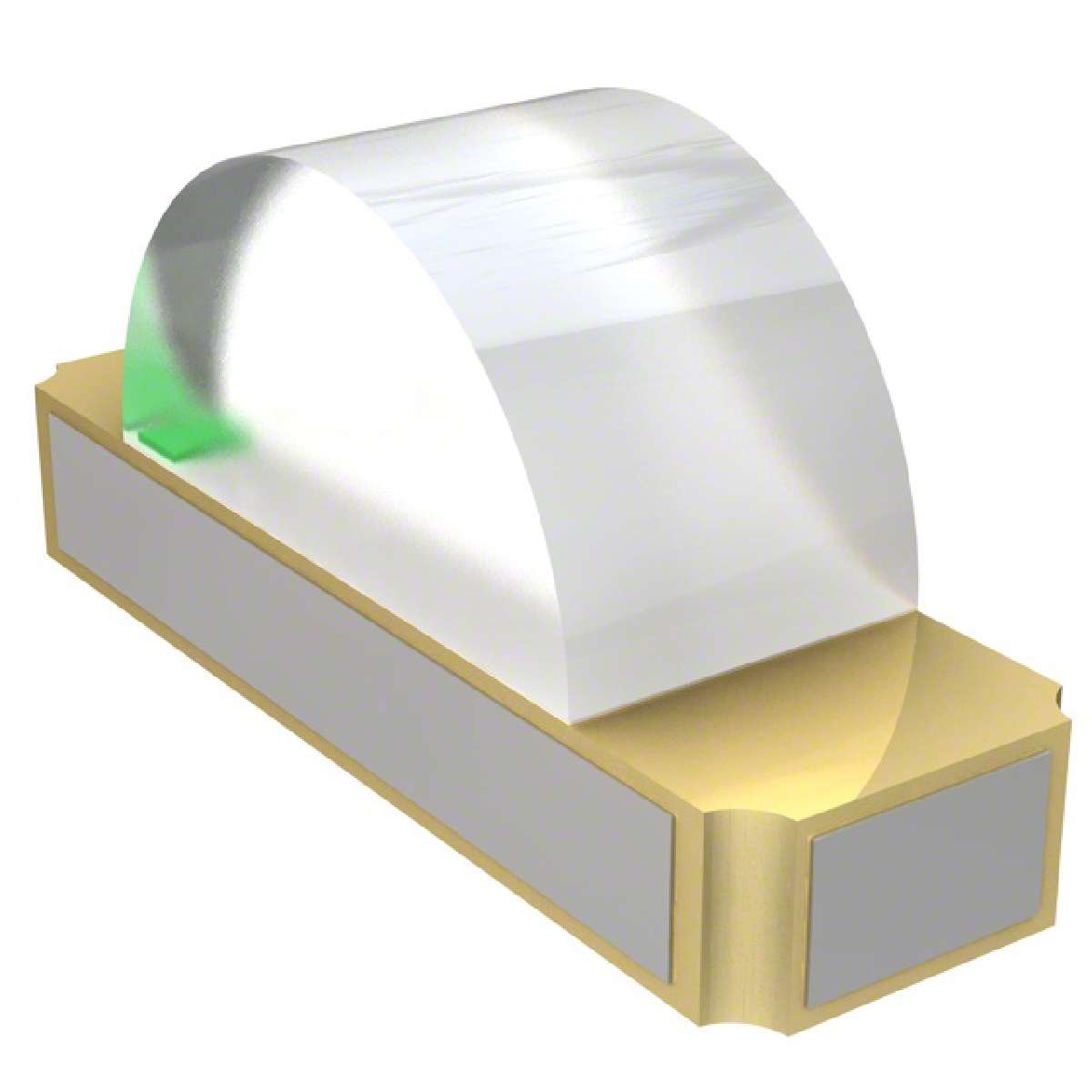

Red/Green 1204 130° 7.2 mcd / 18 mcd Clear 2 V Surface Mount LED
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Water Clear |
|---|---|
| Viewing Angle: | 130 deg |
| Power Rating: | 69 mW, 78 mW |
| Minimum Operating Temperature: | - 30 C |
| LED Size: | 3.2 mm x 1.5 mm x 1 mm |
| Illumination Color: | Red, Green |
| Lens Shape: | Semitube |
| Mounting Style: | SMD/SMT |
| Orientation: | Side View |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 640 nm, 568 nm |
| Factory Pack Quantity: | 3000 |
| RoHS: | Details |
| Type: | Right Angle SMD LEDs |
| Maximum Operating Temperature: | + 80 C |
| Width: | 1.5 mm |
| Packaging: | Reel |
| Luminous Intensity: | 7.2 mcd, 18 mcd |
| Wavelength/Color Temperature: | 628 nm, 570 nm |
| Package / Case: | Side Looker |
| Height: | 1 mm |
| Lens Dimensions: | 2 mm x 1 mm |
| Vf - Forward Voltage: | 2 V, 2 V |
| Length: | 3.2 mm |
| Manufacturer: | BIVAR |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Bivar |
| Product Category: | Standard LEDs - SMD |
| Wavelength: | 628 nm, 570 nm |
| ECCN | EAR99 |
