| SFH21-PPPN-D22-ID-BK | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

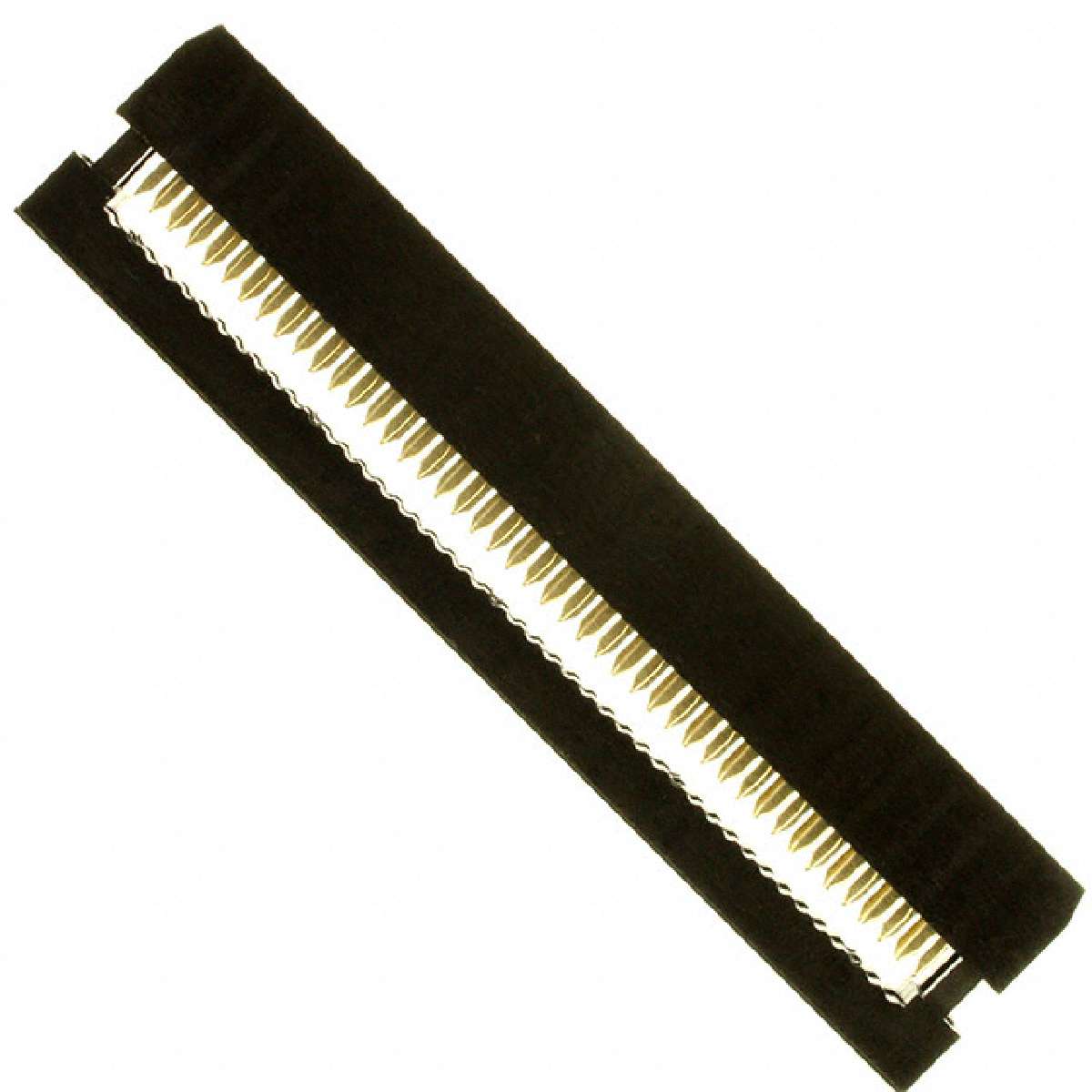

44 Position Total Dual Row 2 mm Pitch Insulation Displacement Female Box Header
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Row Spacing | 0.079" (2.00mm) |
|---|---|
| Contact Type | Female Socket |
| Color | Black |
| Part Status | Active |
| Manufacturer | Sullins Connector Solutions |
| Number of Positions | 44 |
| Wire Gauge | 26-28 AWG |
| Connector Type | Header |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 2 |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Wire Type | Ribbon Cable |
| Features | Feed Through, Polarizing Key |
| Category | Connectors, Interconnects |
| Series | SFH21 |
| Family | Rectangular Connectors - Free Hanging, Panel Mount |
| Mounting Type | Free Hanging (In-Line) |
| Contact Finish Thickness | Flash |
| Packaging | Tray |
| Cable Termination | IDC |
