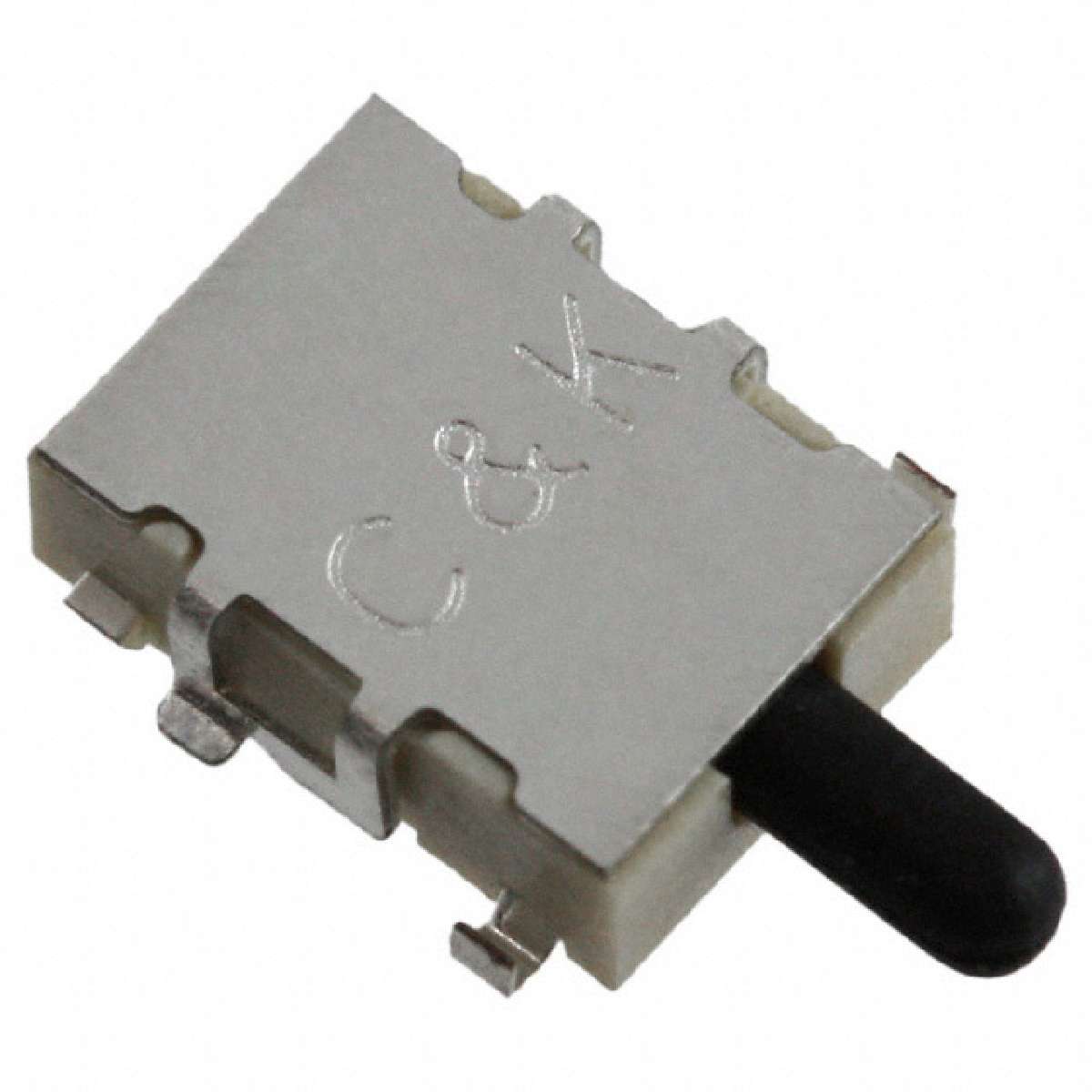

| SDS002R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Switch: detecting; Pos: 2; SPST-NC; 0.1A/12VDC; Leads: for PCB
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Actuator Type | Overtravel Plunger |
|---|---|
| Switch Function | On-Mom |
| Voltage Rating - DC | 12V |
| Operating Force, Torque | 75gf |
| Category | Switches |
| Series | SDS |
| Family | Snap Action, Limit Switches |
| Overtravel | 0.079" (2.0mm) |
| Packaging | Tape & Reel (TR) |
| ECCN | EAR99 |
| Circuit | SPST-NC |
| Termination Style | SMD (SMT) Tab |
| Part Status | Active |
| Electrical Life | 50,000 Cycles |
| Manufacturer | C&K Components |
| Mechanical Life | 50,000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating | 100mA (DC) |
