| SD6030-3R3-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

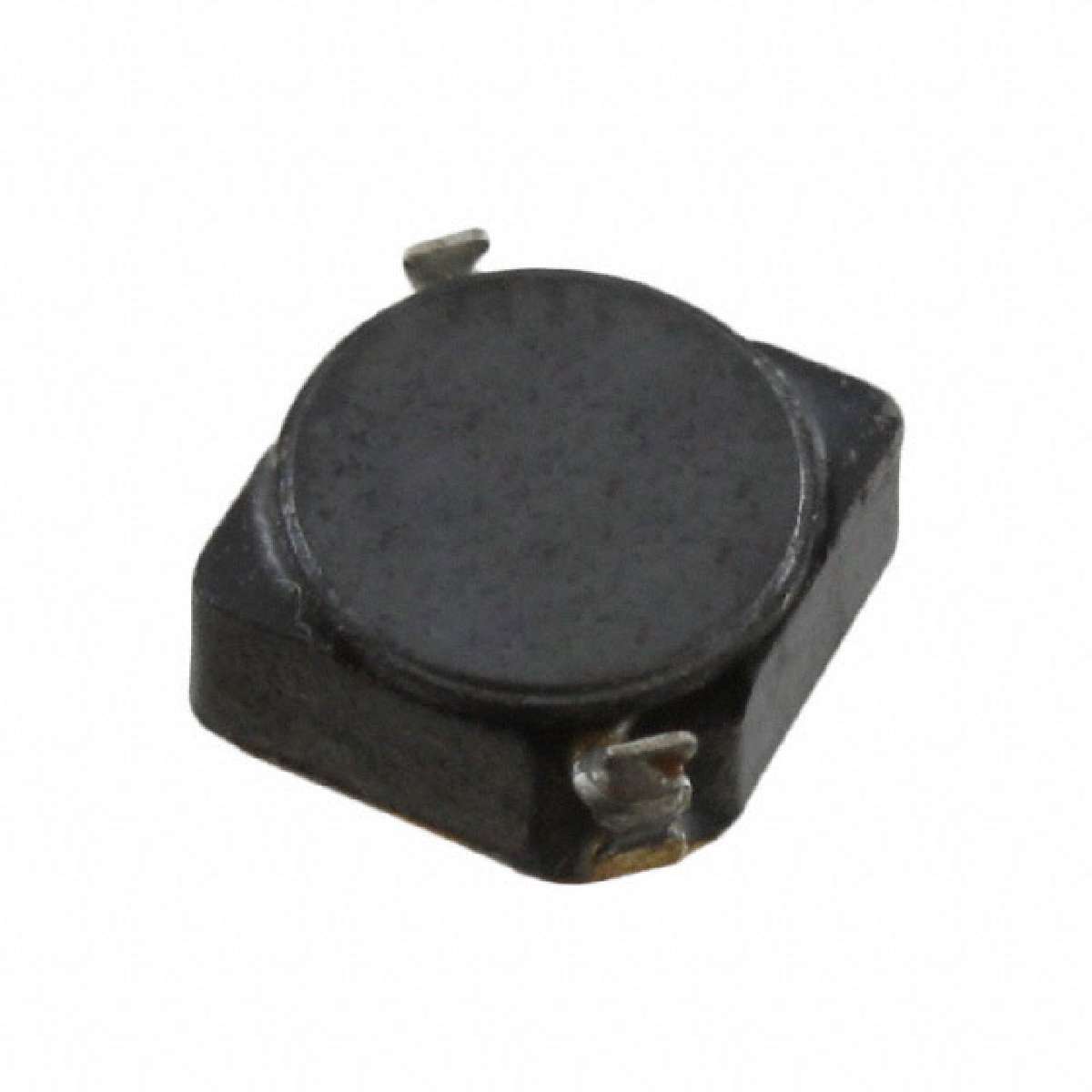

SD6030 Series 3.3 uH ±30% Tolerance 2.4A Shielded SMT Low Profile Power Inductor
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±30% |
| Current - Saturation | 2.4A |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 24 mOhm Max |
| Current Rating | 3.54A |
| ECCN | EAR99 |
| Inductance | 3.3µH |
| Type | Wirewound |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Series | SD6030 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
