| SD53-470-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

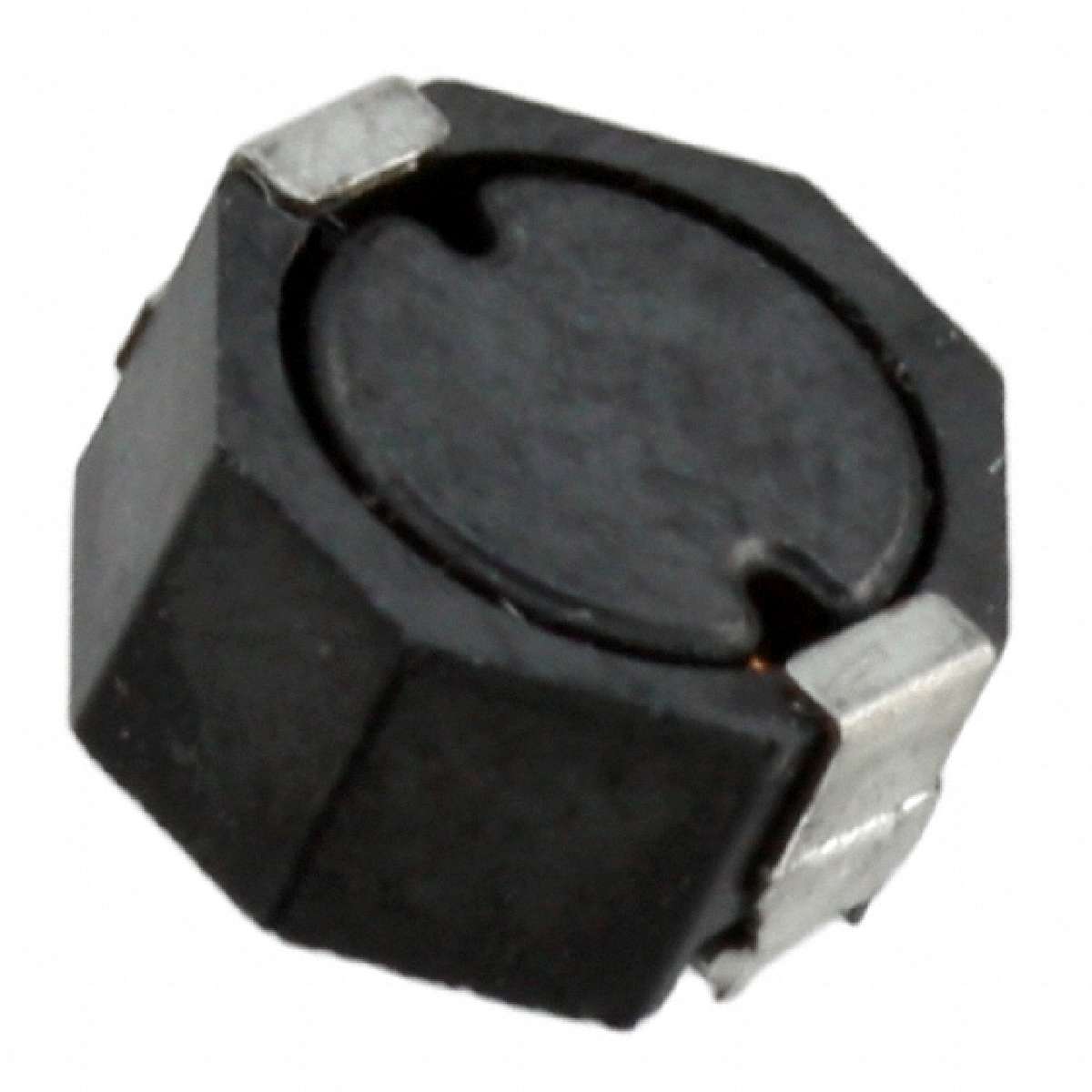

SD53 Series 47 uH ±20 % Tolerance 0.64 A Shielded SMT Low Profile Power Inductor
|
||
| 标准包装：2600 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±20% |
| Current - Saturation | 640mA |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 352 mOhm Max |
| Current Rating | 640mA |
| ECCN | EAR99 |
| Inductance | 47µH |
| Type | Wirewound |
| Size / Dimension | 0.204" L x 0.204" W (5.20mm x 5.20mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Series | SD53 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Digi-Reel® |
| Frequency - Test | 100kHz |
