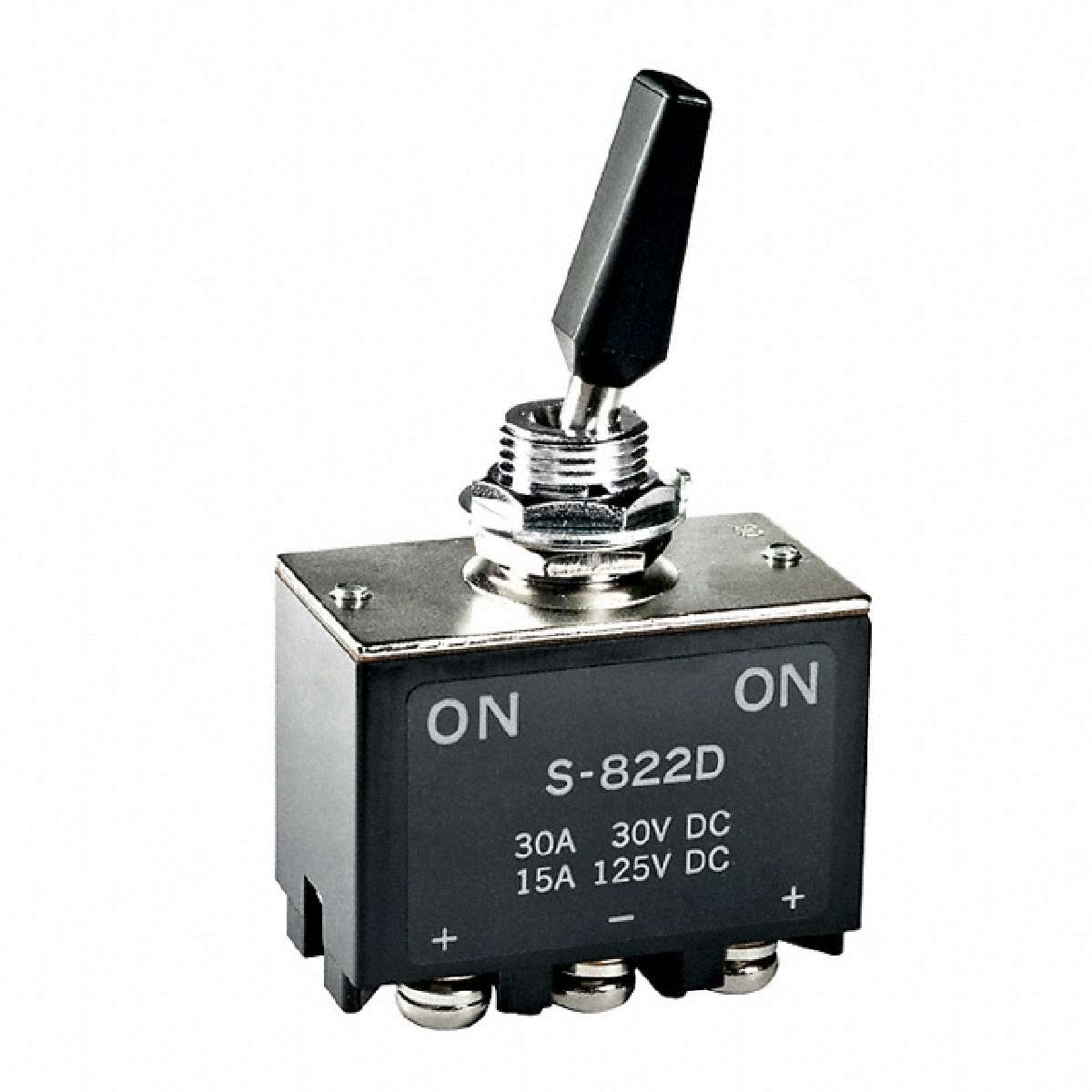

| S822D | ||
|---|---|---|
|
|
||
|
||
| Product description : S Series DPDT On-None-On Solder Lug High Capacity Toggle Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Bulk |
|---|---|
| Terminal Seal: | Sealed |
| Actuator: | Bat |
| Voltage Rating AC: | 125 V, 250 V |
| Operating Temperature Range: | - 10 C to + 70 C |
| Voltage Rating DC: | 30 VDC |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Screw |
| Product Category: | Toggle Switches |
| Contact Plating: | Nickel |
| Type: | High capacity standard size toggles |
| ECCN | EAR99 |
| Housing Material: | Phenolic Resin |
| Switch Function: | ON - ON |
| Manufacturer: | NKK Switches |
| Series: | S |
| Bushing Size: | M12 |
| Contact Form: | DPDT |
| Part # Aliases: | S-822D |
| RoHS: | Details |
| Contact Material: | Silver |
| Current Rating: | 30 A |
| Life: | 10000 Cycles |
| Mounting Style: | Panel |
