| S332T | ||
|---|---|---|
|
|
||
|
||

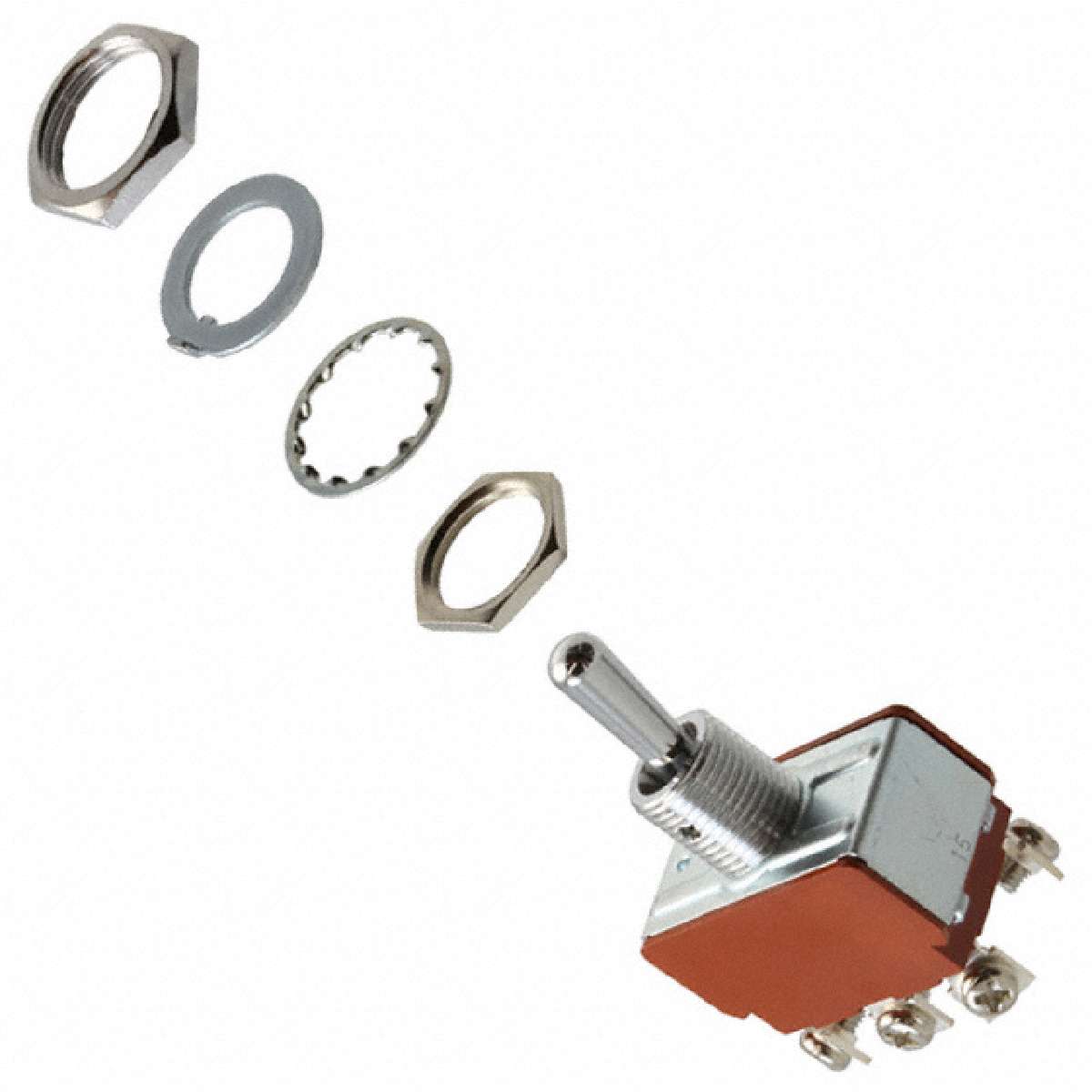

| Product description : S Series Medium-High Capacity DPDT On-None-On Screw Lug Toggle Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Switch Function | On-On |
|---|---|
| Voltage Rating - DC | 30V |
| Manufacturer | NKK Switches |
| Actuator Material | Brass, Chrome Plated |
| Circuit | DPDT |
| Actuator Length | 17.50mm |
| Bushing Thread | M12 x 1 |
| Category | Switches |
| Series | S300 |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Current Rating | 15A (AC), 20A (DC) |
| Termination Style | Screw Terminal |
| Electrical Life | 25,000 Cycles |
| Mounting Type | Panel Mount |
| Packaging | Bulk |
| Actuator Type | Standard Round |
| Voltage Rating - AC | 125V |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Family | Toggle Switches |
| Operating Temperature | -10°C ~ 70°C |
| ECCN | EAR99 |
