| S29PL127J70BAI000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

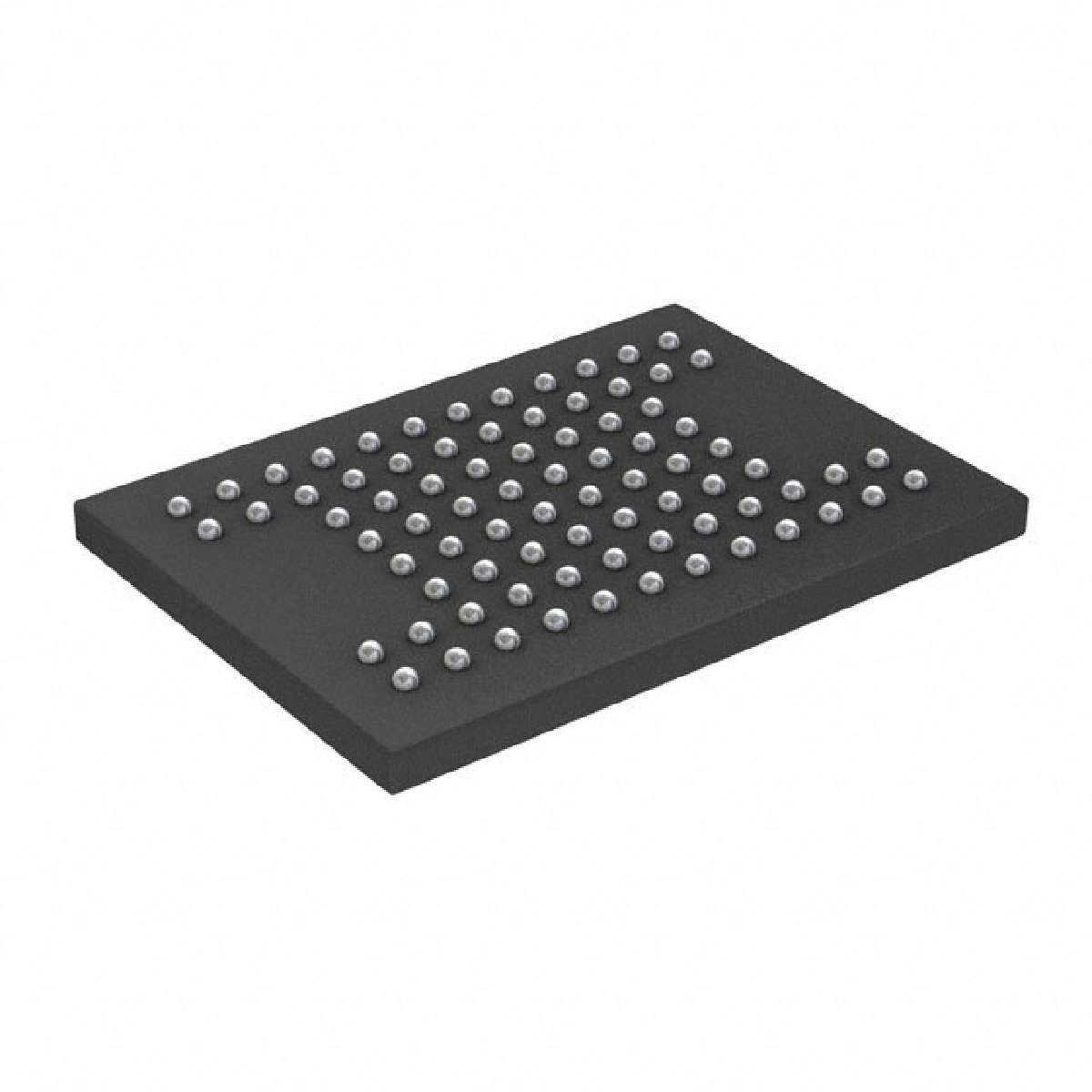

S29PL-J Series 128 Mb (8M x 16) 3.6 V Flash with Enhanced VersatileIO? - FBGA-80
|
||
| 标准包装：210 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Tray |
|---|---|
| Memory Size: | 128 Mbit |
| Organization: | 8 M x 16 |
| Interface Type: | Parallel |
| Minimum Operating Temperature: | - 40 C |
| Factory Pack Quantity: | 210 |
| Supply Voltage - Min: | 2.7 V |
| Memory Type: | NOR |
| Supply Current - Max: | 55 mA |
| Data Bus Width: | 16 bit |
| Architecture: | Sector |
| Mounting Style: | SMD/SMT |
| Timing Type: | Asynchronous |
| Manufacturer: | Cypress Semiconductor |
| Speed: | 70 ns |
| Series: | S29PL-J |
| Operating Temperature Range: | - 40 C to + 85 C |
| Brand: | Cypress Semiconductor |
| RoHS: | No |
| Package / Case: | BGA-80 |
| Product Category: | Flash Memory |
| Supply Voltage - Max: | 3.6 V |
| Unit Weight: | 0.001894 oz |
| ECCN | 3A991.b.1.a |
