| VSLY3850 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

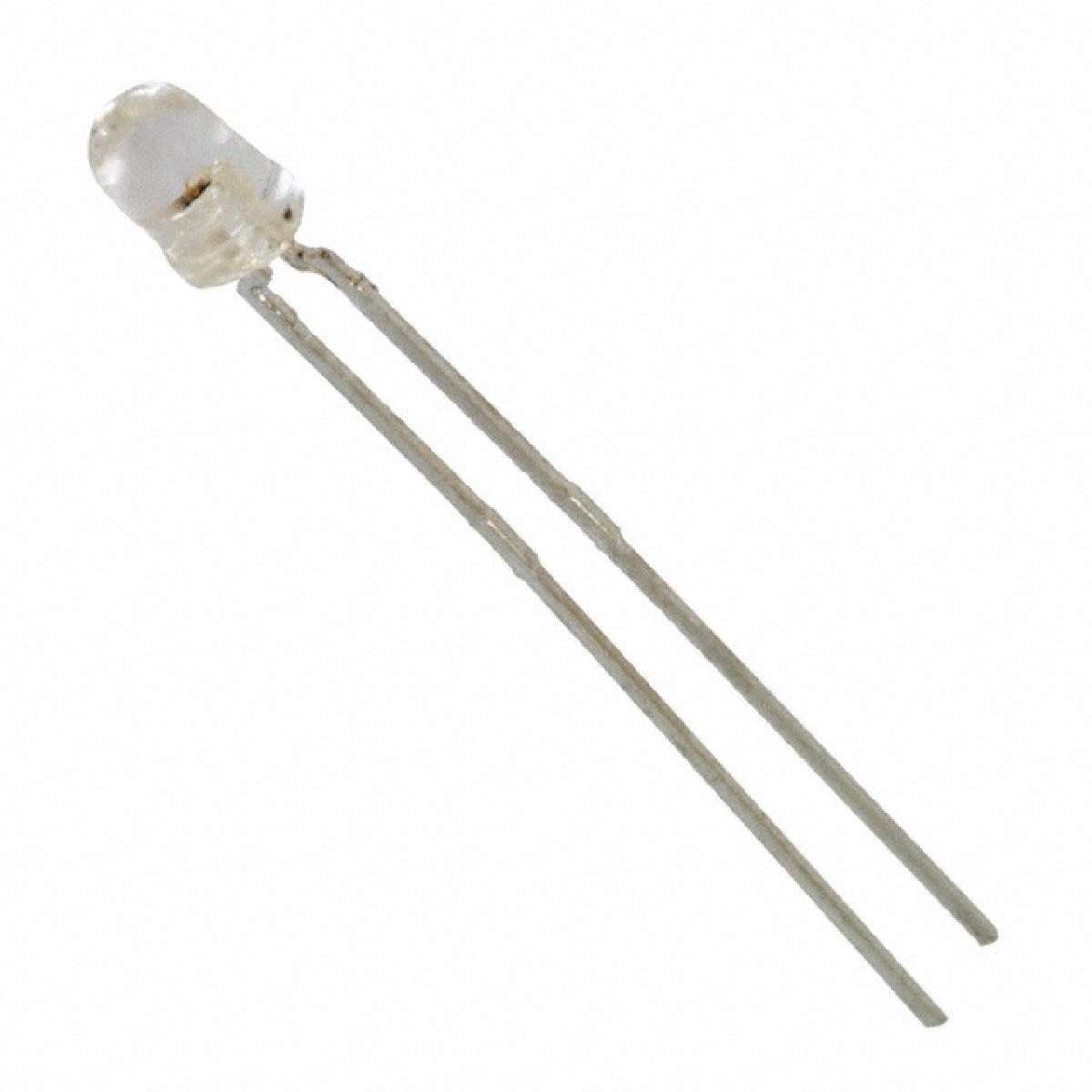

Ø3 mm ±18° 850 nm 70 mW/sr 10 ns Clear Infrared Emitter Diode - T-1
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Viewing Angle | 36° |
|---|---|
| Package / Case | Radial |
| Type | Infrared (IR) |
| Category | Optoelectronics |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 100mA |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| ECCN | EAR99 |
| Radiant Intensity (Ie) Min @ If | 35mW/sr @ 100mA |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | SurfLight™ |
| Family | Infrared, UV, Visible Emitters |
| Wavelength | 850nm |
| Packaging | Bulk |
