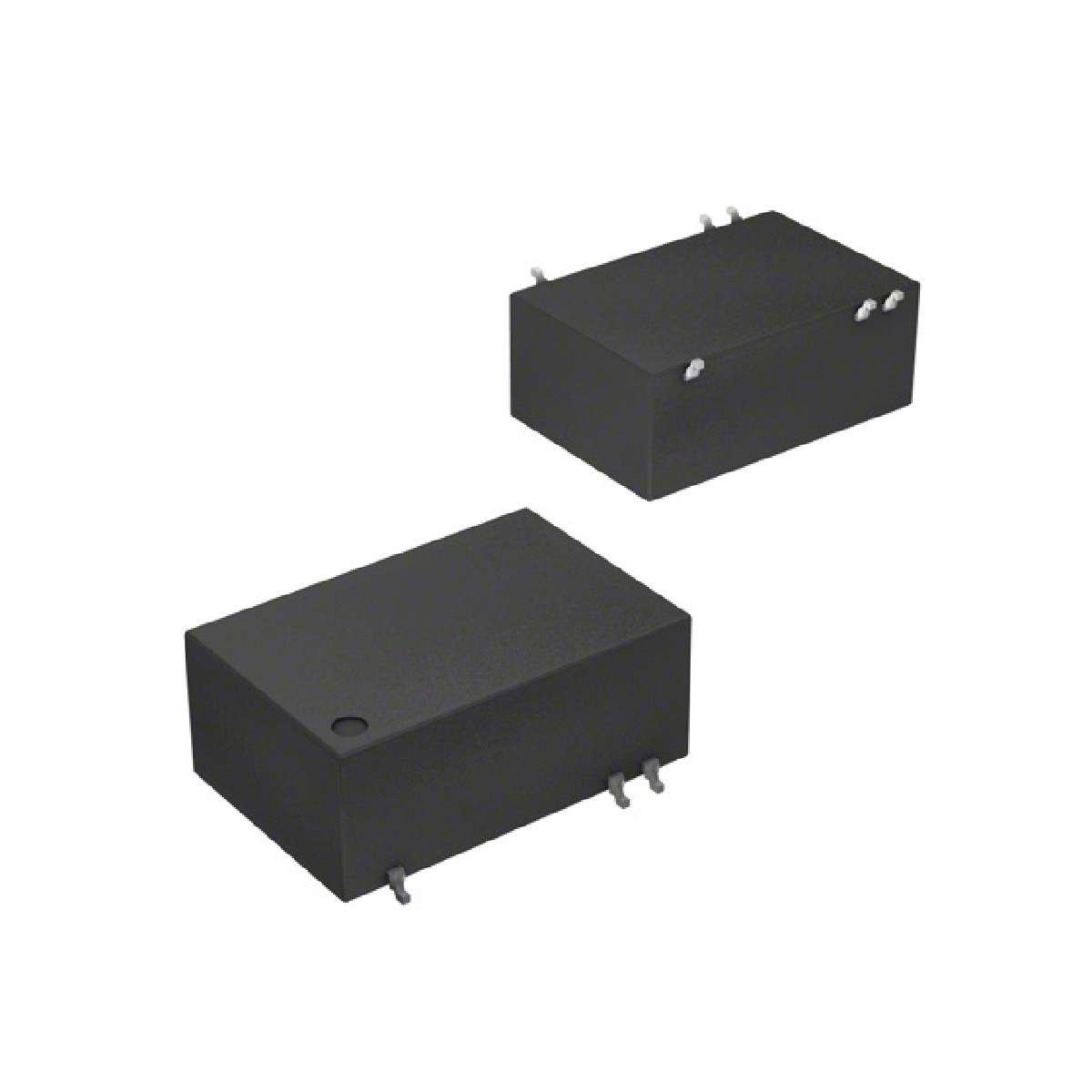

| RW2-1212S/H2/SMD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
9 - 18 Vin 12 Vo 166 A 2 W 2 kVDC Isolation ECONOLINE SMT DC/DC Converter
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 2kV (2000V) |
|---|---|
| Package / Case | 16-SMD Module (6 Leads) |
| Current - Output (Max) | 166mA |
| Features | SCP |
| Part Status | Active |
| Efficiency | 80% |
| Voltage - Input (Max) | 18V |
| Series | ECONOLINE RW2 |
| Voltage - Input (Min) | 9V |
| Mounting Type | Surface Mount |
| Power (Watts) - Max | 2W |
| ECCN | EAR99 |
| Number of Outputs | 1 |
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 2W |
| Size / Dimension | 0.95" L x 0.57" W x 0.40" H (24.2mm x 14.5mm x 10.2mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Recom Power |
| Voltage - Output 1 | 12V |
| Family | DC DC Converters |
| Applications | ITE (Commercial), Medical |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
