RSC141D1000-116 specifications -Ameya360 electronic components purchase network


RSC141D1000-116

ACTIVE EAR99

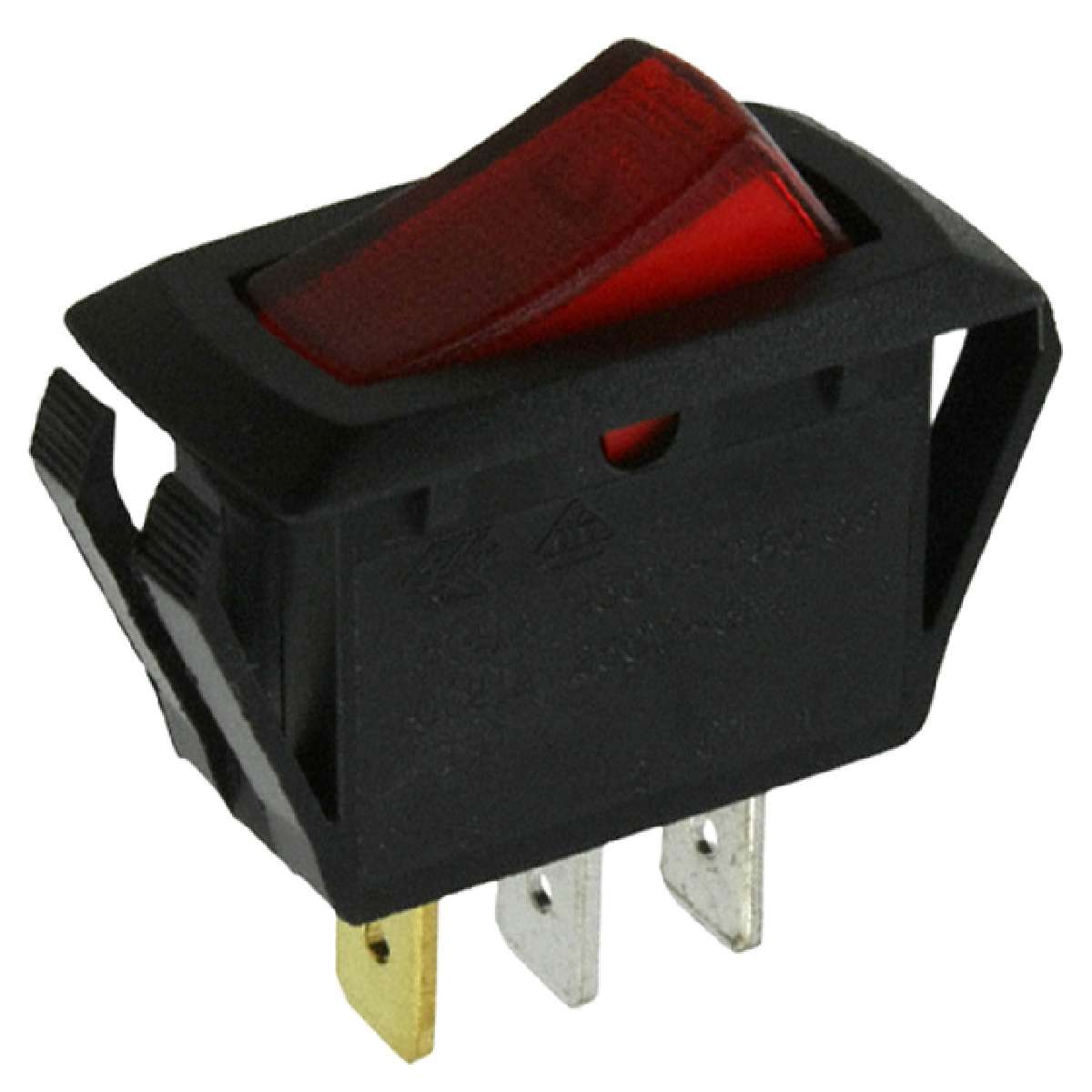

Product description : RSC Series 20 A SPST Off-On Quick Connect Panel Mount Rocker Switch
SPQ：250
Datasheet : RSC141D1000-116.pdf

Illumination Voltage (Nominal)	125 VAC
Actuator Type	Concave (Curved) - Illuminated
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Illumination Type, Color	Neon, Red
Manufacturer	E-Switch
Color - Actuator/Cap	Red
Family	Rocker Switches
Mounting Type	Panel Mount, Snap-In
Packaging	Bulk
ECCN	EAR99
Circuit	SPST
Actuator Marking	No Marking
Voltage Rating - AC	125V
Part Status	Active
Electrical Life	10,000 Cycles
Category	Switches
Series	RSC, LAMB
Panel Cutout Dimensions	Rectangular - 28.60mm x 13.90mm
Operating Temperature	-20°C ~ 105°C
Current Rating	20A (AC)

Datasheet： RSC141D1000-116.pdf
