| RP30-2405SE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

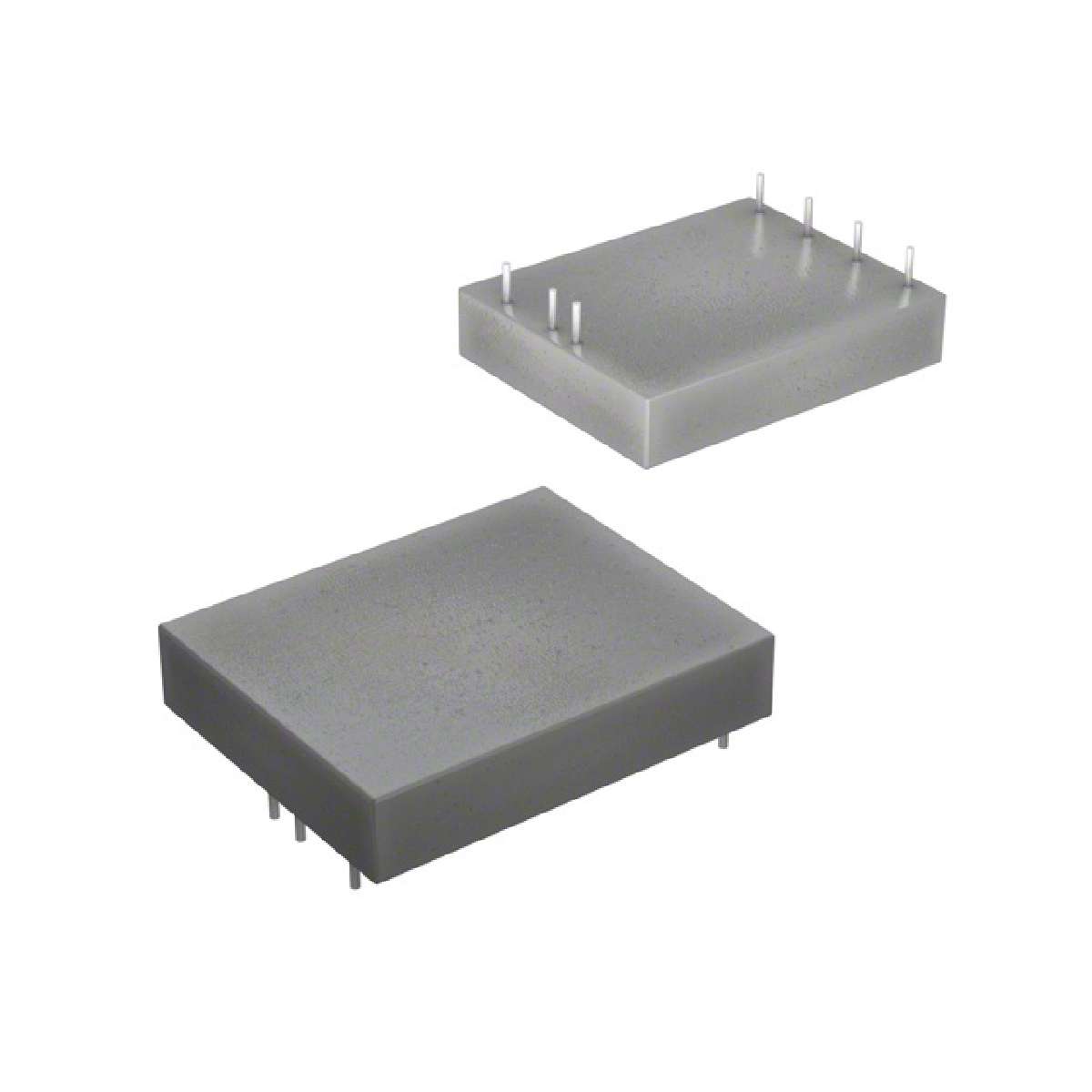

30W 隔离式直流-直流转换器 / Vout 5V dc, 6A
|
||
| 标准包装：5 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 1.6kV (1600V) |
|---|---|
| Package / Case | 8-DIP Module (7 Leads) |
| Current - Output (Max) | 6A |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Part Status | Active |
| Efficiency | 88% |
| Voltage - Input (Max) | 36V |
| Series | POWERLINE RP30-E |
| Voltage - Input (Min) | 18V |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 30W |
| ECCN | ECL99 |
| Number of Outputs | 1 |
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 30W |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Recom Power |
| Voltage - Output 1 | 5V |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
