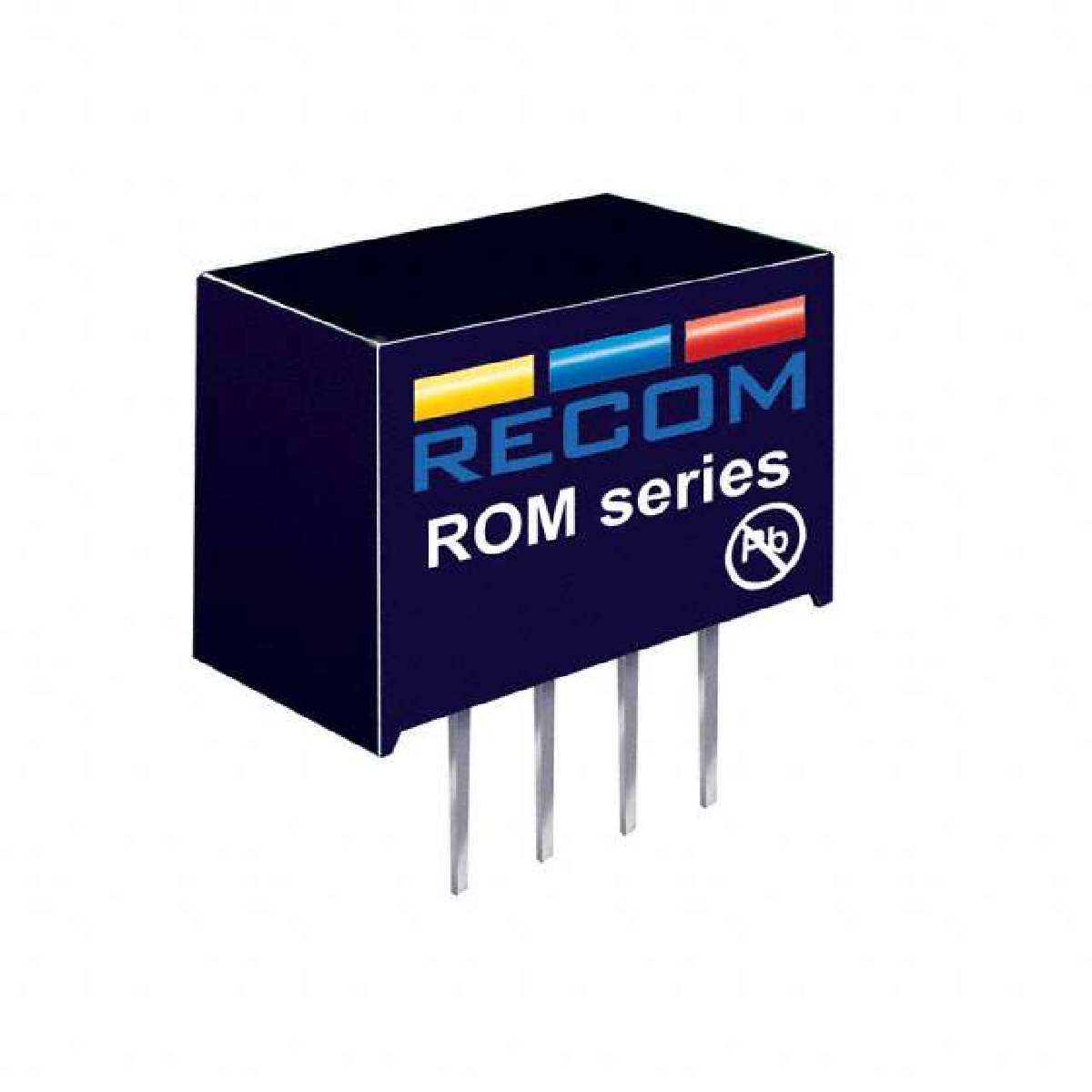

| ROM-0512S | ||
|---|---|---|
|
|
||
|
||
| Product description : Converter: DC/DC; 1W; Uin: 4.5÷5.5V; Uout: 12VDC; Iout: 83mA; SIP4 | ||
| SPQ：42 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 3kV (3000V) |
|---|---|
| Package / Case | 4-SIP Module |
| Current - Output (Max) | 83mA |
| Features | SCP |
| Part Status | Active |
| Efficiency | 82% |
| Voltage - Input (Max) | 5.5V |
| Series | ECONOLINE ROM |
| Voltage - Input (Min) | 4.5V |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 1W |
| ECCN | EAR99 |
| Number of Outputs | 1 |
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 1W |
| Size / Dimension | 0.45" L x 0.24" W x 0.30" H (11.5mm x 6.1mm x 7.7mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Recom Power |
| Voltage - Output 1 | 12V |
| Family | DC DC Converters |
| Applications | ITE (Commercial), Medical |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
