| RGEF800 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

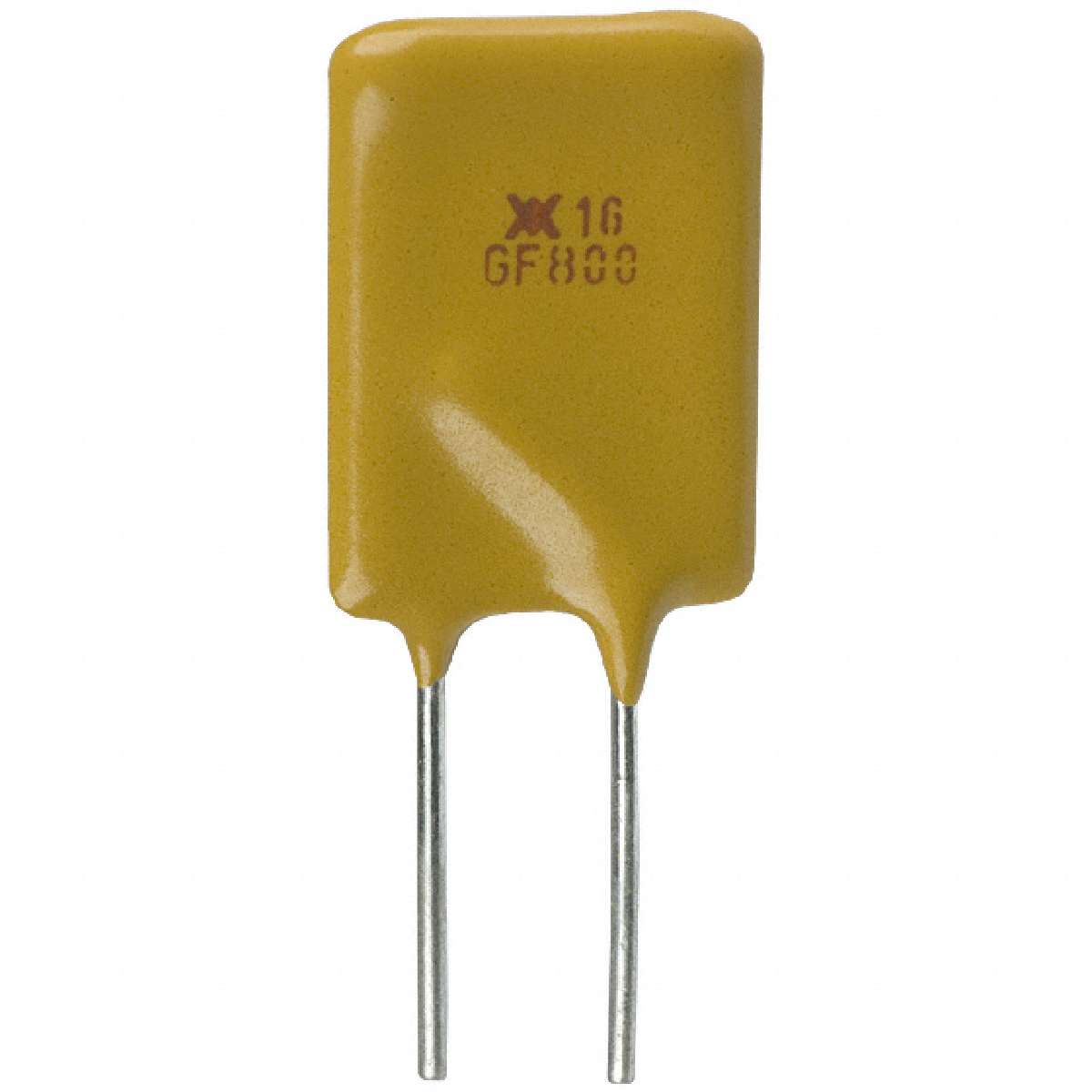

RGEF Series 16 V 8 A Ihold Through Hole Radial PolySwitch Resettable Fuse
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Length: | 20.9 mm |
|---|---|
| Width: | 12.7 mm |
| Trip Current: | 13.6 A |
| Resistance: | 0.0175 Ohms |
| Pd - Power Dissipation: | 3 W |
| Factory Pack Quantity: | 500 |
| Brand: | TE Connectivity / Raychem |
| Termination Style: | Radial |
| Height: | 3 mm |
| Hold Current: | 8 A |
| Type: | PolySwitch Resettable Fuses |
| ECCN | EAR99 |
| Packaging: | Bulk |
| Maximum Voltage: | 16 VDC |
| Manufacturer: | TE Connectivity |
| Series: | RGEF |
| Operating Temperature Range: | - 40 C to + 85 C |
| Part # Aliases: | F21464-000 RF3207-000 |
| RoHS: | Details |
| Product Category: | Resettable Fuses - PPTC |
| Current Rating - Max: | 100 A |
| Lead Spacing: | 5.8 mm |
| Mounting Style: | Through Hole |
