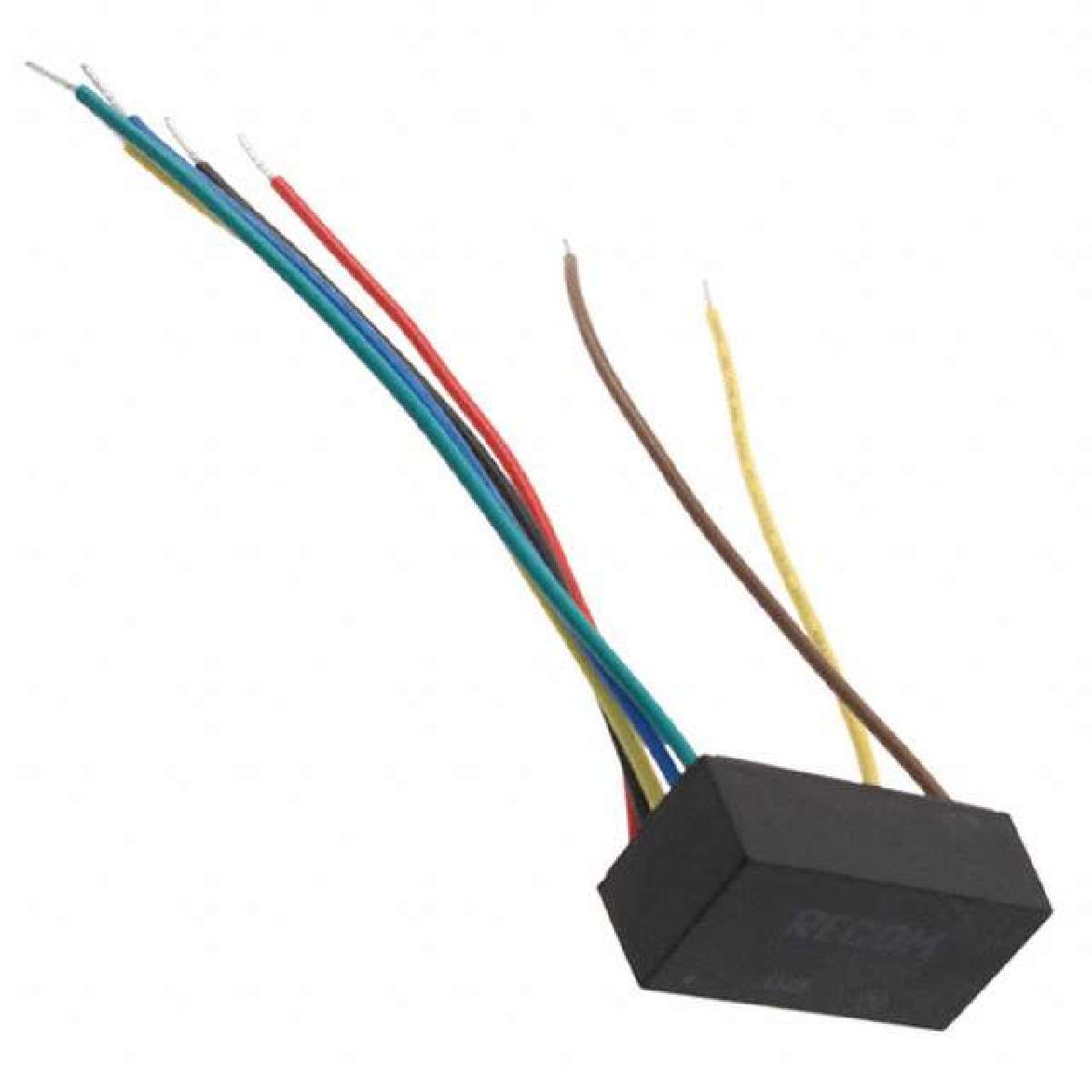

| RCD-48-0.50/W | ||
|---|---|---|
|
|
||
|
||
| Product description : RCD-48 28W Series DC/DC Power Supply | ||
| SPQ：12 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Number of Outputs | 1 |
|---|---|
| Topology | Buck |
| Termination Style | Wire Leads |
| Approvals | EN, UL |
| Size / Dimension | 1.28" L x 0.66" W x 0.44" H (32.6mm x 16.7mm x 11.1mm) |
| Category | Power Supplies - External/Internal (Off-Board) |
| Manufacturer | Recom Power |
| Voltage - Input (Max) | 60V |
| Series | LIGHTLINE RCD-48 |
| Family | LED Drivers |
| Mounting Type | Chassis Mount |
| ECCN | EAR99 |
| Type | Constant Current |
| Current - Output (Max) | 500mA |
| Voltage - Output | 2 ~ 56 V |
| Features | Remote On/Off, OTP, SCP |
| Part Status | Active |
| Efficiency | 96% |
| Weight | 0.036 lb (16.33g) |
| Dimming | Analog, PWM |
| Power (Watts) | 28W |
| Voltage - Input (Min) | 9V |
| Operating Temperature | -40°C ~ 80°C |
