| R82EC1100AA50J | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

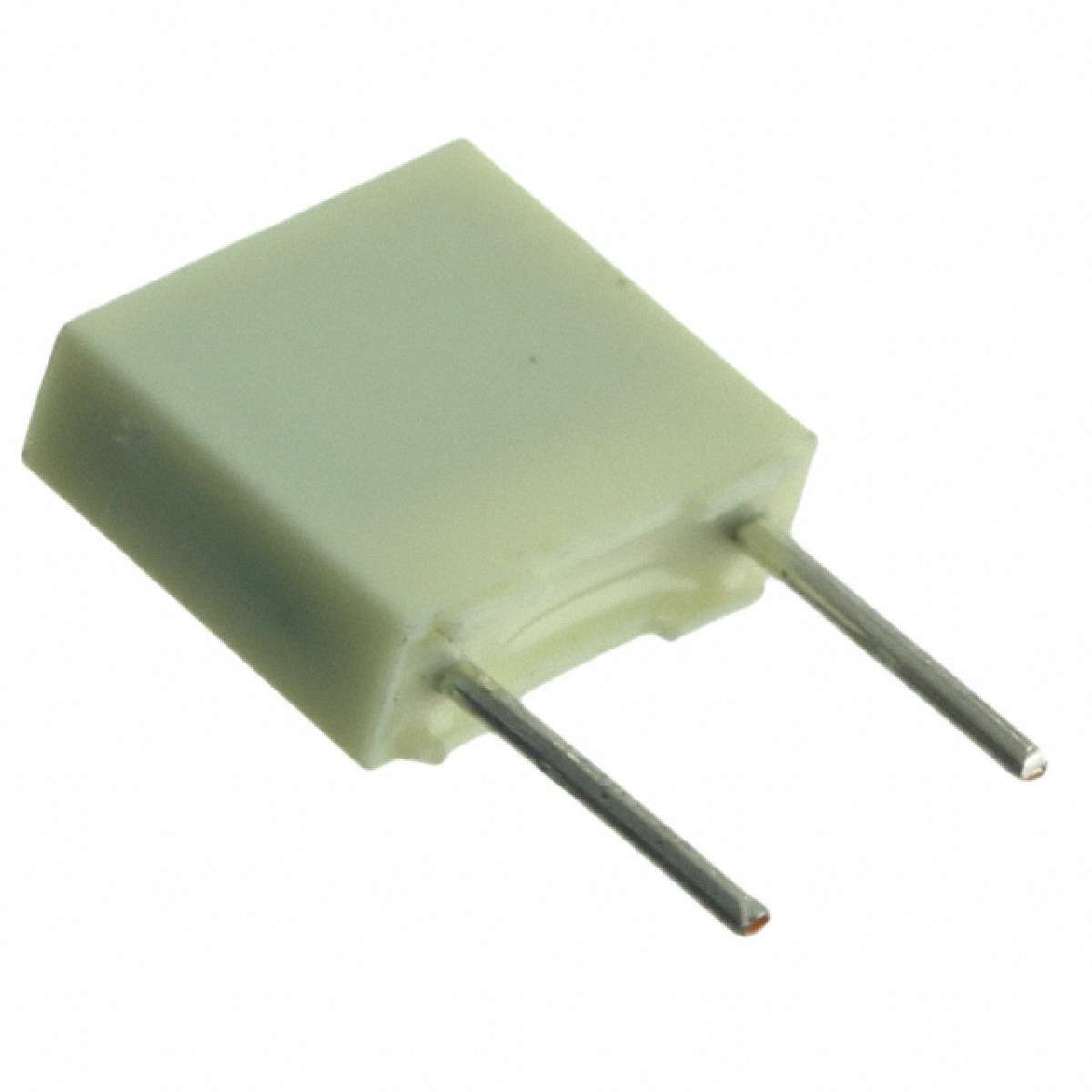

Capacitor: polyester; 1nF; 63VAC; 100VDC; Pitch: 5mm; ±5%; -55÷105°C
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial |
|---|---|
| Termination | PC Pins |
| Capacitance | 1000pF |
| Voltage Rating - DC | 100V |
| Size / Dimension | 0.283" L x 0.098" W (7.20mm x 2.50mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.260" (6.60mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±5% |
| Lead Spacing | 0.197" (5.00mm) |
| Voltage Rating - AC | 63V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| Part Status | Active |
| Manufacturer | Kemet |
| Series | R82 |
| Applications | Automotive |
| Operating Temperature | -55°C ~ 105°C |
