| QXK2G104KTPTZH | ||
|---|---|---|
|
|
||
|
||

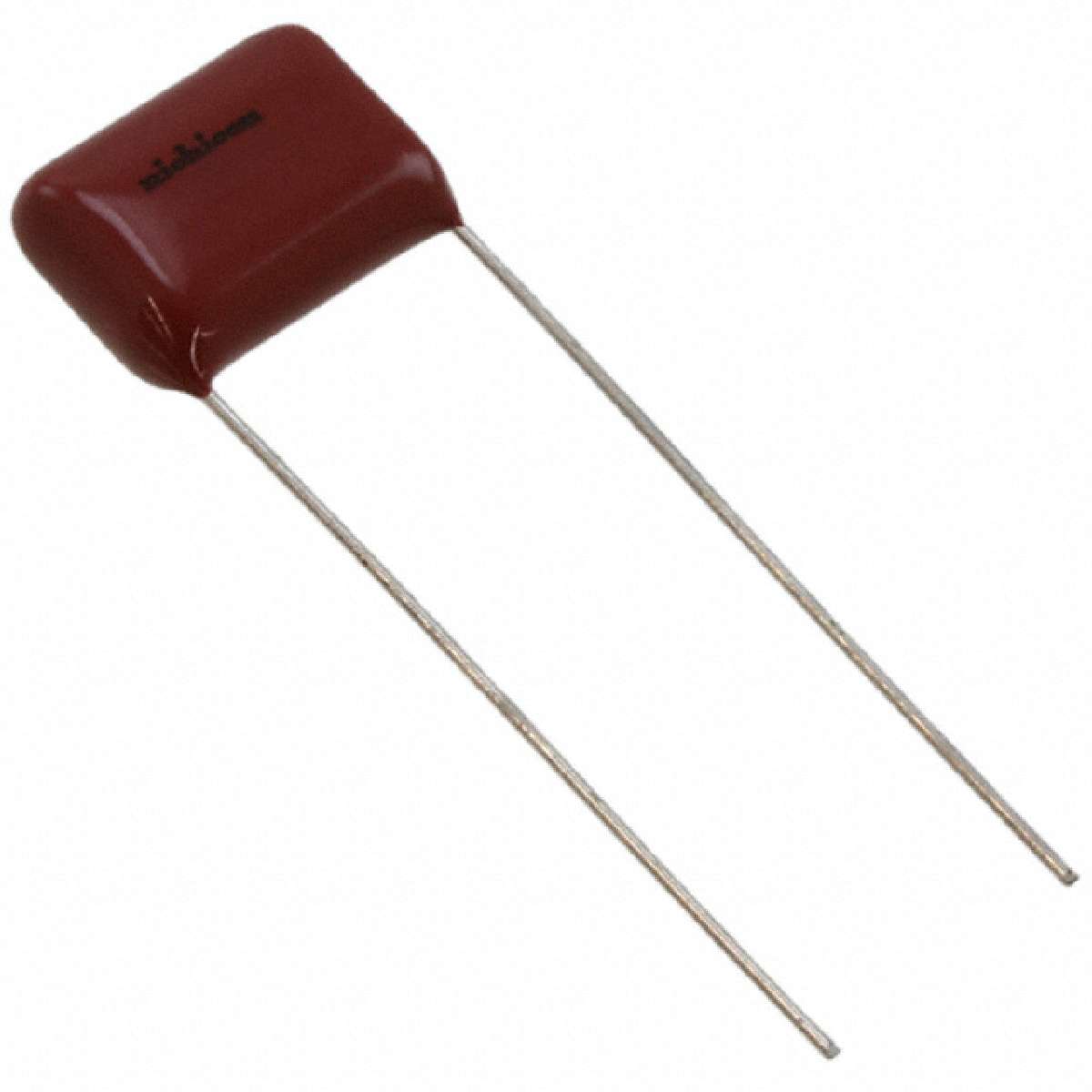

| Product description : XK Series 400 V 0.1uF ±10% LS=12.5mm Metallized Polyester Plastic Film Capacitor | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | Radial |
|---|---|
| Termination | PC Pins |
| Capacitance | 0.10µF |
| Voltage Rating - DC | 400V |
| Size / Dimension | 0.610" L x 0.287" W (15.50mm x 7.30mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.508" (12.90mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±10% |
| Lead Spacing | 0.492" (12.50mm) |
| Voltage Rating - AC | 200V |
| Dielectric Material | Polyester, Metallized |
| Part Status | Active |
| Manufacturer | Nichicon |
| Series | QXK-ZH |
| Applications | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
