| QSE773 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

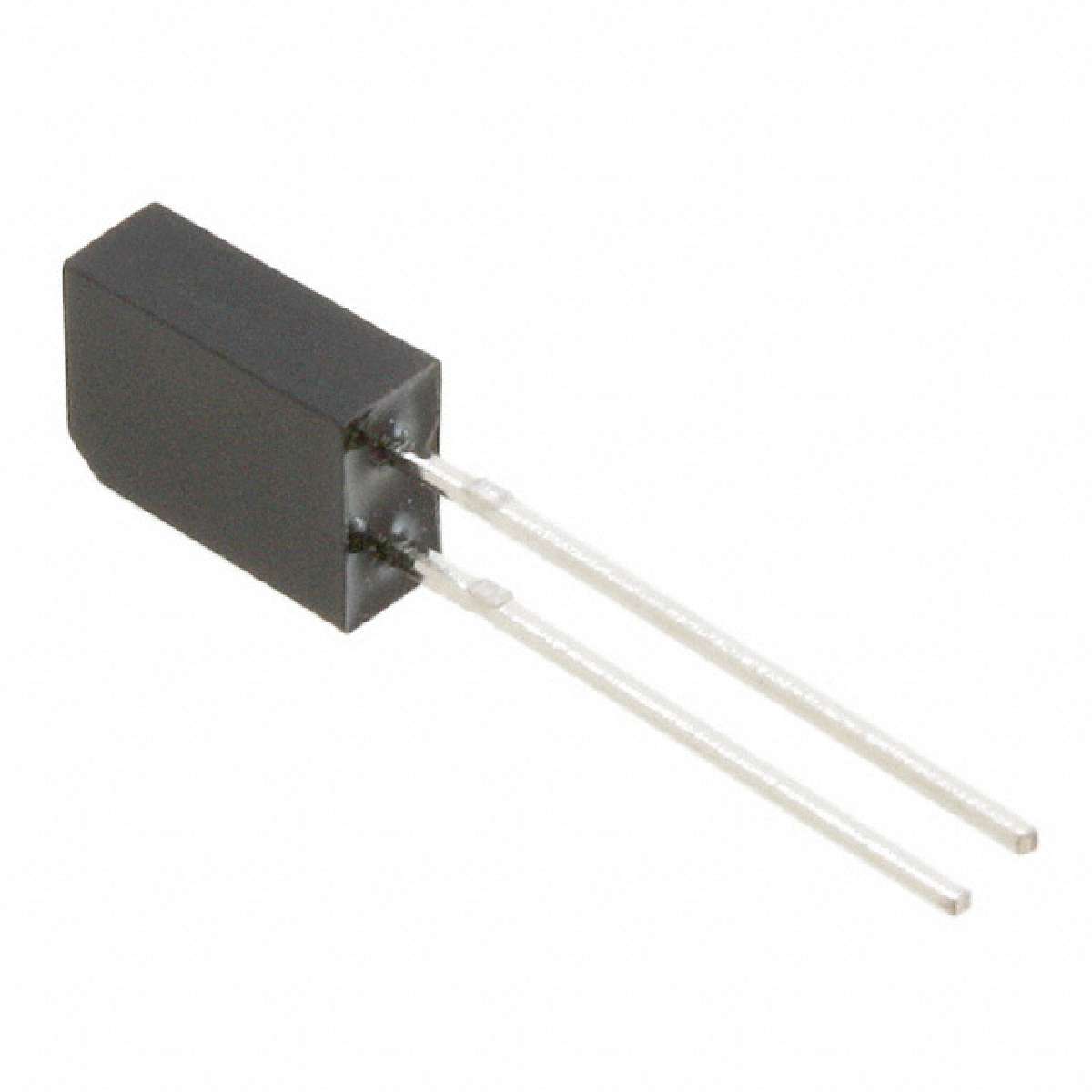

QSE773 Series 940 nm 150 mW Through Hole Sidelooker Pin Photodiode
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 2.95 mm |
|---|---|
| Product: | PIN Photodiodes |
| Packaging: | Bulk |
| Manufacturer: | Fairchild Semiconductor |
| Vr - Reverse Voltage: | 32 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Fairchild Semiconductor |
| Half Intensity Angle Degrees: | 60 deg |
| Product Category: | Photodiodes |
| Dark Current: | 30 nA |
| Unit Weight: | 0.009556 oz |
| Maximum Operating Temperature: | + 85 C |
| Fall Time: | 50 ns |
| Photocurrent: | 30 uA |
| Length: | 5.46 mm |
| Peak Wavelength: | 940 nm |
| Pd - Power Dissipation: | 150 mW |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Package / Case: | Side Looker |
| Height: | 7.9 mm |
| Rise Time: | 50 ns |
| Mounting Style: | Through Hole |
| ECCN | EAR99 |
