QED234

ACTIVE EAR99

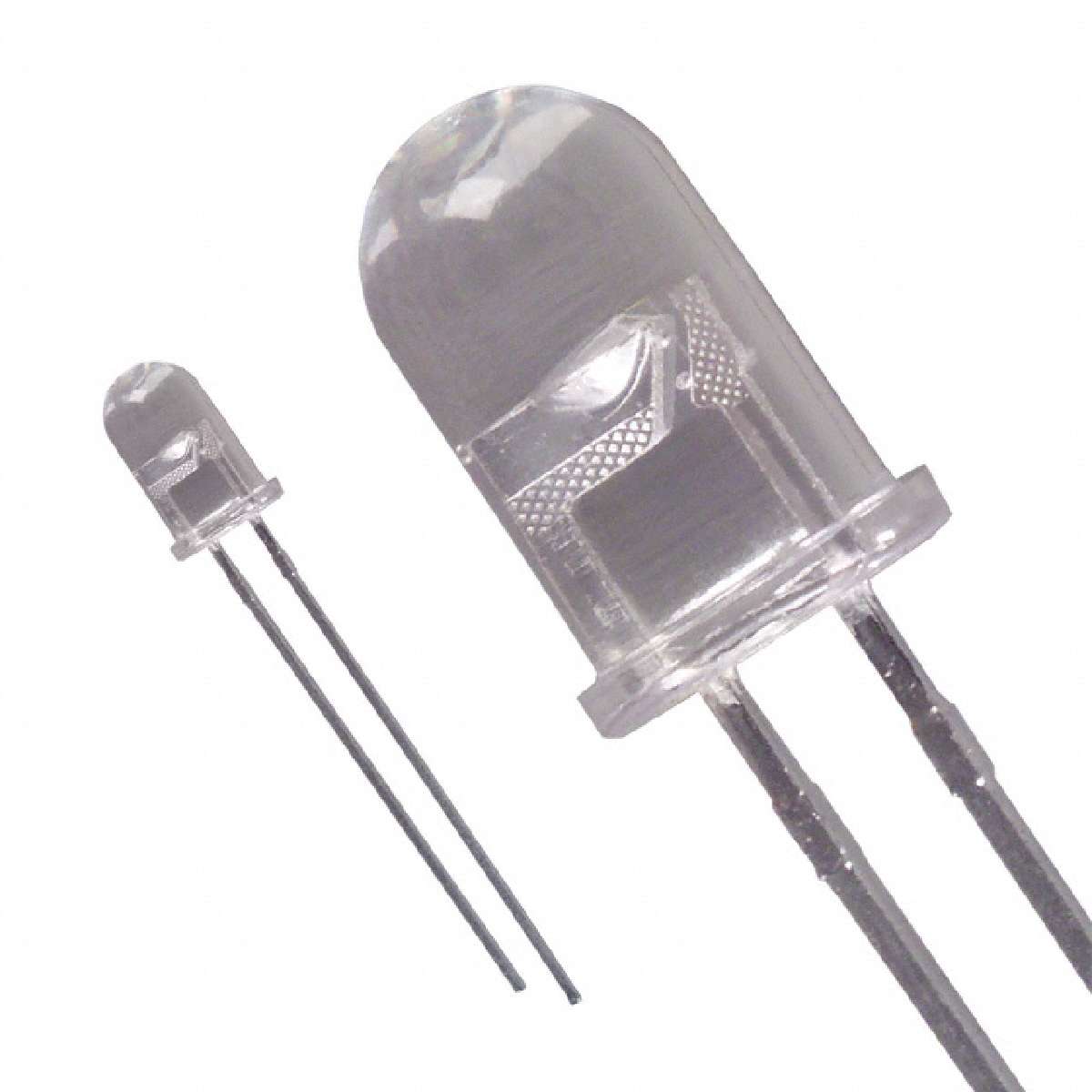

Product description : 940 nm 40° Emission Angle Clear Untinted GaAs Plastic Infrared Emitting Diode
SPQ：250
Datasheet : QED234.pdf

Viewing Angle:	40 deg
Beam Angle:	+/- 20
Power Rating:	200 mW
Package / Case:	T-1 3/4
Height:	8.77 mm
Lens Dimensions:	4.95 mm x 4.95 mm x 7.75 mm
Unit Weight:	0.010032 oz
Vf - Forward Voltage:	1.6 V
If - Forward Current:	100 mA
Vr - Reverse Voltage:	5 V
Brand:	Fairchild Semiconductor
RoHS:	Details
Wavelength:	940 nm
ECCN	EAR99
Packaging:	Bulk
Width:	6.1 mm
Minimum Operating Temperature:	- 40 C
Illumination Color:	Infrared
Lens Shape:	Circular
Mounting Style:	Through Hole
Radiant Intensity:	27 mW/sr
Length:	6.1 mm
Manufacturer:	Fairchild Semiconductor
Factory Pack Quantity:	250
Part # Aliases:	QED234_NL
Product Category:	Infrared Emitters
Maximum Operating Temperature:	+ 100 C

Datasheet： QED234.pdf
